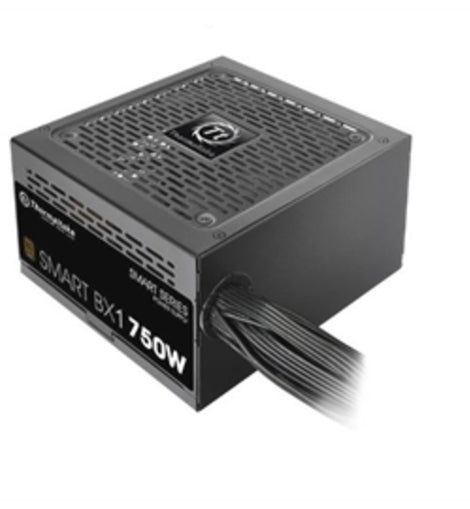

Thermaltake Power Supply PS-SPD-0750NNFABU-1 Smart BX1 80+ Bronze 750W Non-modular Black Retail
Smart BX1 750W
Built to deliver 80 PLUS Bronze with 88% power efficiency, the Smart BX1 series is available in 450W - 750W models. Constructed with a 120mm hydraulic bearing fan, Japanese main capacitors and other premium components to help deliver a continuous and stable power output at 40?, near silent operation and reliable performance. With an ample 5-year warranty, the Smart BX1 is able to satisfy the market, where value-oriented users are looking for a new power supply with all the latest features.
Ultra Quiet 120mm Hydraulic Bearing Fan
Featuring a 120mm hydraulic bearing fan with intelligent RPM controls to help guarantee superior cooling performance and near silent operation.
Low Ripple Noise
All ripples are lower than 80mV on +12V, and lower than 40mV on +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components, such as high-end graphics cards, to function reliably for longer.
Premium Japanese Main Capacitor
Providing great durability as well as offering the highest stability, while remaining reliable.
High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable supply to other PC components.
Multiple Connectors
Soft black cables come with sleeve cabling, designed to make cable installation an easy task while fully powering the system at optimal voltages
Model
SPD-750AH2NKB
Type
ATX 12V v2.3 and EPS v2.92
Max. Output Capacity
750W
Peak Output Capacity
900W
Color
Black
PFC Power Factor Correction
Active PFC
Power Good Signal
100-500 msec
Hold Up Time
> 16msec at 70% of full load
Input current
12A max.
Input Frequency Range
50Hz - 60Hz
Input Voltage
100V - 240V-
Operating Temperature
5oC to + 40oC
Operating Humidity
20% to 85%, non-condensing
Storage Temperature
-40oC to + 55oC
Storage Humidity
10% to 95%, non-condensing
Cooling System
12cm Hydraulic bearing fan
Efficiency
Meet 80 PLUSBronze at 115Vac input.
MTBF
100,000 hrs minimum
Safety Approval
CE/CB/TUV/ UL/ FCC/ BSMI
PCI-E 6+2pin
4
Built to deliver 80 PLUS Bronze with 88% power efficiency, the Smart BX1 series is available in 450W - 750W models. Constructed with a 120mm hydraulic bearing fan, Japanese main capacitors and other premium components to help deliver a continuous and stable power output at 40?, near silent operation and reliable performance. With an ample 5-year warranty, the Smart BX1 is able to satisfy the market, where value-oriented users are looking for a new power supply with all the latest features.
Ultra Quiet 120mm Hydraulic Bearing Fan
Featuring a 120mm hydraulic bearing fan with intelligent RPM controls to help guarantee superior cooling performance and near silent operation.
Low Ripple Noise
All ripples are lower than 80mV on +12V, and lower than 40mV on +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components, such as high-end graphics cards, to function reliably for longer.
Premium Japanese Main Capacitor
Providing great durability as well as offering the highest stability, while remaining reliable.
High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable supply to other PC components.
Multiple Connectors
Soft black cables come with sleeve cabling, designed to make cable installation an easy task while fully powering the system at optimal voltages
Model
SPD-750AH2NKB
Type
ATX 12V v2.3 and EPS v2.92
Max. Output Capacity
750W
Peak Output Capacity
900W
Color
Black
PFC Power Factor Correction
Active PFC
Power Good Signal
100-500 msec
Hold Up Time
> 16msec at 70% of full load
Input current
12A max.
Input Frequency Range
50Hz - 60Hz
Input Voltage
100V - 240V-
Operating Temperature
5oC to + 40oC
Operating Humidity
20% to 85%, non-condensing
Storage Temperature
-40oC to + 55oC
Storage Humidity
10% to 95%, non-condensing
Cooling System
12cm Hydraulic bearing fan
Efficiency
Meet 80 PLUSBronze at 115Vac input.
MTBF
100,000 hrs minimum
Safety Approval
CE/CB/TUV/ UL/ FCC/ BSMI
PCI-E 6+2pin
4
