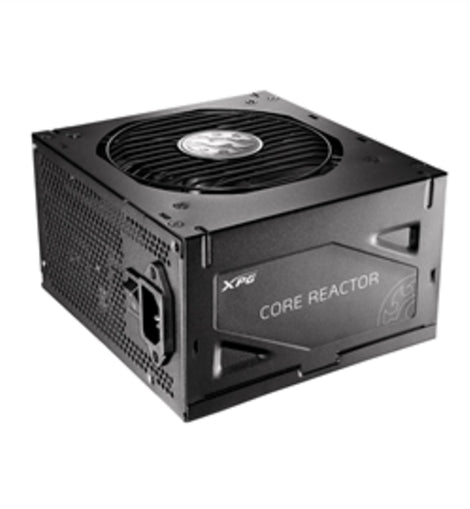

XPG Power Supply COREREACTOR750G-BKCUS CORE REACTOR Modular PS 80+ Gold 750W Retail
The XPG CORE REACTOR is a modular, 80 Plus Gold power supply unit equipped with 100% Japanese capacitors. Combined with Line Level Control (LLC) resonant topology, it is power-efficient, reliable and makes creating a tidy build easy.
80 Plus Gold Certified
The 80 Plus Gold certified XPG CORE REACTOR gives you 90% efficiency at 50% load. It comes in 650W, 750W, and 850W for different needs.
Intelligent Fan-Curve
Intelligent fan-curve provides near-quiet operations, even when at full power load. The fan control starts at a low 3.3v, 660rpm +- 10%, and remains at this speed until surpassing 50% load, prolonging the lifespan of the fan and the power supply unit.
Compact and Modular
The XPG CORE REACTOR is compact in size due to the combination of high-quality components, a well-thought-out layout, and a new manufacturing process. What's more, its modular design reduces cable clutter and simplifies system building.
Premium Japanese Capacitators
Equipped with All 105?C Japanese capacitors, the XPG CORE REACTOR provides you with reliability and stability. The XPG CORE REACTOR's DC voltage is maintained within +-2% and reduces ripple and noise by up to 35% for enhanced dependability.
Industrial-Grade Protection
The XPG CORE REACTOR comes with an array of protection mechanisms for peace of mind and backed by a 10-year warranty.
Over Current Protection (OCP)
Over Voltage Protection (OVP)
Under Voltage Protection (UVP)
Over Power Protection (OPP)
Short Circuit Protection (SCP)
Over Temperature Protection (OTP)
No Load Operation (NLO)
Surge and Inrush Protection (SIP)
80 PLUS Rating
GOLD
ATX Version
Intel 1.42
Protections
OCP / OVP / UVP / OPP / SCP / OTP / NLO / SIP
Certification
CB / TUV / cTUVus / CCC / CE / FCC / BSMI / RCM / EAC
PFC
0.99
Input Voltage
100V-240V
Input Current
10A-5A
Input Frequency
47Hz-63Hz
Operating Temperature
50o
Fan Size
12cm
Fan Bearing
FDB
Fan Speed
2400
Noise Level at 20%
11.2dB(A)
Noise Level at 50%
750W : 11.3dB(A)
Noise Level at 100%
750W : 22.7dB(A)
MTBF
100K hours at full load
ATX 24 Pin Connector
1
EPS 4+4 Pin Connector
750W : 2
EPS 8 Pin Connector
750W : Not Applicable
SATA Connector
12
80 Plus Gold Certified
The 80 Plus Gold certified XPG CORE REACTOR gives you 90% efficiency at 50% load. It comes in 650W, 750W, and 850W for different needs.
Intelligent Fan-Curve
Intelligent fan-curve provides near-quiet operations, even when at full power load. The fan control starts at a low 3.3v, 660rpm +- 10%, and remains at this speed until surpassing 50% load, prolonging the lifespan of the fan and the power supply unit.
Compact and Modular
The XPG CORE REACTOR is compact in size due to the combination of high-quality components, a well-thought-out layout, and a new manufacturing process. What's more, its modular design reduces cable clutter and simplifies system building.
Premium Japanese Capacitators
Equipped with All 105?C Japanese capacitors, the XPG CORE REACTOR provides you with reliability and stability. The XPG CORE REACTOR's DC voltage is maintained within +-2% and reduces ripple and noise by up to 35% for enhanced dependability.
Industrial-Grade Protection
The XPG CORE REACTOR comes with an array of protection mechanisms for peace of mind and backed by a 10-year warranty.
Over Current Protection (OCP)
Over Voltage Protection (OVP)
Under Voltage Protection (UVP)
Over Power Protection (OPP)
Short Circuit Protection (SCP)
Over Temperature Protection (OTP)
No Load Operation (NLO)
Surge and Inrush Protection (SIP)
80 PLUS Rating
GOLD
ATX Version
Intel 1.42
Protections
OCP / OVP / UVP / OPP / SCP / OTP / NLO / SIP
Certification
CB / TUV / cTUVus / CCC / CE / FCC / BSMI / RCM / EAC
PFC
0.99
Input Voltage
100V-240V
Input Current
10A-5A
Input Frequency
47Hz-63Hz
Operating Temperature
50o
Fan Size
12cm
Fan Bearing
FDB
Fan Speed
2400
Noise Level at 20%
11.2dB(A)
Noise Level at 50%
750W : 11.3dB(A)
Noise Level at 100%
750W : 22.7dB(A)
MTBF
100K hours at full load
ATX 24 Pin Connector
1
EPS 4+4 Pin Connector
750W : 2
EPS 8 Pin Connector
750W : Not Applicable
SATA Connector
12
