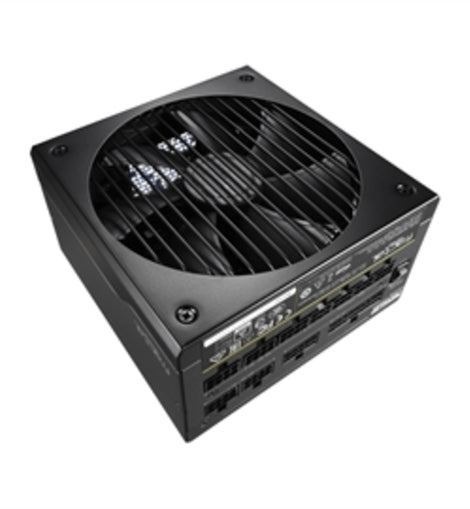

Fractal Design Power Supply FD-PSU-IONP-860P-BK-US Ion+860P 860W 80+Platinum Fully Modular Retail
The Ion+ Platinum is a high-performance fully modular PSU with whisper-quiet operation, enhanced cable flexibility and superior output quality
o UltraFlex DC wires for effortless cable-routing and connectors
o Custom-tailored 140 mm fan with exceptionally low minimum speed
o 80 PLUS(R) Platinum Efficiency for optimized electrical performance
Introducing the game-changing UltraFlex cable
Thanks to an ultra-high strand count wire and special insulation, our UltraFlex DC wire bends and twists effortlessly to fit your installation instead of fighting it.
o Combining an increased strand-count and reduced diameter of just 0.08 mm allows thinner, more flexible cables
o Specially formulated insulation increases flexibility without impacting efficiency or current capacity
o Cables flex and flow with ease for near-effortless routing and superior cable management opportunities
o Connectors bend and twist to make for easy connections in tight spaces with less resistance and strain
More power, less heat
The Ion+ Platinum is rated 80 PLUS(R) Platinum Efficiency for its ability to offer electrical output of the highest quality, while generating as little heat as possible.
o 80 PLUS(R) Platinum Efficiency for optimized electrical performance and reduced heat generation
o Outstanding output quality with tight voltage regulation and extremely low noise and ripple
o Premium Japanese 105?C capacitors provide enhanced reliability and durability
o Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Current Protection and Over Temperature Protection
Specifications
80 PLUS Certification
Platinum
Modular cables
Fully modular
Cable type
Modular 24-pin: Braided sleeve UltraFlex wire. Others: Flat UltraFlex wire
Fan type
Customized 140 mm FDB bearing Fractal Design Dynamic Series fan
Maximum operating temperature at full load
50oC
Semi-passive operation
Yes, user selectable (Zero RPM)
Sleep State Compliance
C6/C7
Capacitors
Japanese
Protection features
Over voltage protection. Under voltage protection. Over power protection. Short circuit protection. Over current protection. Over temperature protection
Approvals and Certifications
CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
Life expectancy (MTBF) at max output load
100,000 hours
Input voltage
100-240V AC
Input frequency
50-60 Hz
Input current
10A/5A
Number of 12V rails
1
PSU specification compliance
ATX12V 2.4 / EPS12V 2.92
Standby efficiency
ErP 2013 (<0.45W at 230 VAC, 45 mA load on +5Vsb)
Connectors
ATX 24-pin
1
ATX12V 4+4 pin / EPS12V 8-pin
2
PCIe 6+2 pin
6
SATA
10
Peripheral
4
Cable configuration (length between connectors)
ATX 24-pin
600 mm
ATX12V 4+4 pin
700 mm
EPS12V 8-pin
600 mm
PCIe 6+2 pin
550+120 mm x2
SATA
400+120+120+120 mm and 650+120 mm
Peripheral
400+120+120+120
DC output
3.3 V
22A
5 V
22A
3.3 V and 5 V combined
120W
12 V
71.6 A
-12 V
0.3A
5 V Standby (+5 Vsb)
3A
Total Power
860 W
Other
Package content
Ion+ PSU with protective bag, Modular cables in a convenient storage bag, Screw pack with Velcro cable ties, AC power cord (localized), User manual
Item Dimension (L"xW"xH")
13 x 9 x 5
Weight
6.55 LB
Warranty Information
10 YEARS
