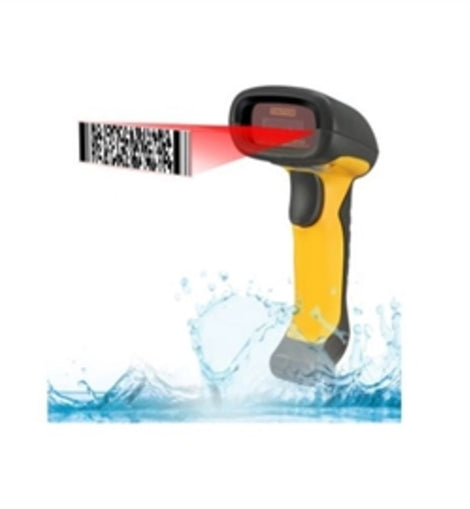

Adesso Scanner NUSCAN 5200TU NuScan 5200TU 1D and 2D USB Barcode Scanner Retail
Antimicrobial
The Nuscan 5200TU is made with antimicrobial material which prevents the growth of harmful bacteria and protects against the buildup germs.
Waterproof
IP67 Rated. Sealed with a silicone plastic material, this scanner is 100% waterproof and can be cleaned with soap and water or other liquids cleaners. Ranked as a IP67 Waterproof Standard, this device can withstand being submerged in water for up to 30 min up to a depth of 3 feet.
Drop Protection
With its rugged design and durable silicone plastic material, the Nuscan 5200TU is less likely to become damaged due to accidental drops from up to 20 feet.
2D and 1D Scanning Engine
Easily and instantly read 2-dimensional barcode symbologies such as the most common PDF 417, QR, Data Matrix, and micro QR Code. 1D barcode symbologies are supported as well, making the Nuscan 5200TU truly reliable
Superior Scanning Performance
The 24 inches per second (IPS) motion tolerance and the innovative high pixels CMOS engine offer fast and accurate scanning results.
Imager:
640 x 480 CMOS
Light Source:
650 +/- 10 nm visible red LED and White LED
Depth of Field:
0-12 inches (at20mil EAN-13, PC 100%)
Scan Angle:
Roll: +/-50o, Pitch: +/-45o, Yaw: +/-360o
Motion Tolerance:
24 inches per second (IPS)
Minimum Bar Width (1D):
5 mil/0.127 mm at PCS 90%, Code 39.
Minimum Bar Width (2D):
10 mil/0.254 mm at PCS 80%, Data Matrix.
Print Contrast:
PCS 30% code 39 at 5mil
Indicators (LED):
Green LED
Alert Operation:
Programmable Beeper Tone
Input Voltage:
5VDC +/- 5%
Operating Current:
220 +/- 5% mA
Cable:
6 ft (1.83m)
Operating Temperature:
-20oC to 50oC
Storage Temperature:
-40oC to 70oC
Humidity:
5% to 95% (non-condensing)
Light Levels:
Max 100,000 lux
Shock:
Withstanding 7m freefall drops
Supported Symbologies
UPC-A/E
EAN13/8
Code 128
GS1-128
Code 39(Plain and Full ASCII)
Code 93
Code 11
Code 25(ITF/Industrial/Matrix/IATA Standard)
Codabar,
MSI/MSI Plessey
GS1 DataBar
Item Dimension (L inchxW inchxH inch)
9 x 5 x 4
Weight
2.00 lb
Warranty Information
1 year
The Nuscan 5200TU is made with antimicrobial material which prevents the growth of harmful bacteria and protects against the buildup germs.
Waterproof
IP67 Rated. Sealed with a silicone plastic material, this scanner is 100% waterproof and can be cleaned with soap and water or other liquids cleaners. Ranked as a IP67 Waterproof Standard, this device can withstand being submerged in water for up to 30 min up to a depth of 3 feet.
Drop Protection
With its rugged design and durable silicone plastic material, the Nuscan 5200TU is less likely to become damaged due to accidental drops from up to 20 feet.
2D and 1D Scanning Engine
Easily and instantly read 2-dimensional barcode symbologies such as the most common PDF 417, QR, Data Matrix, and micro QR Code. 1D barcode symbologies are supported as well, making the Nuscan 5200TU truly reliable
Superior Scanning Performance
The 24 inches per second (IPS) motion tolerance and the innovative high pixels CMOS engine offer fast and accurate scanning results.
Imager:
640 x 480 CMOS
Light Source:
650 +/- 10 nm visible red LED and White LED
Depth of Field:
0-12 inches (at20mil EAN-13, PC 100%)
Scan Angle:
Roll: +/-50o, Pitch: +/-45o, Yaw: +/-360o
Motion Tolerance:
24 inches per second (IPS)
Minimum Bar Width (1D):
5 mil/0.127 mm at PCS 90%, Code 39.
Minimum Bar Width (2D):
10 mil/0.254 mm at PCS 80%, Data Matrix.
Print Contrast:
PCS 30% code 39 at 5mil
Indicators (LED):
Green LED
Alert Operation:
Programmable Beeper Tone
Input Voltage:
5VDC +/- 5%
Operating Current:
220 +/- 5% mA
Cable:
6 ft (1.83m)
Operating Temperature:
-20oC to 50oC
Storage Temperature:
-40oC to 70oC
Humidity:
5% to 95% (non-condensing)
Light Levels:
Max 100,000 lux
Shock:
Withstanding 7m freefall drops
Supported Symbologies
UPC-A/E
EAN13/8
Code 128
GS1-128
Code 39(Plain and Full ASCII)
Code 93
Code 11
Code 25(ITF/Industrial/Matrix/IATA Standard)
Codabar,
MSI/MSI Plessey
GS1 DataBar
Item Dimension (L inchxW inchxH inch)
9 x 5 x 4
Weight
2.00 lb
Warranty Information
1 year
