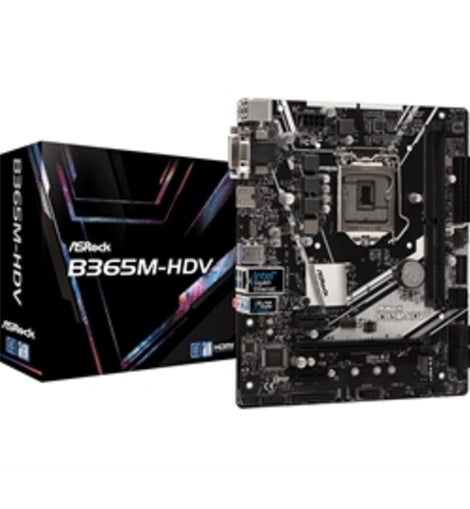

ASRock Motherboard B365M-HDV S1151 B365 64GB DDR4 PCIE USB/RJ-45/D-Sub mATX W10 Retail
Ultra M.2 32 Gb/s (PCIe Gen3 x4 and SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock's U.2 Kit for installing some of the world's fastest U.2 PCIe Gen3 x4 SSDs.
Intel(R) LAN
Intel(R) LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
Intel(R) Optane(TM) Memory Ready
Supports Intel(R) Optane(TM) memory technology and Intel(R) Optane(TM) storage technology that redefines a new standard of high performance and responsiveness.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Triple Monitor
Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.
Unique Feature
ASRock Super Alloy
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Ultra M.2 (PCIe Gen3 x4 and SATA3)
ASRock Full Spike Protection (for USB, Audio, LAN Ports)
ASRock Live Update and APP Shop
CPU
- Supports 9th and 8th Gen Intel Core Processors (Socket 1151)
- Supports CPU up to 95W
- Supports Intel Turbo Boost 2.0 Technology
Chipset
- Intel B365
Memory
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 32GB
- Supports Intel Extreme Memory Profile (XMP) 2.0
- 15 mu Gold Contact in DIMM Slots
Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU, GT_CPU, DRAM, PCH 1.05V Voltage Multi-adjustment
Graphics
- Supports Intel UHD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics
- DirectX 12
- HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1
- Three graphics output options: D-Sub, DVI-D and HDMI
- Supports Triple Monitor
- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) at 30Hz
- Supports DVI-D with max. resolution up to 1920x1200 at 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 at 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
- Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port
Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated
Audio
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- Supports Surge Protection
- ELNA Audio Caps
To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel I219V
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Slots
- 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)
- 2 x PCI Express 3.0 x1 Slots (Flexible PCIe)
Supports NVMe SSD as boot disks
Storage
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17), NCQ, AHCI and Hot Plug
- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
Supports Intel Optane Technology
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
Connector
- 1 x Print Port Header
- 1 x COM Port Header
- 1 x TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)
- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 4 x USB 3.1 Gen1 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
- ASRock A-Tuning
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
These utilities can be downloaded from ASRock Live Update APP Shop.
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket
Hardware Monitor
- Temperature Sensing: CPU, Chassis/Water Pump Fans
- Fan Tachometer: CPU, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.05V
Form Factor
- Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm
- Solid Capacitor design
OS
- Microsoft Windows 10 64-bit
Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
Item Dimension (L"xW"xH")
11 x 9 x 3
Weight
3 lbs
Warranty Information
3 years
