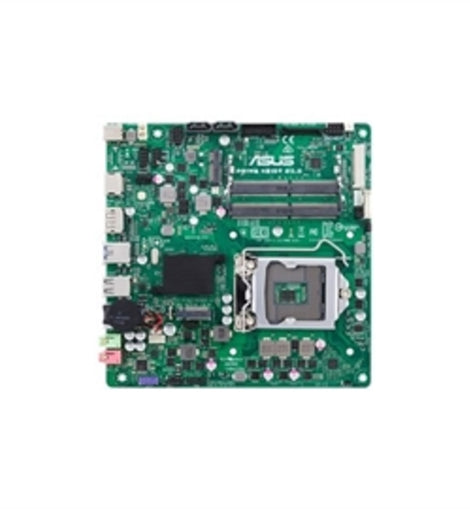

ASUS Motherboard PRIME H310T R2.0/CSM Core i7/i5/i3 LGA1151 H310 Max.32GB DDR4 Thin Mini ITX Retail
o ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
o Dedicated LPC header and debug card with LCD display for faster troubleshooting
o Event log for capturing and managing detailed system information
o Innovative moisture-resistant coating to protect the motherboard from harsh environments
o Commercial BIOS kit to make customization faster and more efficient
ASUS is the world's biggest and best-known motherboard brand. Famous for user-focused Designed Thinking, we understand the importance of security, stability and easy manageability for your business. Our latest lineup of business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability, and an improved management suite for easier customization. Combined with our world-class after-sales service and guaranteed long-term availability to maximize your investment over the product lifecycle, ASUS business motherboards provide a high-quality, TCO-optimized solution for your business computing needs.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center - server-grade IT management software.
Internationally Certified Business Motherboard
ASUS business motherboards are enterprise proven with leading quality that exceeds industry standards. Certified by multiple international safety and environmental organizations, including UL and Blue Angel, ASUS business motherboards provide a safe, secure and sustainable solution, making them the ideal choice for your business.
CPU
Intel for 8th Generation CoreTM CoreTM i7/CoreTM i5/CoreTM i3/Pentium/Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
Supports CPU up to 65 W
(The Intel Turbo Boost Technology 2.0 support depends on the CPU types. )
Chipset
Intel H310
Memory
2 x SO-DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supports Intel Extreme Memory Profile (XMP)
(Hyper DIMM support is subject to the physical characteristics of individual CPUs.)
( The maximum memory frequency supported varies by processor. )
( DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel 8th Gen. 6-core or higher processors.)
Graphic
Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : HDMI/LVDS/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 at 24 Hz / 2560 x 1600 at 60 Hz
- Supports LVDS with max. resolution 1920 x 1200 at 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 at 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel InTruTM 3D, Quick Sync Video, Clear Video HD Technology, InsiderTM
Supports up to 2 displays simultaneously
Expansion Slots
1 x M.2 Socket 1 with E key, type 2230 for WIFI/BT devices support PCIE/USB mode
Storage
Intel H310 Chipset :
1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (both SATA and PCIE mode)
2 x SATA 6Gb/s port(s)
LAN
Realtek RTL8111H, 1 x Gigabit LAN Controller(s)
Audio
Realtek ALC887 8-Channel High Definition Audio CODEC 1
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
USB Ports
Intel H310 Chipset :
4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board)
Intel H310 Chipset :
4 x USB 2.0 port(s) (2 at back panel, black, 2 at mid-board)
GL852G USB Hub :
3 x USB 2.0 port(s) (Type-A, 3 at mid-board)
Special Features
Bespoke Motherboard Design and Business Focused Features :
- Overcurrent Protection: Short circuit prevention, protects your system
- ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen
- ASUS Event Log: Record activities of system and provides information in BIOS
- ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design
- Anti-Moisture: Against moisture and corrosion - prolonging the life of your motherboard
- 24/7 Reliability: Tested under temperature up to 45oC and humidity up to 80% to ensure handle diverse environment
Easy Assembly Design:
- Fixed-position and Color-coded Connectors: Enable easy identification and cable-matching, speeding up the production line
- Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damage
Digi+VRM
Operating System Support
Windows 10
Back I/O Ports
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1 (blue)
2 x USB 2.0
2 x Audio jack(s)
1 x DC power connector(s)
Internal I/O Ports
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x USB 2.0 1-port connector(s) support(s) additional 1 USB 2.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 1 with E key, type 2230 for WIFI/BT devices support PCIE/USB mode
1 x M.2 Socket 3 with M key, type 2260/2280 storage devices support (SATA and PCIE x2 mode)
1 x COM port(s) connector(s)
2 x SATA 6Gb/s connector(s)
1 x SATA power connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Chassis Intrusion connector(s)
1 x Clear CMOS jumper(s)
1 x 2-pin internal DC power connector
1 x Stereo speaker connector
1 x DMIC header
1 x Backlight inverter voltage selection header
1 x FPD brightness header
1 x Panel voltage selection header
1 x Panel off header
1 x LVDS connector(s)
1 x 14-1 pin TPM connector
1 x System panel connector
1 x Speaker connector
Accessories
Users manual
I/O Shield
Thin Mini ITX I/O Shield
1 x SATA power cable
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ErP Ready, ASUS Self- Recovering BIOS, ASUS Event log, ASUS Commercial Kit
Manageability
WfM 2.0, DMI 2.0, WOL by PME
Support Disc
Drivers
ASUS Utilities
ASUS Watch dog timer
ASUS Commercial BIOS Kits
Anti-virus software (OEM version)
Form Factor
Thin Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
Note
1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
2: Use with amplified speaker is suggested.
Item Dimension (L"xW"xH")
9 x 8 x 3
Weight
2.00 LB
Warranty Information
3 Years
