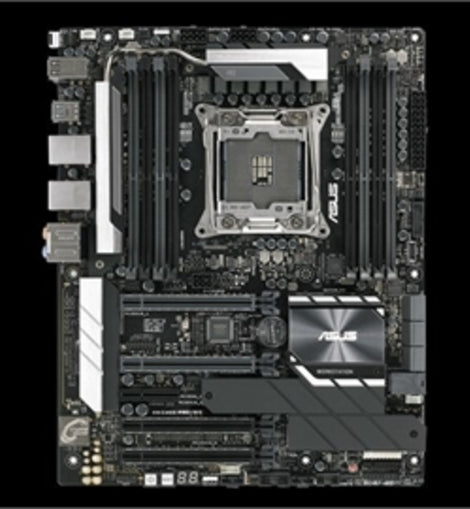

Asus Motherboard WS C422 PRO/SE ATX Xeon C422 8DIMM 512GB 5PCIE Retail
Intel(R) LGA2066 ATX motherboard with complete IT infrastructure management supporting Intel(R) Xeon(R) processor and ECC memory
Powered by Intel(R) Xeon(R) W processor with ECC memory
ASUS Control Center - A software utility that provides convenient, secure and cost-saving centralized IT management for small and medium businesses
Server-grade design with built-in dual Intel Gigabit LAN
Next-gen transfer speeds - Up to 32Gbps dual M.2 and U.2, plus up to 10Gbps USB 3.1 Type-A and Type-C connections
Ultimate graphics power with 2/3-Way NVIDIA(R) SLITM and AMD(R) Crossfire X(TM)
Ultra-efficient VRM heatsink - Metal fin array connected to large surface area via a heatpipe tames C422 thermals to enable unthrottled performance
CPU
Intel Socket 2066 Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Max Technology 2.0
The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset
Build in Intel C422
Memory
8 x DIMM, Max. 512GB, DDR4 2666/2400/2133 MHz RDIMM, LR-DIMM Memory 1
Quad Channel Memory Architecture
Multi-GPU Support
Supports NVIDIA 3-Way SLITM Technology
Supports AMD 3-Way CrossFireXTM Technology
Expansion Slots
48-Lane CPU-
2 x PCIe 3.0 x16 (x16 mode)
2 x PCIe 3.0 x16 (Single at x16, dual at x8/x8)
1 x PCIe 3.0 x4 (x4 mode)
Storage
1 x M.2 x4 Socket 32, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 x4 Socket 33, with M key, type 2242/2260/2280 storage devices support (both SATA PCIE mode)
1 x U.2 connector2
Support Raid 0, 1, 10
Intel Rapid Storage Technology Enterprise supports
Intel Virtual RAID (VROC) support for CPU RAID
LAN
Intel I210-AT, 2 x Gigabit LAN Controller(s)
Audio
Realtek ALC S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
- Power pre-regulator reduces power input noise to ensure consistent performance
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output (Line-out at rear) and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192kHz playback 4
Audio Feature :
- DTS Connect
- DTS Headphone:X
- Optical S/PDIF out port(s) at back panel
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
Separate layer for left and right track, ensuring both sound deliver equal quality
USB Ports
Intel C422 Chipset :
6 x USB 3.1 Gen 1 port(s) (4 at back panel, , 2 at mid-board)
Intel C422 Chipset :
6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)
ASMedia USB 3.1 Gen 2 controller :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-C TM)
ASMedia USB 3.1 Gen 2 controller :
1 x USB 3.1 Gen 2 front panel connector port(s)
Special Features
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
AURA :
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
- Aura Addressable Strip Header(s)
ASUS Exclusive Features :
- MemOK
- Ai Charger+
- Onboard Button : Power/Reset
- Turbo LAN
DIGI + Power Control :
- CPU Power: Digital 8-phase power design
DIGI + Power Control :
- DRAM Power: Digital 2-phase power design
ASUS Quiet Thermal Solution :
- Stylish Fanless Design with M.2 Heat-sink solution
ASUS EZ DIY :
- ASUS USB BIOS Flashback
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2)
Asus Control Center (ACC) IT management software supported
Intel Virtual RAID on CPU (VROC) ready
Thunderbolt 3 support
Back I/O Ports
2 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 Type-A + USB Type-C TM
4 x USB 3.1 Gen 1 (blue)
4 x USB 2.0 (one port can be switched to USB BIOS Flashback)
1 x Optical S/PDIF out
1 x USB BIOS Flashback Button(s)
1 x 8-channel Audio I/O
Internal I/O Ports
1 x Aura Addressable Strip Header(s)
1 x AAFP connector
1 x Aura RGB Strip Headers
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x VROC_HW_Key
2 x CPU Fan connector(s)
1 x AIO_PUMP connector
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
2 x 8-pin ATX 12V Power connector(s)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x MemOK button(s)
1 x Thermal sensor connector(s)
1 x Power-on button(s)
1 x Reset button(s)
1 x Clear CMOS button(s)
1 x U.2 connector
3 x System panel connector
1 x Front fan
1 x Rear fan
1 x COM port header
1 x Aspeed VGA header
1 x USB 3.1 Gen 2 front panel connector
1 x CPU_OV jumper
1 x PUMP Fan connector
1x 6-pin ATX 12V Power connector
BIOS
CrashFree BIOS 3
EZ Flash3
F11 EZ Tuning Wizard
ASUS UEFI BIOS EZ Mode
Multi-language BIOS
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( cm x cm )
Note
1 Memory capacity supported depends on both CPU installed and Memory
2 Bandwidth is shared between M.2_2 and U.2.
3 SATA Bandwidth is shared between M.2_1 and SATA6G_1
4 Due to limitations in HAD bandwidth, 32-Bit/192kHz is not supported for 8-channel audio. 32-Bit/192kHz is only available under Windows 10
Item Dimension (L inchxW inchxH inch)
NA
Weight
3.00lb
Warranty Information
3 Years w/ 1st year ARS
