Overview

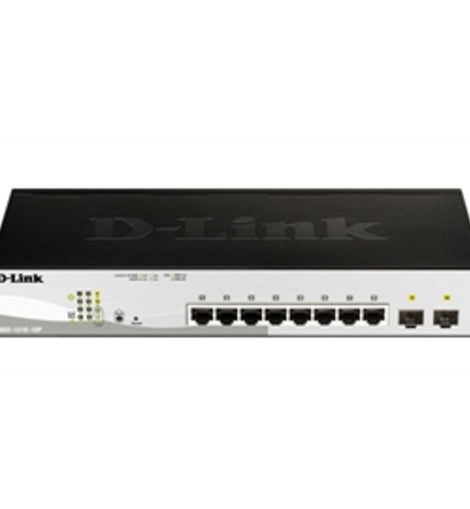

The D-Link DGS-1210 Series Smart Managed Switches are the latest generation of switches to provide increased Power over Ethernet (PoE) output, a range of physical interface types, multiple management interfaces, and advanced Layer 2 features. With all of these features combined, the DGS-1210 Series provides a cost-efficient and flexible solution for expanding any business network.

The DGS-1210 Series switches support 8, 24, or 48 10/100/1000BASE-T ports. Each switch also supports an additional 2 or 4 Gigabit SFP ports for optical connections using multimode or singlemode SFP transceivers.


PoE Support
Five of the nine models in the DGS-1210 series family support Power-over-Ethernet capabilities, simplifying deployments with IP cameras, VoIP phones, wireless access points, and other powered devices. These models include the DGS-1210-10P, DGS-1210-10MP, DGS-1210-28P, DGS-1210-28MP and DGS-1210-52MP. Using the switch's management interface, an administrator can control various PoE functions, such as remotely rebooting cameras or access points, from anywhere on the network, including over the Internet.
The switches also support time-based PoE - an option that allows administrators to set a time window that determines when each port's PoE power is turned on and off. All PoE models support the IEEE 802.3af and 802.3at standards, and each PoE power budget varies per model.



General
Hardware Version: Rev. F
10/100/1000 Ports: 8
100/1000 SFP Ports: 2
Port Standards and Functions:
- IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
- IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
- IEEE 802.3u 100BASE-FX 100 Mbps over fiber optic
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted- pair copper)
- IEEE 802.3z 1000BASE-X 1 Gbps over fiber optic
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- IEEE 802.3x Flow Control
- IEEE 802.3af/at compliance (for PoE ports on PoE models)
Network Cables: UTP Cat. 5, Cat. 5e (100 m max.)
Duplex Mode:
- Full/half-duplex for 10/100 Mbps
- Full-duplex for 1000 Mbps
Media Interface Exchange: Auto MDI/MDIX adjustment for all twisted-pair ports
Switching Capacity: DGS-1210-10P: 20 Gbps
Transmission Method: Store-and-forward
MAC Address Table: 8K entries
Static MAC Addresses: 256 entries
Max. 64 Byte Packet Fwd Rate: DGS-1210-10P: 14.88 Mpps
Packet Buffer Memory: DGS-1210-10P: 4.1 Mbits
CPU Memory: DDR3 128 MB
Flash Memory: 32 MB
Power over Ethernet (PoE)
PoE Standards: DGS-1210-10P: 802.3af (PoE) and 802.3at (PoE+)
PoE Capable Ports: DGS-1210-10P: Ports 1 - 8 (PoE+)
PoE Power Budget: DGS-1210-10P: 65 W
LEDs:
- Power per device
- Console per device
- Link/Activity/Speed per port
- PWR Max
Physical and Environmental
Power Input: DGS-1210-10P: 54.0 V DC external power adapter
Max. Power Consumption (PoE enabled) : DGS-1210-10P: 81.9W/100V, 80.6W/240V
Max. Power Consumption (PoE disabled) : DGS-1210-10P: 7.6W/100V, 7.5W/240V
Standby Power Consumption: DGS-1210-10P: 2.5 W/100V, 2.5W/240V
Acoustics: DGS-1210-10P: 0 dB(A)
Heat Dissipation: DGS-1210-10P: 279.59 BTU/hr (100 V),275.04 BTU/hr (240 V)
Fans: DGS-1210-10P: No
Operating Temperature: 23^oF to 122^oF (-5^oC to 50^oC)
Storage Temperature: -4^oF to 158^oF (-20^oC to 70^oC)
Operating Humidity: 0% to 95% relative humidity
Storage Humidity: 0% to 95% relative humidity
MTBF
DGS-1210-10P: 729,258 hours
EMI Certifications
CE Class A, VCCI Class A, FCC Class A, BSMI, CCC
Safety Certifications
CB, UL, BSMI, CCC
Software Features
L2 Features:
MAC Address Table
- 8K entries
IGMP Snooping
- IGMP v1/v2 Snooping
- IGMP v3 awareness
- Supports 256 IGMP groups
- Supports at least 64 static multicast addresses
- IGMP per VLAN
- Supports IGMP Snooping Querier
Loopback Detection
802.3ad Link Aggregation: Maximum of 8 groups/8 ports per group
LLDP
LLDP-MED
Jumbo Frame: Up to 10,000 bytes
Spanning Tree Protocol
- 802.1D STP
- 802.1W RSTP
- 802.1s MSTP
Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
Port Mirroring
- One-to-One
- Many-to-One
- Supports Mirroring for Tx/Rx/Both
Multicast Filtering
- Forwards all unregistered groups
- Filters all unregistered groups
Configurable MDI/MDIX
MLD snooping v1/v2 (256 groups)
VLAN:
802.1Q
VLAN Group
- Max. 256 static VLAN groups
Configurable VID from 1 - 4094
Asymmetric VLAN
Auto Voice VLAN
- Max. 10 user-defined OUI
- Max. 8 default OUI
Auto Surveillance VLAN
Quality of Service (QoS):
802.1p Quality of Service
8 queues per port
Queue Handling
- Strict
- Weighted Round Robin (WRR)
Bandwidth Control: Port-based (ingress/egress, min granularity 10/100/1000 is 16 Kbps)
QoS based on:
- 802.1p priority queues
- DSCP
- MAC address
- EtherType
- IP address
- Protocol type
- ToS
- IP preference
- IPv6 Traffic Class
- TCP/UDP port
L3 Features:
IP interface
- Supports 4 interfaces
IPv6 Neighbor Discovery (ND)
Static routing
- 124 IPv4 static route entries
- 50 IPv6 static route entries
Access Control List (ACL):
Max. 50 access lists
Max. 768 rules shared by IPv4, MAC, and IPv6
Each rule can only be associated with a single port
ACL based on:
MAC address:
- 802.1p priority mask
- VID mask
- Source/destination MAC address mask
- EtherType mask
- IP address:
- Source/destination IP address mask
- DSCP mask
- Protocol type mask
- TCP/UDP port number mask
IPv6 address:
- Source/destination IP address mask
- DSCP mask
- Protocol type mask
- TCP/UDP port number mask
- IPv6 traffic class mask
Security:
Broadcast/Multicast/Unicast Storm Control
D-Link Safeguard Engine
Traffic segmentation
SSH v2
TLS v1.0
DoS attack prevention
802.1X Port-based Access Control
Port Security: Supports up to 64 MAC addresses per port
ARP Spoofing Prevention: Max. 127 entries
DHCP Server Screening
IP-MAC-Port Binding (Smart Binding) :
- ARP Inspection: Max. 256 entries
- IPv4 Inspection: Max. 127 entries
- IPv6 Inspection: Max. 63 entries
- DHCP Snooping: Max. 512 entries
AAA:
802.1X Authentication:
- Supports local/RADIUS database
- Supports port-based access control
- Supports EAP, OTP, TLS, TTLS, PEAP
- Max. 128 entries when using local database
IPv6 RADIUS server
Support MD5 authentication
OAM:
Cable diagnostics
Factory reset
Management:
Web-based GUI
D-Link Network Assistant Utility
Compact CLI
Telnet Server
TFTP Client
Configurable MDI/MDIX
SNMP: Supports v1/v2c/v3
SNMP Trap
Backup/upgrade firmware
Smart Wizard
Upload/download configuration file
BootP/DHCP Client
System Log: Max. 500 log entries
SNTP
ICMP v6
IPv4/v6 Dual Stack
DHCP Auto Configuration
Time setting: SNTP
RMONv1
Trusted host
Dual image
Dual configuration
Green v3.0 Technology:
Power Saving by:
- Link Status
- Time-based PoE: PoE ports can be turned on/off by port or system through schedule
System hibernation
Port shut off
Cable length detection
MIBs:
RFC1212 Concise MIB Definitions
RFC1213 MIBII
RFC1215 MIB Traps Convention
RFC1493 Bridge MIB
RFC1157, RFC2573, RFC2575, RFC2576 SNMP MIB
RFC1442, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905, FC1906, RFC1907, RFC1908, RFC2578, RFC3418 SNMPv2 MIB
RFC271, RFC1757, RFC2819 RMON MIB
RFC2021 RMONv2 MIB
RFC1398, RFC1643, RFC1650, RFC2358, RFC2665 Ether-like MIB
RFC2674 802.1p MIB
Interface Group MIB
RFC2618 RADIUS Authentication Client MIB
RFC4022 MIB for TCP
RFC4113 MIB for UDP
RFC2389 MIB for Diffserv.
RFC2620 RADIUS Accounting Client MIB
Private MIB
PoE MIB
DDP MIB
LLDP-MED MIB
RFC Standards:
RFC791 IP
RFC768 UDP
RFC793 TCP
RFC792 ICMPv4
RFC2463, RFC4443 ICMPv6
RFC826 ARP
RFC1321, RFC2284, RFC2865, RFC2716, RFC3580 Extensible Authentication Protocol (EAP)
RFC2573 SNMP Applications
RFC2461, RFC4861 Neighbor Discovery for IPv6
RFC2462, RFC4862 IPv6 Stateless Address Auto-configuration (SLAAC)
RFC2464 IPv6 over Ethernet and definition
RFC4291 IPv6 Addressing Architecture
RFC2893, RFC4213 IPv4/IPv6 dual stack function
Ordering Information: DGS-1210-10P 8 10/100/1000BASE-T PoE and 2 1G SFP Ports L2+ Smart Managed Switch, 65W PoE Budget
Optional 1 Gbps SFP Transceivers:
DGS-712 1000BASE-T SFP Transceiver
DEM-310GT 1000BASE-LX SFP Transceiver, Single-mode
DEM-311GT 1000BASE-SX SFP Transceiver, Multimode
Item Dimension ( L inch x W inch x H inch)
16 x 11 x 4
Weight
6.05 lb
Warranty Information
Limited Lifetime
