DJI Drone Accessory CP.VL.00000013.01 2x5" 38401080 Goggles Racing Edition(NA and TW) Retail

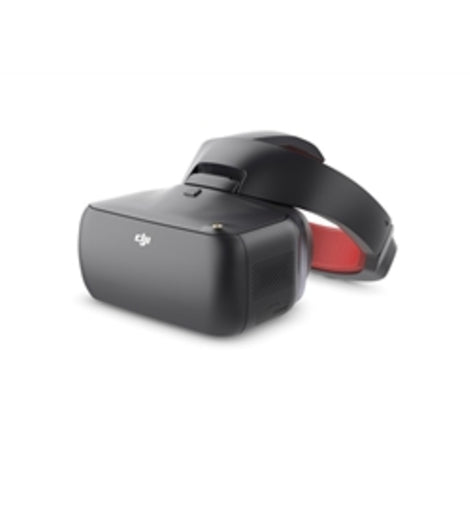

DJI Goggles Racing Edition
Fly Fast. Break Free.
DJI Goggles just got better looking and more powerful, so you can experience FPV racing in style and without traditional restraints. DJI Goggles Racing Edition (RE) feature a redesigned metallic matte black visor and headband, along with padding covered by high-quality red leather. Precisely engineered for racing, DJI Goggles RE are compatible with an OcuSync video transmission module and a high-performance camera module, which work together to transmit digital video signal from up to 7 km away with latency as low as 50 ms,1 in addition to analog signal. Fly with smooth, clear video and experience the thrill of drone racing like never before.
OcuSync Video Transmission Module
DJI Goggles deliver FPV video with ultimate speed, stability, and clarity. The OcuSync Video Transmission Module offers 2.4 and 5.8 GHz dual-band digital video transmission with latency as low as 50 ms and a maximum control range of up to 7 km.1 Equipped with an array of powerful features, such as 1280x960 HD transmission,3 and automatic Frequency-Hopping Spread Spectrum (FHSS) transmission, this module is compatible with a variety of multi-rotor and fixed-wing aircraft. Packed with advanced tech and features, as well as external modules to suit a variety of setups, DJI Goggles RE achieve immersive drone racing that is unparalleled.
12 Selectable Transmission Channels
Access to low-interference transmission channels is the key to success for competitive FPV racing, especially when multiple drones are flying simultaneously. Manually choose from up to 12 transmission channels to effectively avoid interference.
Automatic FHSS Technology
When encountering wireless interference, the OcuSync Module will quickly and automatically switch between the 2.4 and 5.8 GHz channels to maintain unobstructed transmission.
DJI Goggles RE
Screen Size: 5-inch 2
Screen Resolution: 3840 1080 (single screen: 1920 1080)
Transmitter Power (EIRP): 2.4 GHz: 25.5 dBm (FCC) 18.5 dBm (CE) 19 dBm (SRRC)
5.8 GHz: 25.5 dBm (FCC) 12.5 dBm (CE) 18.5 dBm (SRRC)
Live View Modes: 1080p30, 720p60, 720p30
Video Format: MP4 (H.264)
Supported Video Play Format: MP4, MOV, MKV
(Video format: H264 Audio format: AAC-LC, AAC-HE, AC-3, DTS, MP3)
Battery Capacity: 9440 mAh
Operating Temperature Range: 32o to 104o F (0o to 40o C)
Charger Input: 100-240 VAC, 50 / 60 Hz, 0.5 A
Output: 5 V 3 A / 9V 2A / 12 V 1.5 A
DJI OcuSync Camera
Sensor: 1/3 CMOS Effective pixels: 1.2M
Lens: 2.65 mm, f/2.0
Lens Group: 6G + IR
Shutter: Global shutter
ISO: 100 - 3200
FOV: 148o (D) 111o (H) 79.5o (V)
DJI OcuSync Air System
Communication Frequency: 2.4 GHz / 5.8 GHz
Transmitter Power (EIRP): 2.4 GHz: 22.5 dBm (FCC) 18.5 dBm (CE) 19 dBm (SRRC)
5.8 GHz: 25.5 dBm (FCC) 12.5 dBm (CE) 25.5 dBm (SRRC)
Live View Modes and Min. Latency: 960p50: 70 ms 720p60: 60 ms 480p50: 50 ms
Max. Transmission Distance: 2.4 GHz:7 km (FCC) 4 km (CE) 4 km (SRRC)
5.8 GHz:4 km (FCC) 0.7 km (CE) 4 km (SRRC)
Recommended Frequency Band: 5.8 GHz CE: 2.4 GHz SRRC: 5.8 GHz
Video Format: MP4 (MPEG4)
I/O Interface: S.Bus, Micro USB, PPM, UART, MMCX, Micro SD card slot
Supported Flight Control Systems: F3, F4, KISS, NAZE
Supported Remote Controllers: X9D (Frsky), DEVO 10 (Walkera), T8FG (Futaba),T14SG (Futaba), WTF09sll (WFLY), AT9S (RadioLink)
Operating Temperature Range: 32o to 104o F (0o to 40o C)
Input Power: 9-16.8 V (3S-4S)
In the Box
DJI Googles x 1
Charger x 1
Wire Clip x 1
Pagoda Antenna (SMA interface) x 2
Reversed SMA Connector x 1
Micro USB Cable x 1
HDMI Cable x 1
Cleaning Cloth x 1
in the box
DJI Goggles Racing Edition
Headband
2 x Pagoda Antenna
Reversed SMA Connector
Charger
Wire Clip
Micro-USB Cable
HDMI Cable
Cleaning Cloth
Item Dimension (L"xW"xH")
24 x 16 x 13
Weight
31 lbs
Warranty Information
1 Year
