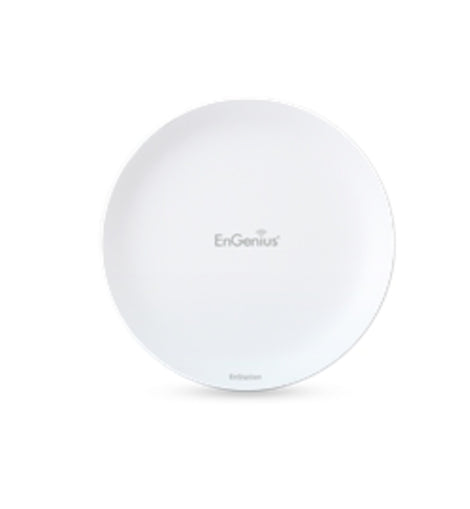

EnGenius Network N-EnStationAC Kit Long-Range Wireless AC866 5GHz Outdoor Access Point Kit Retail
o and nbsp Powerful, 19dBi High-Gain Antennas Extend Networks to 5 Miles Point-to-Point
o and nbsp 11ac Wireless Speeds to 867Mbps to 400Mbps at 1/2 mile
o and nbsp Optimal Bandwidth Supports Heavy Video Delivery over Long Distances
o and nbsp 2 Gigabit PoE-Compliant Ports Offer Flexible Power Options for Remote IP Cameras or APs
o and nbsp Focused, Narrow, Wireless Beam Reduces Interference for Long-Range Transmissions
o and nbsp 360-Degree, 3-Axis Pivoting Arm Locks for Precision Alignment
EnStationAC Kit 50% OFF MSRP Demo Program!
For a limited time, get your hands on two 11AC Wireless Outdoor Bridges for an exclusive long-range, high-speed solution.
Optimal Bandwidth, Wider Channel Range, Faster, Smoother HD Video Streaming
EnStationAC supports blazing fast 802.11ac wireless speeds to 867 Mbps on the 5 GHz band for accommodating 4k Ultra High Definition (UHD) video and heavy multi-application traffic services with extended bandwidth over a wider channel range (20MHz, 40MHz and/or 80MHz) allowing network managers to fine tune channel usage based on the application.
N-EnStationAC Kit is two (2) 5 GHz High-Powered, Long-Distance Wireless 11AC Outdoor AP/Client Bridges for high-bandwidth point-to-point deployments up to 5 miles.
Standard
IEEE 802.11a/n/ac
Internal Antennas
(1) 19 dBi 5 GHz High-Gain Directional
Physical Interface
(1) 10/100/1000 Mbps Port Supports 802.3at/af Proprietary 48V 54V PoE Input
(1) 10/100/1000 Mbps Port Supports 802.3af/PSE Output
LED Indicators
1 x Power
1 x LAN 1
1 x LAN 2
1 x WLAN
Power
802.3at/54V Proprietary Compliant Source
Active Ethernet (Power-over-Ethernet, PoE)
Power Consumption
23.4W
Operating Frequency
5 GHz
Operation Modes
Access Point
Client Bridge
WDS modes
Transmit Power
Up to 26 dBm
Up to 400 mW
Max Power is limited by regulatory power
Radio I
11a/n/ac: 5.180-5.825 GHz
Radio Chains/Spatial Streams
2x2:2 MIMO
Supported Data Rates (Mbps)
5 GHz: Max 867 Mbps
802.11a: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 (MCS0 to MCS15)
802.11ac: 6.5 to 867 (MCS0 to MCS9)
Channelization
802.11ac with 20/40/80 MHz Channel Width
802.11n with 20/40 MHz Channel Width
802.11a with 20 MHz Channel Width
Supported Modulation
802.11a/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, OFDM 256-QAM
Item Dimension (L"xW"xH")
13 x 10 x 4
Weight
4 lb
Warranty Information
1 Year
o and nbsp 11ac Wireless Speeds to 867Mbps to 400Mbps at 1/2 mile
o and nbsp Optimal Bandwidth Supports Heavy Video Delivery over Long Distances
o and nbsp 2 Gigabit PoE-Compliant Ports Offer Flexible Power Options for Remote IP Cameras or APs
o and nbsp Focused, Narrow, Wireless Beam Reduces Interference for Long-Range Transmissions
o and nbsp 360-Degree, 3-Axis Pivoting Arm Locks for Precision Alignment
EnStationAC Kit 50% OFF MSRP Demo Program!
For a limited time, get your hands on two 11AC Wireless Outdoor Bridges for an exclusive long-range, high-speed solution.
Optimal Bandwidth, Wider Channel Range, Faster, Smoother HD Video Streaming
EnStationAC supports blazing fast 802.11ac wireless speeds to 867 Mbps on the 5 GHz band for accommodating 4k Ultra High Definition (UHD) video and heavy multi-application traffic services with extended bandwidth over a wider channel range (20MHz, 40MHz and/or 80MHz) allowing network managers to fine tune channel usage based on the application.
N-EnStationAC Kit is two (2) 5 GHz High-Powered, Long-Distance Wireless 11AC Outdoor AP/Client Bridges for high-bandwidth point-to-point deployments up to 5 miles.
Standard
IEEE 802.11a/n/ac
Internal Antennas
(1) 19 dBi 5 GHz High-Gain Directional
Physical Interface
(1) 10/100/1000 Mbps Port Supports 802.3at/af Proprietary 48V 54V PoE Input
(1) 10/100/1000 Mbps Port Supports 802.3af/PSE Output
LED Indicators
1 x Power
1 x LAN 1
1 x LAN 2
1 x WLAN
Power
802.3at/54V Proprietary Compliant Source
Active Ethernet (Power-over-Ethernet, PoE)
Power Consumption
23.4W
Operating Frequency
5 GHz
Operation Modes
Access Point
Client Bridge
WDS modes
Transmit Power
Up to 26 dBm
Up to 400 mW
Max Power is limited by regulatory power
Radio I
11a/n/ac: 5.180-5.825 GHz
Radio Chains/Spatial Streams
2x2:2 MIMO
Supported Data Rates (Mbps)
5 GHz: Max 867 Mbps
802.11a: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 (MCS0 to MCS15)
802.11ac: 6.5 to 867 (MCS0 to MCS9)
Channelization
802.11ac with 20/40/80 MHz Channel Width
802.11n with 20/40 MHz Channel Width
802.11a with 20 MHz Channel Width
Supported Modulation
802.11a/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, OFDM 256-QAM
Item Dimension (L"xW"xH")
13 x 10 x 4
Weight
4 lb
Warranty Information
1 Year
