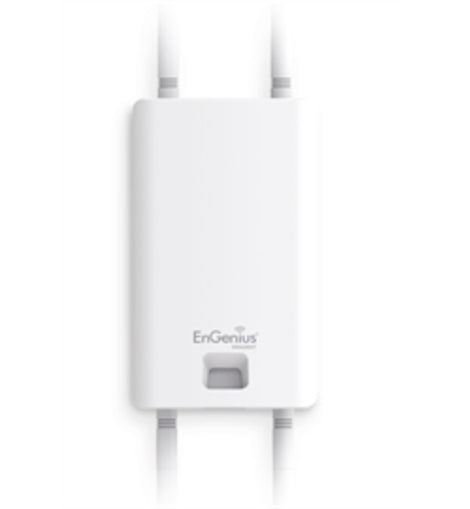

EnGenius Networking ENS620EXT Outdoor 11ac Wave 2 Dual-Band Wireless AC1300 Access Point Retail
Higher Speeds for Multi-User Support
The ENS620EXT offers the next generation of 11ac Wave 2 speed and performance for wireless access points with increased speeds and network user capacities. Support the newest 11ac Wave 2 Multi-User MIMO (MU-MIMO) smartphones, laptops, and other mobile devices with AC1300 network speeds for bandwidth-heavy applications. Multi-MIMO sends multiple streams to several devices simultaneously expanding the total bandwidth and capacity of the network.
Future Proof, Crowd Proof Networks
The ENS620EXT allows network administrators to utilize the most advanced Wi-Fi technology standard available while supporting the future of mobile technology for their users. The AP handles crowded outdoor client environments through its two spatial, MU-MIMO streams and Beamforming technology, which focuses signals directly to client devices, providing optimal signal and reception reliability for users.
Exceptional Performance in Harsh Outdoor Climates
Designed for peak performance in harsh climates, the ENX620EXT features an IP55-rated weatherproof and dustproof enclosure ensuring it can withstand harsh outdoor and indoor environments. This includes prolonged exposure outdoors to sunlight, extreme cold, frost, snow, rain, hail, heat, and humidity, and indoors where temperature is a factor.
Gigabit Ethernet PoE Port Supports Flexible Power Options
Connect and power the ENS620EXT via its Gigabit Power-over-Ethernet (PoE) port in locations where power outlets are limited or unavailable, such as under the eaves of roofs, on light poles or in other remote locations. Utilize the secondary Gigabit pass-through port to connect an additional network device such as an IP surveillance camera or access point/bridge for greater outdoor deployment flexibility.
Technical Specifications
Standards
IEEE 802.11b/g/n on 2.4GHz
IEEE802.11a/n/ac on 5GHz
Antenna
Four (4) External 5 dBi Dual Band Omni-Directional Antenna
SMA-Type
Physical Interface
2 x 10/100/1000 Gigabit Ethernet Ports
(Link Aggregation achieves 2 Gbps Throughput)
1 x Reset Button
LED Indicators
1 x Power
1 x LAN 1
1 x LAN 2
1 x 2.4 GHz
1 x 5 GHz
Power Source
Power-over-Ethernet: Proprietary 24V PoE
QoS
IEEE 802.11e Compliant Source
Maximum Power Consumption
15W
Surge Protection
2KV
ESD Protection
Contact: 4KV
Air: 8 KV
Wireless and Radio Specifications
Operating Frequency
Dual-Radio Concurrent 2.4GHz and 5 GHz
Operation Modes
Access Point Mode (AP mode)
Client Bridge Mode (CB Mode)
WDS: WDS AP, WDS Bridge, WDS Station
Frequency Radio
2.4GHz: 2400 MHz to 2835 MHz
5GHz: 5150 MHz to 5250 MHz, 5250 MHz to 5350 MHz, 5470 MHz to 5725 MHz, 5725MHz to 5850MHz
Transmit Power
2.4 GHz: 27 dBm
5 GHz: 27 dBm
Tx Beamforming (TxBF)
Radio Chains/Spatial Stream
2x2:2
SU-MIMO
Two (2) Spatial Stream SU-MIMO up to 1267 Mbps to a single client
MU-MIMO
Two (2) Spatial Stream MU-MIMO up to 867 Mbps to two (2) wireless devices simultaneously
Supported Data Rates (Mbps)
2.4 GHz: Max 400
5 GHz: Max 867
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 400 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS 1 to 2)
Supported Radio Technologies
802.11b: Direct-Sequence Spread Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
802.11n/ac: 2x2 MIMO with 2 Streams
Channelization
802.11ac supports very high throughput (VHT) - VHT 20/40/80 MHz
802.11n supports high throughput (HT) - HT 20/40 MHz
802.11n supports very high throughput (VHT) under the 2.4 GHz radio - VHT (256-QAM)
802.11n/ac packet aggregation: AMPDU, ASPDU
Supported Modulation
802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
The ENS620EXT offers the next generation of 11ac Wave 2 speed and performance for wireless access points with increased speeds and network user capacities. Support the newest 11ac Wave 2 Multi-User MIMO (MU-MIMO) smartphones, laptops, and other mobile devices with AC1300 network speeds for bandwidth-heavy applications. Multi-MIMO sends multiple streams to several devices simultaneously expanding the total bandwidth and capacity of the network.
Future Proof, Crowd Proof Networks
The ENS620EXT allows network administrators to utilize the most advanced Wi-Fi technology standard available while supporting the future of mobile technology for their users. The AP handles crowded outdoor client environments through its two spatial, MU-MIMO streams and Beamforming technology, which focuses signals directly to client devices, providing optimal signal and reception reliability for users.
Exceptional Performance in Harsh Outdoor Climates
Designed for peak performance in harsh climates, the ENX620EXT features an IP55-rated weatherproof and dustproof enclosure ensuring it can withstand harsh outdoor and indoor environments. This includes prolonged exposure outdoors to sunlight, extreme cold, frost, snow, rain, hail, heat, and humidity, and indoors where temperature is a factor.
Gigabit Ethernet PoE Port Supports Flexible Power Options
Connect and power the ENS620EXT via its Gigabit Power-over-Ethernet (PoE) port in locations where power outlets are limited or unavailable, such as under the eaves of roofs, on light poles or in other remote locations. Utilize the secondary Gigabit pass-through port to connect an additional network device such as an IP surveillance camera or access point/bridge for greater outdoor deployment flexibility.
Technical Specifications
Standards
IEEE 802.11b/g/n on 2.4GHz
IEEE802.11a/n/ac on 5GHz
Antenna
Four (4) External 5 dBi Dual Band Omni-Directional Antenna
SMA-Type
Physical Interface
2 x 10/100/1000 Gigabit Ethernet Ports
(Link Aggregation achieves 2 Gbps Throughput)
1 x Reset Button
LED Indicators
1 x Power
1 x LAN 1
1 x LAN 2
1 x 2.4 GHz
1 x 5 GHz
Power Source
Power-over-Ethernet: Proprietary 24V PoE
QoS
IEEE 802.11e Compliant Source
Maximum Power Consumption
15W
Surge Protection
2KV
ESD Protection
Contact: 4KV
Air: 8 KV
Wireless and Radio Specifications
Operating Frequency
Dual-Radio Concurrent 2.4GHz and 5 GHz
Operation Modes
Access Point Mode (AP mode)
Client Bridge Mode (CB Mode)
WDS: WDS AP, WDS Bridge, WDS Station
Frequency Radio
2.4GHz: 2400 MHz to 2835 MHz
5GHz: 5150 MHz to 5250 MHz, 5250 MHz to 5350 MHz, 5470 MHz to 5725 MHz, 5725MHz to 5850MHz
Transmit Power
2.4 GHz: 27 dBm
5 GHz: 27 dBm
Tx Beamforming (TxBF)
Radio Chains/Spatial Stream
2x2:2
SU-MIMO
Two (2) Spatial Stream SU-MIMO up to 1267 Mbps to a single client
MU-MIMO
Two (2) Spatial Stream MU-MIMO up to 867 Mbps to two (2) wireless devices simultaneously
Supported Data Rates (Mbps)
2.4 GHz: Max 400
5 GHz: Max 867
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 400 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS 1 to 2)
Supported Radio Technologies
802.11b: Direct-Sequence Spread Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
802.11n/ac: 2x2 MIMO with 2 Streams
Channelization
802.11ac supports very high throughput (VHT) - VHT 20/40/80 MHz
802.11n supports high throughput (HT) - HT 20/40 MHz
802.11n supports very high throughput (VHT) under the 2.4 GHz radio - VHT (256-QAM)
802.11n/ac packet aggregation: AMPDU, ASPDU
Supported Modulation
802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
