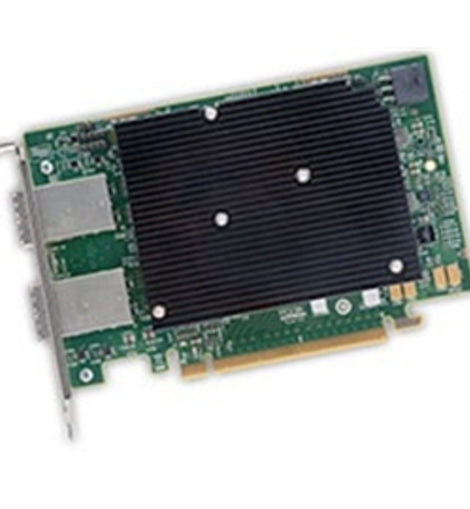

LSI Logic Controller Card 05-25688-00 9302-16e 16-Port SAS 12Gb/s PCI Express 3.0 30W Host Bus Adapter Retail
For server and storage systems needing maximum throughput, the SAS 9302-16e HBA delivers up to 2.8 million input-output operations per second. Using two SAS 3008 12Gb/s SAS controllers with a 16 lane PCI Express 3.0 interface gives Avago the highest performing HBA.
Features:
o Connects up to 1024 SAS and SATA devices with 16 external 12Gb/s SAS ports
o Provides maximum connectivity and performance for external JBOD and external RAID enclosures
o Supports critical application with the bandwidth of a 16 lane PCIe 3.0 connectivity
o Achieves up to 2.8 million IOPS for performance-sensitive applications.
Lifecycle
Active
Host Bus Type
x16 Lane PCI Express 2.0
Devices Supported
1024 Non-RAID SATA/SATA Device Per Controller
External Connectors
4 Mini-SAS HD SFF8644
Operating Temperature
0 C to 55 C
Operating Voltage
+12V +/-8%, 3.3V +/-9%
OS Support
Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware , FreeBSD See the downloads page for details on versions The HBA supports Solaris 10 and Oracle provides a built in driver installation of an LSI driver is not required. For more information
PCI Power
30W
Cable Support
Passive Copper, Active Optical
I/O Controller
2 SAS 3008
MTBF
>1,500,000 Hours
Operating Humidity
5% to 90% Non-Condensing
Brackets
Full Height
Regulatory Certifications
Australia/New Zealand (AS/NZS 3548), Canada (ICES-003), EMC: Class B-US (CFR 47, P15B), Europe (EN55022/EN55024), Japan (V-3/02.04), Korea (N-B 2-0001-404), RoHS, Safety: EN60950, WEEE
Data Transfer Rates
12Gb/s SAS-3 Compliant
Item Dimension (L"xW"xH")
6 x 11 x 2
Weight
1.00 lb
Warranty Information
3 Years
