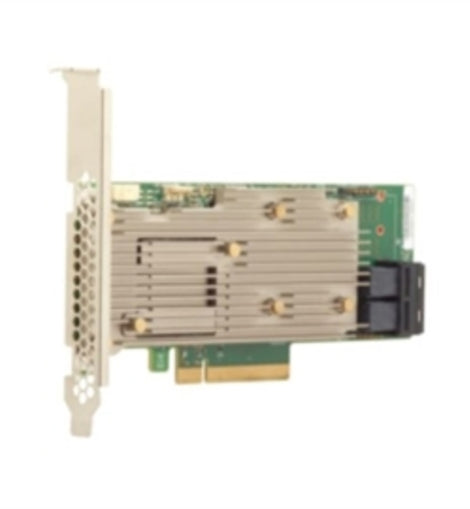

LSI Logic Controller Card 05-50011-02 MegaRAID 8Port Int.12Gb/s SAS/SATA/PCI Express 3.1 LP Retail
Today's data center, cloud and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection and performance that their applications and end users demand. The MegaRAID 9460-8i Tri-Mode Storage Adapter is a 12Gb/s SAS/SATA/PCIe (NVMe) controller card that addresses these needs by delivering proven flexibility, performance and RAID data protection for a range of server storage applications.
Broadcom's Tri-Mode SerDes Technology enables the operation of NVMe, SAS or SATA devices in a single drive bay, allowing for endless design flexibility.
oConnect up to 255 SAS/SATA devices or 24* NVMe devices per controller
oFits into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
oSupport critical, high-bandwidth applications with PCIe(R) 3.1 connectivity
oBalance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
oAdd more protection and peace of mind with CacheVault(R) flash cache protection
Lifecycle
Active
Distrib. Inventory
No
RAID Management Software
LSI Storage Authority (LSA), StorCLI (command-line interface), HII (UEFI Human Interface Infrastructure)
Cache Protection
CacheVault CVPM05
Physical Dimensions
Low profile 6.127 inch x 2.712 inch
Host Bus Type
x8 lane PCI Express 3.1
Cache Memory
2GB 2133 MHz DDR4 SDRAM
Internal Ports
8
Data Transfer Rates
12 Gb/s SAS-3 and 8 GT/s PCIe Gen 3 (NVMe) Compliant
Devices Supported
SAS/SATA: 255, NVMe: 4 x4, up to 24 x2 or x4
Internal Connectors
2 Mini-SAS HD x4 SFF-8643
Operating Temperature
10o to 55oC
Operating Voltage (V)
+12V +/-8%, 3.3V +/-9%
OS
Microsoft Windows. Contact Oracle support for Oracle Solaris driver or software support. See www.broadcom.com/support/down-load-serach for details on versions.
Regulatory Certifications
Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES -003, Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 and 25), RoHS compliant, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
I/O Processor / SAS Controller
SAS3508 dual-core RAID-on-Chip (ROC)
Item Dimension (L inchxW inchxH inch)
11 x 7 x 2
Weight
1.00 lb
Warranty Information
3 Years
