Shuttle Barebone DH110 Skylake Core i7/i5/i3 LGA1151 H110 Max.32GB 4K Support Retail
The Shuttle XPC slim Barebone DH110 is a robust 1.3l Barebone PC with H110 chipset for Intel LGA1151 desktop processors, codenamed "Skylake". It allows for two displays to be operated at the same time and offers Dual Intel LAN and COM ports. Its slim metal chassis comes with a VESA mount included, provides versatile connectivity and reliable operation in environments with ambient temperatures of up to 50?C. This platform is targeted at professional applications such as Digital Signage, POS, POI, gambling machines, office, healthcare and industry.
Chassis
Nettop PC with black chassis made of metal
Two holes for Kensington Locks and numerous threaded holes (M3) at both sides of the chassis
Storage bay
1x 6.35 cm / 2.5 inch storage bay supports one hard disk or SSD drive
Device height: 12.5 mm (max.)
Operation System
This system comes without operating system.
It is compatible with Windows 7 / 8.1 / 10, Linux - 64 bit
Mainboard / Chipset / BIOS
Chipset: Intel H110 Chipset (Intel DH82H110 PCH, code name "Sunrise Point")
Platform Controller Hub (PCH) as Single-Chip-Solution
AMI BIOS in 8 Mbit EEPROM with SPI interface
All capacitors are high quality solid capacitors
Supports hardware monitoring and watch dog functionality
Supports Unified Extensible Firmware Interface (UEFI)
Supports power on after power failure
Power Adapter
External 90 W power adapter (fanless)
Input: 100 to 240 V AC, 50/60 Hz
Output: 19 V DC, 4.74 A, max. 90 W
DC Connector: 5.5/2.5mm (outer/inner diameter)
Remark: the DC-input of the computer supports an external power source with either 12V Plus Minus 5 percent or 19V Plus Minus percent.
Processor support
Socket LGA 1151 (H4) supports the sixth generation of Intel Core i7 / i5 / i3, Pentium and Celeron processors.
Maximum supported processor power consumption (TDP) 65W
Codename "Skylake", 14nm process technology, up to 8 MB of L3 cache
Not compatible with Intel Xeon E3 V5 processors for socket LGA1151 and processors with the older Socket LGA 1150.
Does not support the unlock-function of Intel K-Series processors.
The processor integrates PCI-Express, memory controller and the graphics engine on the same die
(performance features depending on processor type)
Processor cooling
Heat-pipe processor cooling with two 60 mm fans on the upper side of the chassis
Memory support
2x SO-DIMM slots with 204 pins
Supports DDR3L-1333/1600 (PC3-10600/12800) SDRAM at 1.35V
Supports Dual Channel mode
Supports max. 16 GB per DIMM, maximum total size of 32 GB
Supports two unbuffered DIMM modules (no ECC)
Notice: This mainboard does only support 1.35V DDR3L memory modules.
Note: DDR3L has a lower operation voltage compared to DDR3
Integrated Graphics
The features of the integrated graphics function depend on the processor type used.
Two digital video outputs: DisplayPort 1.2 and HDMI 1.4
- supports two independent Full HD displays simultaneously
- supports Full HD resolution at 1920x1200 (1080p/60Hz)
- supports 4K UHD resolution at 3840 x 2160 (max. 2160p/60Hz on DP or max. 30Hz on HDMI)
- supports Blu-ray (BD) playback with HDCP
- supports HD video plus multi-channel digital audio via a single cable.
Optional analog D-Sub/VGA video output
M.2-2260 BM Slot
The M.2 2260 BM slot provides the following interfaces:
- PCI-Express v2.0 X4
- SATA v3.0 (6 Gbps)
It supports M.2 cards with a width of 22 mm and a length of 42 or 60 mm (type 2242, 2260).
Cards with 80mm length (2280) are not supported.
Supports M.2 SSD cards with PCIe or SATA interface.
M.2-2230 AE Slot
The M.2 2230 AE slot provides the following interfaces:
- PCI-Express v2.0 X1
- USB 2.0
It supports M.2 cards with a width of 22 mm and a length of 30 mm. This slot is intended for Wireless LAN (Wifi), Bluetooth, GSM/UMTS cards and others. A SATA interface for SSD cards is not available here.
Audio
Audio Realtek ALC 662 5.1 channel High-Definition Audio
Two analog audio connectors (3.5mm) at the front panel:
1) 2-channel line out (head-phones)
2) microphone input
Digital multi-channel audio output: by HDMI and DisplayPort
Dual Gigabit LAN Controller
Dual network with two RJ45 ports
Used network chips:
1) Intel i211 Ethernet Controller with MAC, PHY and PCIe interface
2) Intel i219LM PHY connected to the MAC of the processor
Supports 10 / 100 / 1.000 MBit/s operation
Supports WAKE ON LAN (WOL)
Supports network boot by Preboot eXecution Environment (PXE)
Supports Teaming mode
Drive connectors
1x Serial-ATA III, 6 Gb/s (600 MB/s) bandwidth
With Serial-ATA power connector (onboard)
Card Reader
Integrated card reader
Supports SD, SDHC and SDXC memory flash cards
Supports boot up from SD card

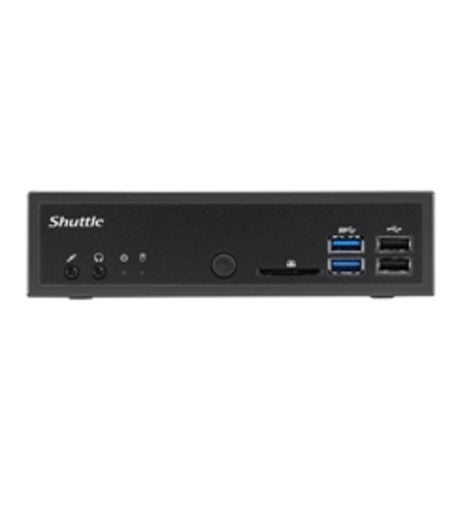

Front Panel connectors
Microphone input
Audio Line-out (headphone)
2x USB 3.0
2x USB 2.0
SD card reader
Power button
Power LED (blue)
HDD LED (yellow)
Back Panel connectors
1x HDMI connector
1x DisplayPort connector (DP)
Optional 1x D-Sub VGA connector (Accessory PVG01 )
2x USB 3.0
1x eSATA/USB 2.0 combo
2x Gigabit LAN (RJ45)
2x RS232 serial port, 9-pin D-Sub (5/12V, 1x RS422/RS485)
DC-input connector for external power adapter (supports 12V Plus Minus 5 percent or 19V Plus Minus percent.
4-pin connector (2.54 mm pitch) supports
- external power on button
- Clear CMOS function
- +5V DC voltage for external components
1x PS/2 Combo supports keyboard or mouse
2x Perforation for optional Wireless LAN antennas
2x hole for Kensington Locks
Other onboard connectors
1x jumper for power on after power fail (hardware solution)
1x analog VGA graphics output CN6 (2x1-pin, 1mm pitch)
2x serial interface (COM) occupied by back panel connectors
1x fan connector (4-pin) occupied by the cooling system
1x connector for CMOS battery (occupied)
Supplied Accessories
Multi-language user guide (EN, DE, FR, ES, JP, KR, SC, TC)
VESA mount for 75/100mm standard (two metal brackets)
Four thumbscrews M3 x 5 mm (screws together VESA mount and PC)
Four screws M4 x 10 mm (to affix VESA mount on the PC)
Four screws M3 x 4 mm (to mount a 2.5 inch storage device into the bay)
Driver DVD (Windows 64-bit)
Serial ATA cable for 2.5 inch drive including power cable
External 90W power adapter with power cord
Protection cap for CPU socket (do not use if heat-pipe or fan is mounted)
Heatsink compound
Optional Accessies
PVG01: optional D-Sub VGA video output
WLN-M.: WLAN module in M.2-2230 format supports IEEE 802.11ac and Bluetooth 4.0
