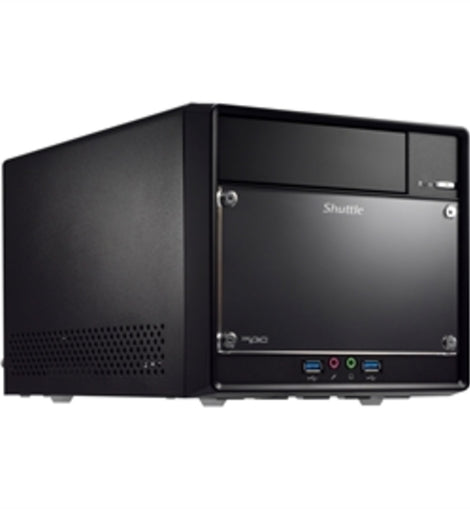

Shuttle System SH310R4V2 XPC Cube Barebone Intel H310 SP 95W Coffee Lake CPU Retail
Install multi-display graphic cards, monitor cards, RAID cards, or professional sound cards for applications like video walls, file servers, and network video recording.
A heat-pipe cooling system with smart fan design that can be set for faster fan speed automatically when CPU temperature increases for high stability and low noise during long term operation.
HDMI 2.0 and Ultra HD with 4K support and transmission of high dynamic range (HDR) video allows for vivid streaming and more accurate color.
With a 13.8 liter size, the SH310R4 can be expanded with up to three 3.5" drives along with SATA/PCI-E M.2 SSDs for additional storage, ideal for workstations.
PROCESSOR
Supports Intel 8th and 9th Generation CoreTM i3/i5/i7/i9 series, Pentium, and Celeron 95W processors
MEMORY
DDR4 2400/2666 MHz, dual channel up to 32GB (16GB x 2)
VIDEO GRAPHICS
Integrated Intel UHD graphics (depends on processor type used)
VIDEO OUTPUT
HDMI + DisplayPort + VGA, Supports dual independent displays
AUDIO
Realtek ALC662, 5.1 channel HD audio
ETHERNET
Intel i219LM
10/100/1000 MB/s operation
Supports Wake on LAN function
STORAGE INTERFACE
SATA 6 GB/s
ONBOARD CONNECTORS
(2) 4 pin fan connector
(3) SATA 6.0 connectors
(1) ATX main power (2x10)
(1) ATX 12V power (2x2)
(1) Low pin count header
(1) RS232 header
(1) Front audio header
(1) Front USB 3.1 FCC connector
(1) 1x4 USB 2.0 wafer
FRONT PANEL
(1) Power Button
(1) Power LED
(1) HDD LED
(2) USB 3.1 Gen 1 port
(1) External microphone jack 1/8"
(1) External headphone jack 1/8"
BACK PANEL
(1) HDMI
(1) DisplayPort
(1) VGA
(2) USB 3.0
(4) USB 2.0
(1) Clear CMOS button
(1) MIC in (1) Line-in jack 1/8"
(1) Line out jack 1/8"
(1) Kensington Lock
(1) LAN
(3) Antenna hole
DRIVE BAYS
(1) 5.25" ODD bay
(2) 3.5" HDD bay
Supports up to 2.5" HDD/SSD x 3 if PHD3 HDD rack accessory is used
POWER
Input: 100 - 240V AC
Supports 80 PLUS Bronze
80 PLUS 300W power supply
ACCESSORIES
Quick Guide
CPU Thermal Grease
Screw Package
Driver DVD
Power Cord
EXPANSION SLOT
(1) PCI-E X16 Gen 3.0 slot
(1) PCI-E X1 Gen 2.0 slot
(1) M.2 MAX to 2230 Type E key socket
(1) M.2 MAX to 2280 Type M key socket
OS SUPPORT
Windows 10 64 bit, Linux
R4-CHASSIS
Black aluminum chassis with acrylic front plate
Easily customize front panel design by changing the mylar and adding a photo, graphics, or logo
Drive bays: 1 x 5.25" ODD, 2 x 3.5" (internal) HDD
Supports up to 2 x 2.5" HDD if PHD3 rack accessory x1 or x2 is used
CHIPSET
H310C
BIOS
AMI BIOS, SPI Interface, 16MB Flash-EPROOM
Supports PnP, ACPI 3.0, Hardware Monitoring
Supports Firmware TPM (fTPM) v2.0 Supports boot up from external USB flash memory
Supports Unified Extensible Firmware Interface (UEFI)
POWER SUPPLY
Built-in 300W mini switching power supply (model PC61J)
AC input voltage: 100 - 240V, 50 - 60 Hz
80 PLUS Bronze compliant: PSU provides at least 82/85/82% of efficiency at 20/50/100% load
Active PFC Circuit (Power Factor Correction)
ATX main power connectors: 2x10 and 2x2 pin
Graphics power connector: 6 pin
Other connectors: 4 x SATA, 2 x Molex, 1 x Floppy
OPERATING SYSTEM
The system comes without an operating system.
Compatibility: Windows 10 64 bit, Linux 64 bit
A heat-pipe cooling system with smart fan design that can be set for faster fan speed automatically when CPU temperature increases for high stability and low noise during long term operation.
HDMI 2.0 and Ultra HD with 4K support and transmission of high dynamic range (HDR) video allows for vivid streaming and more accurate color.
With a 13.8 liter size, the SH310R4 can be expanded with up to three 3.5" drives along with SATA/PCI-E M.2 SSDs for additional storage, ideal for workstations.
PROCESSOR
Supports Intel 8th and 9th Generation CoreTM i3/i5/i7/i9 series, Pentium, and Celeron 95W processors
MEMORY
DDR4 2400/2666 MHz, dual channel up to 32GB (16GB x 2)
VIDEO GRAPHICS
Integrated Intel UHD graphics (depends on processor type used)
VIDEO OUTPUT
HDMI + DisplayPort + VGA, Supports dual independent displays
AUDIO
Realtek ALC662, 5.1 channel HD audio
ETHERNET
Intel i219LM
10/100/1000 MB/s operation
Supports Wake on LAN function
STORAGE INTERFACE
SATA 6 GB/s
ONBOARD CONNECTORS
(2) 4 pin fan connector
(3) SATA 6.0 connectors
(1) ATX main power (2x10)
(1) ATX 12V power (2x2)
(1) Low pin count header
(1) RS232 header
(1) Front audio header
(1) Front USB 3.1 FCC connector
(1) 1x4 USB 2.0 wafer
FRONT PANEL
(1) Power Button
(1) Power LED
(1) HDD LED
(2) USB 3.1 Gen 1 port
(1) External microphone jack 1/8"
(1) External headphone jack 1/8"
BACK PANEL
(1) HDMI
(1) DisplayPort
(1) VGA
(2) USB 3.0
(4) USB 2.0
(1) Clear CMOS button
(1) MIC in (1) Line-in jack 1/8"
(1) Line out jack 1/8"
(1) Kensington Lock
(1) LAN
(3) Antenna hole
DRIVE BAYS
(1) 5.25" ODD bay
(2) 3.5" HDD bay
Supports up to 2.5" HDD/SSD x 3 if PHD3 HDD rack accessory is used
POWER
Input: 100 - 240V AC
Supports 80 PLUS Bronze
80 PLUS 300W power supply
ACCESSORIES
Quick Guide
CPU Thermal Grease
Screw Package
Driver DVD
Power Cord
EXPANSION SLOT
(1) PCI-E X16 Gen 3.0 slot
(1) PCI-E X1 Gen 2.0 slot
(1) M.2 MAX to 2230 Type E key socket
(1) M.2 MAX to 2280 Type M key socket
OS SUPPORT
Windows 10 64 bit, Linux
R4-CHASSIS
Black aluminum chassis with acrylic front plate
Easily customize front panel design by changing the mylar and adding a photo, graphics, or logo
Drive bays: 1 x 5.25" ODD, 2 x 3.5" (internal) HDD
Supports up to 2 x 2.5" HDD if PHD3 rack accessory x1 or x2 is used
CHIPSET
H310C
BIOS
AMI BIOS, SPI Interface, 16MB Flash-EPROOM
Supports PnP, ACPI 3.0, Hardware Monitoring
Supports Firmware TPM (fTPM) v2.0 Supports boot up from external USB flash memory
Supports Unified Extensible Firmware Interface (UEFI)
POWER SUPPLY
Built-in 300W mini switching power supply (model PC61J)
AC input voltage: 100 - 240V, 50 - 60 Hz
80 PLUS Bronze compliant: PSU provides at least 82/85/82% of efficiency at 20/50/100% load
Active PFC Circuit (Power Factor Correction)
ATX main power connectors: 2x10 and 2x2 pin
Graphics power connector: 6 pin
Other connectors: 4 x SATA, 2 x Molex, 1 x Floppy
OPERATING SYSTEM
The system comes without an operating system.
Compatibility: Windows 10 64 bit, Linux 64 bit
