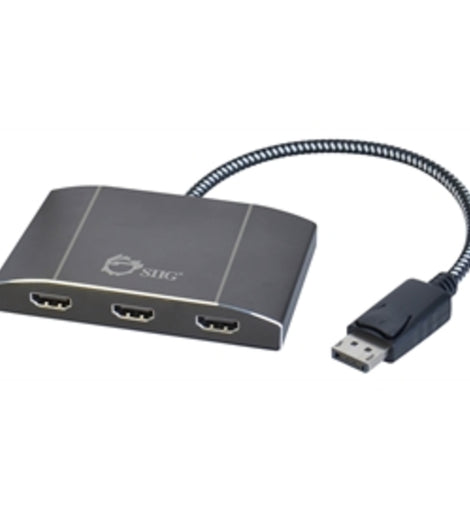

SIIG Accessory CE-DP0C12-S1 1x3 Port DisplayPort to HDMI MST Hub - Multi Monitor Splitter Retail
SIIG's DisplayPort 1.2 to 3-Port HDMI MST Splitter enables you to connect up to 3 HDMI display monitors simultaneously through a single DisplayPort 1.2 enabled video output from your desktop or laptop computer. It supports maximum video resolution of up to 3840x2160 (4K) and 7.1-ch surround audio to deliver stunning video images and high fidelity sound quality. Multiple display modes such as Mirror, Extended and video wall modes are featured to support multitasking for greater productivity. Unique Multi-Stream Transport (MST) technology utilizes the system's video resources only to smoothly stream video contents without dragging down the system performance. This DisplayPort 1.2 to 3-Port HDMI MST Splitter is the ultimate cost-effective video expansion solution to improve your system's video processing performance, turning your computer into a high performance workstation for HD applications such as image editing, graphic design, digital signage, data processing and analyzing as well as gaming.
o Boost your productivity by connecting three HDMI displays to single DisplayPort output with Multi-Stream Transport (MST) technology
o Provides multiple display modes for various applications such as Mirror* mode same content on each display, Extended mode with individual content on each display, and Video Wall mode** which combines multiple monitors to use as one large display
o Supports UHD video resolutions up to 3840x2160 @30Hz (4K) and 7.1-ch surround audio
o Compatible with DisplayPort 1.2 MST graphics adapters such as AMD Eyefinity, NVIDIA Surround technology, or various Intel Graphics
o Plug-n-play, hassle-free set up without complicated hardware or driver installation
o Premium aluminum housing reduces outside interference and provides optimal video quality
o Built-in woven braided DisplayPort cable for enhanced durability
Specifications
Chipset: STDP4320
Maximum resolution: 3840x2160 at 30Hz (4K)
Compliant with DisplayPort 1.2a specifications
Display Modes: Mirror, Extend, Video Wall (e.g., 2x2, Panoramic)
Note:
- Mirror mode: using a NVIDIA Surround technology graphics adapter is limited to 2 displays.
- Video Wall mode: requires either a AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter
Total Bandwidth 21.6Gbps (100%): 3840x2160 at 30Hz (40%), 2560x1600 at 60Hz (38%), 2560x1440 at 60Hz (35%), 1920x1200 at 60Hz (30%), 1920x1080 at 60Hz (22%)
Note: The total combined bandwidth among all connected HDMI displays must NOT be exceeded
Color
Black
Housing material
Aluminum
Embedded DisplayPort cable length
7.9" (200mm)
Connectors
1x 20-pin, DisplayPort, Male, Input
3x 19-pin, HDMI, Type A, Female, Output
1x 5-pin, Micro USB, Female, Input (for power only)
Micro USB Power Cable
Micro USB (male) to USB Type-A (male)
Length: 3.3 ft (1m)
Environmental conditions
Operating temperature: 32 to 140 degrees F
Storage temperature: -4 to 158 degrees F
Relative humidity: 5% to 85% RH (non-condensing)
Certifications/Standards
FCC, CE, RoHS
Item Dimension (L inchxW inchxH inch)
8 x 5 x 1
Weight
1.00 lb
Warranty Information
2 Years
o Boost your productivity by connecting three HDMI displays to single DisplayPort output with Multi-Stream Transport (MST) technology
o Provides multiple display modes for various applications such as Mirror* mode same content on each display, Extended mode with individual content on each display, and Video Wall mode** which combines multiple monitors to use as one large display
o Supports UHD video resolutions up to 3840x2160 @30Hz (4K) and 7.1-ch surround audio
o Compatible with DisplayPort 1.2 MST graphics adapters such as AMD Eyefinity, NVIDIA Surround technology, or various Intel Graphics
o Plug-n-play, hassle-free set up without complicated hardware or driver installation
o Premium aluminum housing reduces outside interference and provides optimal video quality
o Built-in woven braided DisplayPort cable for enhanced durability
Specifications
Chipset: STDP4320
Maximum resolution: 3840x2160 at 30Hz (4K)
Compliant with DisplayPort 1.2a specifications
Display Modes: Mirror, Extend, Video Wall (e.g., 2x2, Panoramic)
Note:
- Mirror mode: using a NVIDIA Surround technology graphics adapter is limited to 2 displays.
- Video Wall mode: requires either a AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter
Total Bandwidth 21.6Gbps (100%): 3840x2160 at 30Hz (40%), 2560x1600 at 60Hz (38%), 2560x1440 at 60Hz (35%), 1920x1200 at 60Hz (30%), 1920x1080 at 60Hz (22%)
Note: The total combined bandwidth among all connected HDMI displays must NOT be exceeded
Color
Black
Housing material
Aluminum
Embedded DisplayPort cable length
7.9" (200mm)
Connectors
1x 20-pin, DisplayPort, Male, Input
3x 19-pin, HDMI, Type A, Female, Output
1x 5-pin, Micro USB, Female, Input (for power only)
Micro USB Power Cable
Micro USB (male) to USB Type-A (male)
Length: 3.3 ft (1m)
Environmental conditions
Operating temperature: 32 to 140 degrees F
Storage temperature: -4 to 158 degrees F
Relative humidity: 5% to 85% RH (non-condensing)
Certifications/Standards
FCC, CE, RoHS
Item Dimension (L inchxW inchxH inch)
8 x 5 x 1
Weight
1.00 lb
Warranty Information
2 Years
