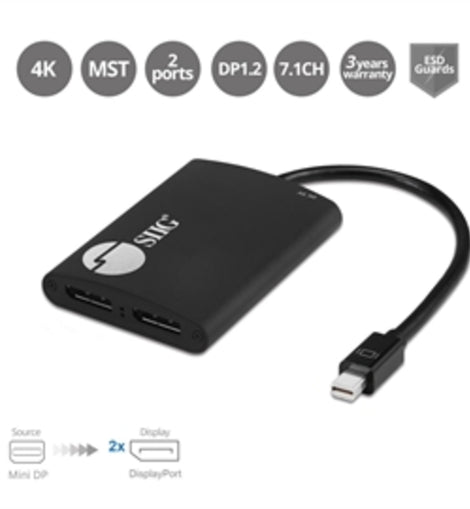

o Boost your productivity by connecting two DisplayPort displays to single Mini DisplayPort 1.2 output with Multi-Stream Transport (MST) technology
o Provides multiple display modes for various applications such as Mirror mode same content on each display, Extended mode* with individual content on each display, and Panoramic Video Wall mode which combines multiple monitors to use as one large display. Note: Panoramic Video Wall mode requires either a AMD Eyefinity or NVIDIA Surround technology graphics adapter
o Supports UHD video resolutions up to 3840x2160 @30Hz (4Kx2K) and 7.1-ch surround audio
o Compatible with DisplayPort 1.2 graphics cards with AMD Eyefinity or NVIDIA Surround technology**
o Plug-n-play, hassle-free set up without complicated hardware or driver installation
Notes:
*Mac OS does not support MST function and will only mirror the displays.
**Requires GPU / graphics card to support at least 2 external displays to use both video ports at the same time with extended mode.
Chipset:
STDP4320
Maximum resolution up to 3840x2160 at 30Hz
Compliant with DisplayPort 1.2a specifications
Supports 7.1 Ch audio up to 192kHz sampling rate
Display Modes:
Mirror, Extended, Panoramic video wall
Note: AMD Eyefinity or NVIDIA Surround technology graphics adapter is required to support Panoramic Video Wall mode
Total Bandwidth 21.6Gbps (100%):
3840x2160 at 30Hz (40%), 2560x1600 at 60Hz (38%), 2560x1440 at 60Hz (35%), 1920x1200 at 60Hz (30%), 1920x1080 at 60Hz (22%) Note: Make sure the total combined resolution bandwidth among all displays DOES NOT exceed 100%.
Product:
DisplayPort cable (embedded): 12.6 inches
Color: Black
Housing: Aluminum
Connector:
1x 20-pin, DisplayPort, Male, Input
2x 19-pin, HDMI, Type A, Female, Output
1x 5-pin, Micro USB, Female, USB power Input
Micro USB power cable:
19 inches
Environmental conditions:
Operating temperature: 32 to 122 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 20% to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
TAA compliant
Item Dimension (L"xW"xH")
1 x 1 x 1
Weight
1.00 LB
Warranty Information
3 years
