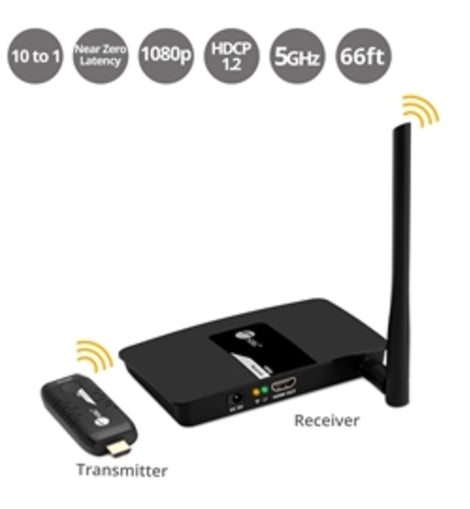

o Wireless 5G technology reliably extends HDMI signals up to 66 feet to a remote HDMI display
Note: The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions, and may be much less than the maximum
o Allows you to select and switch between up to 10 HDMI sources to broadcast on one HDMI display. Requires additional 10x1 1080p Wireless HDMI Extender - Transmitter (CE-H24E11-S1), sold separately
o Supports video resolutions up to 1080p Full HD for stunning and crystal clear images
o Perfect solution for meetings, conference rooms, home entertainment and multi-media education
o Switching button on each transmitter unit allows easy push button device selection between multiple source devices
Wireless Technology
5GHz
Compliant with HDMI 1.3 and HDCP 1.2
Resolution
480p / 720p / 1080i / 1080p at 60Hz
Wireless transmission distance
Up to 66 feet (20 meters)
Note: The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions, and may be much less than the maximum
Topology
Extender: 1x1 (1 source device to 1 display)
Switch: up to 10x1 (10 source devices to 1 display)
Requires 10x1 1080p Wireless HDMI Extender - Transmitter, part CE-H24E11-S1, sold separately
HDMI cable length
Up to 5m (Output)
Supports 2-Ch PCM stereo audio
Housing material: Plastic
Housing color
Black
Transmitting unit (TX)
Dimensions: 3.46" (L) x 0.59" (H) x 1.50" (W)
Weight: 0.07 lbs
Connectors:
1x 19-pin HDMI, Type A, Male, Input
1x 5-pin Micro USB, Power Input
1x Switch button
Receiving unit (RX)
Dimensions: 5.43" (L) x 0.87" (H) x 3.35" (W)
Weight: 0.22 lbs
Connectors:
1x 19-pin HDMI, Type A, Female, Output
1x Antenna
1x Power jack
Power adapter
Input: 100-240V / 50-60Hz
Output: DC 5V/2A
UL Listed: E335801 / Class VI
Environmental conditions
Operating temperature: 32 to 122 degrees F
Storage temperature: 14 to 140 degrees F
Relative humidity: 0% to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Item Dimension (L"xW"xH")
6 x 8 x 4
Weight
2 lbs
Warranty Information
2 years
