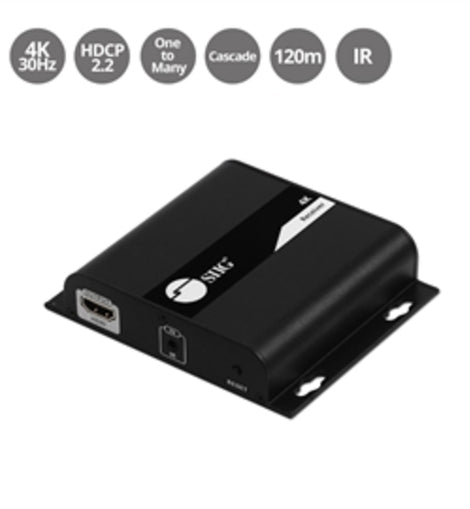

SIIG Accessory CE-H25E11-S1 HDMI 4K30Hz HDbitT over IP Extender - Receiver Brown Box
o With a single Cat6 cable, you can easily extend HDMI audio/video signals up to 394ft. Connect your HDMI source device (PC, Blu-ray player, media player) to the Transmitter, utilize existing Ethernet structure in your house/office to connect the transmitter to Receiver, then connect your HDTV from a remote location to the Receiver
o Supports up to 4K @30Hz and 1080p. HDMI 1.4 and HDCP 2.2 compliant. Supports 2-channel Stereo Audio. Auto adjustment for different cable lengths to produce the best video/audio experience. We recommend using high performance pure copper Cat6 cables to ensure reliable performance
o Direct 1-to-1 connection, 1-to-many through unmanaged Gigabit network switches, or many-to-many via VLAN through a Smart Ethernet Switch. With HDBitT transport protocol, you can connect up to 30 Receivers per Transmitter to not only extend but split HDMI signals to multiple displays. *The kit (CE-H25D11-S1) and additional Receivers (CE-H25E11-S1) are sold separately
o One-directional IR control from RX side to TX side. Allows the source device to recognize remote commands from afar. You can control the HDMI source device at a remote location with the included IR cables that forward commands over a Cat6 cable
o High quality surface mountable metal housing efficiently dissipates heat build-up, to ensure system stability and trouble-free operation
Transport protocal:
HDbitT
Compliant with HDMI 1.4 and HDCP 2.2
Support connections:
Point to Point connection: up to 120m
One to many connection (dedicated unmanaged Gigabit network routers or switches recommended)
Transmission distance:
Up to 394ft (120 meters)
Supports 2-Ch PCM stereo audio
Supports full frequency IR signal from 20KHz to 60KHz
Resolution:
480p / 720p / 1080i / 1080p at 60Hz,4K at 30Hz
Metal housing surface mountable
HDMI cable length:
10 meters (max), each input and output
Power consumption:
4 watts (max)
Product (RX):
Connectors:
1x 19-pin HDMI, Type A, Female, Output
1x 3.5mm jack, IR Receiver
1x 8-pin, RJ45, HDbitT signal input
1x Reset button
1x Power jack
Power adapter:
Input: 100-240V / 50-60Hz
Output: DC 5V/2A
UL listed: E335801 / Level: VI
Environmental conditions:
Operating temperature: 32 to 122 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 0 to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
Item Dimension (L"xW"xH")
5 x 1 x 4
Weight
1.00 LB
Warranty Information
2 years
o Supports up to 4K @30Hz and 1080p. HDMI 1.4 and HDCP 2.2 compliant. Supports 2-channel Stereo Audio. Auto adjustment for different cable lengths to produce the best video/audio experience. We recommend using high performance pure copper Cat6 cables to ensure reliable performance
o Direct 1-to-1 connection, 1-to-many through unmanaged Gigabit network switches, or many-to-many via VLAN through a Smart Ethernet Switch. With HDBitT transport protocol, you can connect up to 30 Receivers per Transmitter to not only extend but split HDMI signals to multiple displays. *The kit (CE-H25D11-S1) and additional Receivers (CE-H25E11-S1) are sold separately
o One-directional IR control from RX side to TX side. Allows the source device to recognize remote commands from afar. You can control the HDMI source device at a remote location with the included IR cables that forward commands over a Cat6 cable
o High quality surface mountable metal housing efficiently dissipates heat build-up, to ensure system stability and trouble-free operation
Transport protocal:
HDbitT
Compliant with HDMI 1.4 and HDCP 2.2
Support connections:
Point to Point connection: up to 120m
One to many connection (dedicated unmanaged Gigabit network routers or switches recommended)
Transmission distance:
Up to 394ft (120 meters)
Supports 2-Ch PCM stereo audio
Supports full frequency IR signal from 20KHz to 60KHz
Resolution:
480p / 720p / 1080i / 1080p at 60Hz,4K at 30Hz
Metal housing surface mountable
HDMI cable length:
10 meters (max), each input and output
Power consumption:
4 watts (max)
Product (RX):
Connectors:
1x 19-pin HDMI, Type A, Female, Output
1x 3.5mm jack, IR Receiver
1x 8-pin, RJ45, HDbitT signal input
1x Reset button
1x Power jack
Power adapter:
Input: 100-240V / 50-60Hz
Output: DC 5V/2A
UL listed: E335801 / Level: VI
Environmental conditions:
Operating temperature: 32 to 122 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 0 to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
Item Dimension (L"xW"xH")
5 x 1 x 4
Weight
1.00 LB
Warranty Information
2 years
