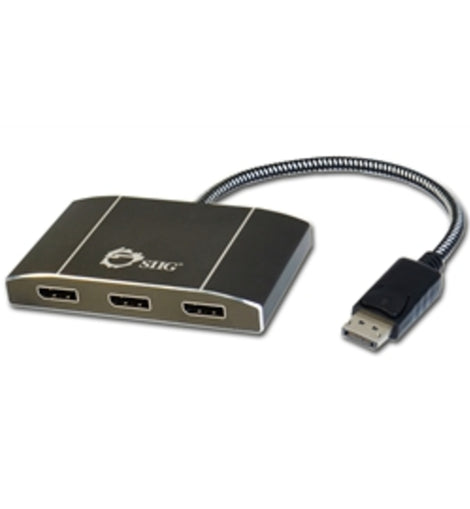

SIIG Video Accessory CE-DP0D12-S1 1x3 Port DisplayPort to DisplayPort MST Hub - Multi Monitor Splitter Retail
SIIGs DisplayPort 1.2 to 3-Port DisplayPort MST Splitter enables you to connect up to 3 DisplayPort monitors simultaneously through a single DisplayPort 1.2 enabled video output from your desktop or laptop computer. It supports UHD resolution of up to 3840x2160 (4Kx2K) and 7.1-ch surround audio to deliver stunning video images and high fidelity sound quality. Multiple display modes such as Mirror, Extended and panoramic video wall modes are featured to support multitasking for maximum productivity. Unique Multi-Stream Transport (MST) technology utilizes only the systems video resources and smoothly streams video contents without dragging down the system performance. This DisplayPort 1.2 to 3-Port DisplayPort MST Splitter is the ultimate cost-effective video expansion solution to improve your systems video processing performance, turning your computer into a high performance workstation for HD applications such as image editing, graphic design, digital signage, data processing and analyzing as well as gaming.
Chipset
STDP4320
Maximum resolution up to 3840x2160 at 30Hz
Compliant with DisplayPort 1.2a specifications
Display Modes
Mirror, Extend, Panoramic video wall
Note: Mirror mode using a NVIDIA Surround technology graphics adapter is limited to 2 displays. Video Wall mode requires either a AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter
Total Bandwidth
21.6Gbps (100%): 3840x2160 at 30Hz(40%) 2560x1600 at 60Hz (38%) 2560x1440 at 60Hz (35%) 1920x1200 at 60Hz (30%) 1920x1080 at 60Hz (22%)
Note: The total combined bandwidth among all connected displays must NOT be exceeded
Product
Color: Deep brown
Housing: Aluminum
Connector:
1x 20-pin, DisplayPort, Male, Input
3x 20-pin, DisplayPort, Female, Output
1x 5-pin, Micro USB, Female, USB power Input
Environmental Conditions
Operating temperature: 32 to 104 degrees F
Storage temperature: -4 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards
FCC, CE, RoHS
Item Dimension (L"xW"xH")
1 x 5 x 7
Weight
1 lb
Warranty Information
2 Years
Chipset
STDP4320
Maximum resolution up to 3840x2160 at 30Hz
Compliant with DisplayPort 1.2a specifications
Display Modes
Mirror, Extend, Panoramic video wall
Note: Mirror mode using a NVIDIA Surround technology graphics adapter is limited to 2 displays. Video Wall mode requires either a AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter
Total Bandwidth
21.6Gbps (100%): 3840x2160 at 30Hz(40%) 2560x1600 at 60Hz (38%) 2560x1440 at 60Hz (35%) 1920x1200 at 60Hz (30%) 1920x1080 at 60Hz (22%)
Note: The total combined bandwidth among all connected displays must NOT be exceeded
Product
Color: Deep brown
Housing: Aluminum
Connector:
1x 20-pin, DisplayPort, Male, Input
3x 20-pin, DisplayPort, Female, Output
1x 5-pin, Micro USB, Female, USB power Input
Environmental Conditions
Operating temperature: 32 to 104 degrees F
Storage temperature: -4 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards
FCC, CE, RoHS
Item Dimension (L"xW"xH")
1 x 5 x 7
Weight
1 lb
Warranty Information
2 Years
