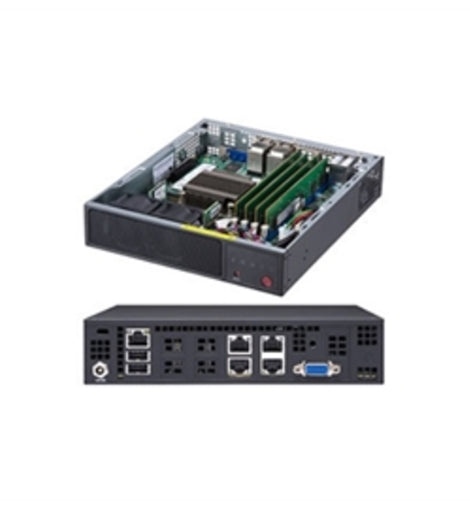

Supermicro System SYS-E200-9A Mini-1U Atom C3558 FCBGA 1310 256GB 1x2.5"SSD PCIE Brown Box
- Virtualization Server
- Virtual-CPE White Box
- Entry-level Network Appliance
1. Intel(R) Atom(R) processor C3558,
Single socket FCBGA 1310
2. System on Chip
3. 1 fixed 2.5" SSD bay
4. Up to 256GB ECC RDIMM DDR4
2400MHz or 64GB ECC/non-ECC
UDIMM in 4 sockets
5. 1 PCI-E 3.0 x4 (in x4 slot),
M.2 PCI-E 3.0 x2 and SATA,
M Key 2242/2280
6. 4 GbE LAN ports with C3000 SoC,
dedicated LAN for IPMI 2.0
7. VGA via BMC, 2 USB 2.0 ports
8. 2x 40mm chassis fans
9. 60W lockable power adapter
Motherboard
Super A2SDi-4C-HLN4F
Processor/Cache
CPU:Intel Atom processor C3558
FCBGA 1310
CPU TDP support 16W
System Memory
Memory Capacity:4x DDR4 DIMM sockets
Supports up to 256GB DDR4 ECC RDIMM
Supports up to 64GB DDR4 ECC/non-ECC UDIMM
Memory Type:2400/2133/1866MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
DIMM Sizes:32GB, 16GB, 8GB, 4GB
Memory Voltage:1.2 V
Error Detection:Corrects single-bit errors
Detects double-bit errors(using ECC memory)
On-Board Devices
Chipset:System on Chip
SATA:SoC controller for 8 SATA3 (6Gbps) ports
Network Controllers:Quad Gigabit Ethernet LAN via Intel C3000 SoC
Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1 Realtek RTL8201N PHY (dedicated IPMI)
IPMI:Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics:Aspeed AST2400
Input / Output
SATA:1 SATA3 (6Gbps) port
LAN:4 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
USB:2 USB 2.0 ports (rear)
Display:1 VGA port
DOM:1 SuperDOM (Disk on Module) power connector
TPM:TPM 2.0 header
Chassis
Form Factor:Mini-1U
Model:CSE-101F
Dimensions
Available Colors:Black
Front Panel
Buttons:Power On/Off button
LEDs:Power LED (Hard drive activity LED)
Expansion Slots
M.2:Interface: PCI-E 3.0 x2 or SATA3
Form Factor: M Key 2242/2280
Drive Bays
Internal:2.5" fixed SSD bay with bracket (Design for 9.5mm thickness drive with Low Profile Memory)
System Cooling
Fans:2x 40mm chassis fans
Power Supply
60W lockable power adapter
System BIOS
BIOS Type:128Mb SPI Flash with AMI BIOS
BIOS Features:PCI 3.0
ACPI 5.0
USB Keyboard support
Hardware BIOS Virus protection
SMBIOS 2.8
UEFI 2.4
RTC (Real Time Clock) Wakeup
Management
Software:IPMI 2.0
KVM with dedicated LAN
NMI
SuperDoctor 5
Watch Dog
Power Configurations:ACPI / APM Power Management
CPU Fan auto-off in sleep modePower-on mode for AC power recovery
Fan:Fans with tachometer status monitoring
Status monitor for speed control
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors
Operating Environment / Compliance
RoHS:RoHS Compliant
Environmental Spec.:Operating Temperature: 0oC to 40oC (32oF to 104oF)
Non-operating Temperature: -40oC to 70oC (-40oF to 158oF)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Item Dimension (L inchxW inchxH inch)
6 x 15 x 11
Weight
6.50lb
Warranty Information
1 Year
