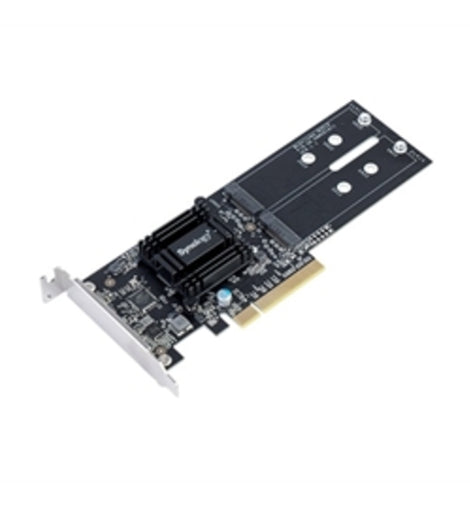

Synology Controller Card M2D18 M.2 NVMe SATA SSD adapter card Retail
Dual M.2 SSD adapter card for extraordinary cache performance
Elevate Your Storage Performance To the Next Level
Designed to supercharge your NAS I/O performance, Synology M.2 SSD adapter M2D18 significantly reduces random I/O latency, benefiting applications such as photo indexing, file search, and virtualization environments.
The dual M.2 SSD slots support both SATA and NVMe SSD, meaning higher SSD read/write caching and more primary drive bays reserved for data storage. Attachable heatsink accelerates thermal dispatching of M.2 SSD and assures system stability with excellent performance. Its flexibility in supporting 2280/2260/2242 form factors and meeting various SSD options saves you from vendor lock-in.
Applied Models
NVMe and SATA SSD: FS1018, DS3018xs, RS2818RP+, RS2418(RP)+, DS1618+
SATA SSD: FS2017, RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, RS3618xs, DS3617xs, RS1219+, RS818(RP)+, DS1817+, DS1517+
Note
DSM version requirement: 6.2-23739-2 onward (or 6.1-15284-2 onward with DSM 6.1)
PCIe Interface
PCIe 2.0 x8
Driver Interface
PCIe NVMe / SATA
Connector Type and Quantity
M-key, 2 Slots
Supported Form Factor
2280 / 2260 / 2242
Bracket Height
Low Profile and Full Height
Operating Temperature
0oC to 40oC (32oF to 104oF)
Storage Temperature
-20oC to 60oC (-5oF to 140oF)
Relative Humidity
5% to 95% RH
Item Dimension (L inchxW inchxH inch)
3 x 8 x 1
Weight
1.00lb
Warranty Information
3 Years
Elevate Your Storage Performance To the Next Level
Designed to supercharge your NAS I/O performance, Synology M.2 SSD adapter M2D18 significantly reduces random I/O latency, benefiting applications such as photo indexing, file search, and virtualization environments.
The dual M.2 SSD slots support both SATA and NVMe SSD, meaning higher SSD read/write caching and more primary drive bays reserved for data storage. Attachable heatsink accelerates thermal dispatching of M.2 SSD and assures system stability with excellent performance. Its flexibility in supporting 2280/2260/2242 form factors and meeting various SSD options saves you from vendor lock-in.
Applied Models
NVMe and SATA SSD: FS1018, DS3018xs, RS2818RP+, RS2418(RP)+, DS1618+
SATA SSD: FS2017, RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, RS3618xs, DS3617xs, RS1219+, RS818(RP)+, DS1817+, DS1517+
Note
DSM version requirement: 6.2-23739-2 onward (or 6.1-15284-2 onward with DSM 6.1)
PCIe Interface
PCIe 2.0 x8
Driver Interface
PCIe NVMe / SATA
Connector Type and Quantity
M-key, 2 Slots
Supported Form Factor
2280 / 2260 / 2242
Bracket Height
Low Profile and Full Height
Operating Temperature
0oC to 40oC (32oF to 104oF)
Storage Temperature
-20oC to 60oC (-5oF to 140oF)
Relative Humidity
5% to 95% RH
Item Dimension (L inchxW inchxH inch)
3 x 8 x 1
Weight
1.00lb
Warranty Information
3 Years
