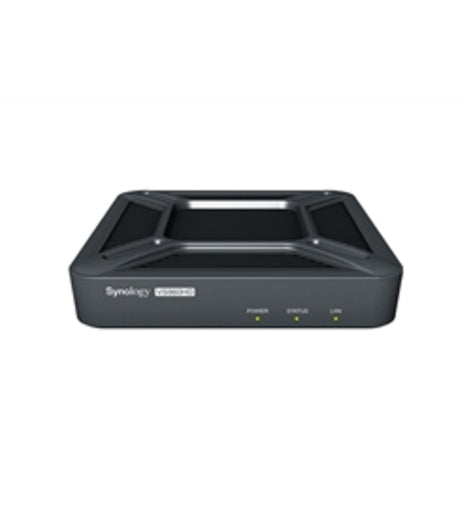

Synology Networking Accesory VS960HD Surveillance Player VisualStation USB HDMI Retail
PC-less Surveillance Management Solution
VisualStation is the perfect alternative when facing limited space or budget constraints. Just plug in an Ethernet cable, connect to an LCD-monitor or TV, log in to Synology Surveillance Station -- and you have a monitoring station for yourself.
Robust and certified hardware for harsh environments
Free from mechanical moving parts, VisualStation is more resistant against vibration and hardware failure. Its solid outer case and optimized design allow VisualStation to run within industrial temperature ranges, from -20oC to 50oC. In addition, VisualStation is EN45545 and EN50155 certified.
Ideal for TV wall setup
TV wall is ideal for monitoring a massive amount of cameras at a glance, and it is easy to set up with VisualStation.
Dual screen display
By supporting dual monitor video outputs to allow users to switch between mirrored and extended desktop modes, VisualStation provides a cost-efficient, easy to setup, and scalable TV wall solution.
Minimum device size
The whole system fits in a palm-sized enclosure and can be easily attached to a wall or the back of a screen with a VESA compatible mount.
Convenient live view and playback interface
VS960HD provides a user-friendly interface and powerful features from Surveillance Station.
Hardware Specifications
Video Outputs
Video Output:HDMI X 2
Supported Video Resolution:HDMI 1: 4K (3840 x 2160, 30Hz/60Hz) HDMI 2: 1080p (1920 x 1080, 60Hz)
Audio Input:3.5 mm Stereo Audio Jack x 1
Audio Output:3.5 mm Stereo Audio Jack x 1
RJ-45 1GbE LAN Port:1
USB 2.0 Port:2
USB 3.0 Port:1
Others
Power Supply Unit / Adapter:36W
AC Input Power Voltage:100V to 240V AC
Dynamic DC Input:7-24V
Power Frequency:50/60 Hz, Single Phase
Power Consumption:7.2W (96ch full-load)
4.9W (Power on Idle)
Environment
Operating Temperature:-20oC to 50oC (-4oF to 122oF)
Adapter Operating Temperature:0oC to 40oC (32oF to 104oF)
Storage Temperature:-20oC to 60oC (-4oF to 140oF)
Relative Humidity:5% to 95% RH
Certification:FCC Class B
CE Class B
BSMI Class B
EN50155
EN45545
Warranty:3 Year Hardware Warranty, Extendable to 5 Year Coverage - EW201
Software Specifications
Maximum IP cam:96
Total FPS (H.264):960 FPS at 720p (1280x720), 96 Channels
580 FPS at 1080p (19201080), 58 Channels
440 FPS at 3M (2048x1536), 44 Channels
250 FPS at 5M (2591x1944), 25 Channels
140 FPS at 4K (3840 x 2160), 14 Channels
Total FPS (H.265):900 FPS at 720p (1280x720), 90 Channels
640 FPS at 1080p (19201080), 64 Channels
430 FPS at 3M (2048x1536), 43 Channels
250 FPS at 5M (2591x1944), 25 Channels
150 FPS at 4K (3840 x 2160), 15 Channels
Total FPS (MJPEG):400 FPS at 720p (1280x720), 40 Channels
200 FPS at 1080p (19201080), 20 Channels
140 FPS at 3M (2048x1536), 14 Channels
80 FPS at 5M (2591x1944), 8 Channel
Video Codec:MJPEG
MPEG-4
H.264
H.265
Audio Codec:PCM
G711
G726
AMR
AAC
Live View / Recording Playback:Yes
Snapshot Support:Yes
eMap Support:Yes
PTZ Control / Patrol:Yes
Log Viewer:Yes
Notes:VisualStation throughput is tested with Axis P1347 (H.2641280x72010FPS).
The channel numbers indicated in the Total FPS column of each resolution is the maximum number VS960HD supports for live view display.
Environment Packaging
Environment:RoHS Compliant
Packaging Content:Main Unit X 1
Quick Installation Guide X 1
AC Power Adapter X 1
RJ-45 LAN Cable X 1
VESA mounting kit
Item Dimension (L inchxW inchxH inch)
8 x 4 x 2
Weight
2.37 lb
Warranty Information
3 Years
VisualStation is the perfect alternative when facing limited space or budget constraints. Just plug in an Ethernet cable, connect to an LCD-monitor or TV, log in to Synology Surveillance Station -- and you have a monitoring station for yourself.
Robust and certified hardware for harsh environments
Free from mechanical moving parts, VisualStation is more resistant against vibration and hardware failure. Its solid outer case and optimized design allow VisualStation to run within industrial temperature ranges, from -20oC to 50oC. In addition, VisualStation is EN45545 and EN50155 certified.
Ideal for TV wall setup
TV wall is ideal for monitoring a massive amount of cameras at a glance, and it is easy to set up with VisualStation.
Dual screen display
By supporting dual monitor video outputs to allow users to switch between mirrored and extended desktop modes, VisualStation provides a cost-efficient, easy to setup, and scalable TV wall solution.
Minimum device size
The whole system fits in a palm-sized enclosure and can be easily attached to a wall or the back of a screen with a VESA compatible mount.
Convenient live view and playback interface
VS960HD provides a user-friendly interface and powerful features from Surveillance Station.
Hardware Specifications
Video Outputs
Video Output:HDMI X 2
Supported Video Resolution:HDMI 1: 4K (3840 x 2160, 30Hz/60Hz) HDMI 2: 1080p (1920 x 1080, 60Hz)
Audio Input:3.5 mm Stereo Audio Jack x 1
Audio Output:3.5 mm Stereo Audio Jack x 1
RJ-45 1GbE LAN Port:1
USB 2.0 Port:2
USB 3.0 Port:1
Others
Power Supply Unit / Adapter:36W
AC Input Power Voltage:100V to 240V AC
Dynamic DC Input:7-24V
Power Frequency:50/60 Hz, Single Phase
Power Consumption:7.2W (96ch full-load)
4.9W (Power on Idle)
Environment
Operating Temperature:-20oC to 50oC (-4oF to 122oF)
Adapter Operating Temperature:0oC to 40oC (32oF to 104oF)
Storage Temperature:-20oC to 60oC (-4oF to 140oF)
Relative Humidity:5% to 95% RH
Certification:FCC Class B
CE Class B
BSMI Class B
EN50155
EN45545
Warranty:3 Year Hardware Warranty, Extendable to 5 Year Coverage - EW201
Software Specifications
Maximum IP cam:96
Total FPS (H.264):960 FPS at 720p (1280x720), 96 Channels
580 FPS at 1080p (19201080), 58 Channels
440 FPS at 3M (2048x1536), 44 Channels
250 FPS at 5M (2591x1944), 25 Channels
140 FPS at 4K (3840 x 2160), 14 Channels
Total FPS (H.265):900 FPS at 720p (1280x720), 90 Channels
640 FPS at 1080p (19201080), 64 Channels
430 FPS at 3M (2048x1536), 43 Channels
250 FPS at 5M (2591x1944), 25 Channels
150 FPS at 4K (3840 x 2160), 15 Channels
Total FPS (MJPEG):400 FPS at 720p (1280x720), 40 Channels
200 FPS at 1080p (19201080), 20 Channels
140 FPS at 3M (2048x1536), 14 Channels
80 FPS at 5M (2591x1944), 8 Channel
Video Codec:MJPEG
MPEG-4
H.264
H.265
Audio Codec:PCM
G711
G726
AMR
AAC
Live View / Recording Playback:Yes
Snapshot Support:Yes
eMap Support:Yes
PTZ Control / Patrol:Yes
Log Viewer:Yes
Notes:VisualStation throughput is tested with Axis P1347 (H.2641280x72010FPS).
The channel numbers indicated in the Total FPS column of each resolution is the maximum number VS960HD supports for live view display.
Environment Packaging
Environment:RoHS Compliant
Packaging Content:Main Unit X 1
Quick Installation Guide X 1
AC Power Adapter X 1
RJ-45 LAN Cable X 1
VESA mounting kit
Item Dimension (L inchxW inchxH inch)
8 x 4 x 2
Weight
2.37 lb
Warranty Information
3 Years
