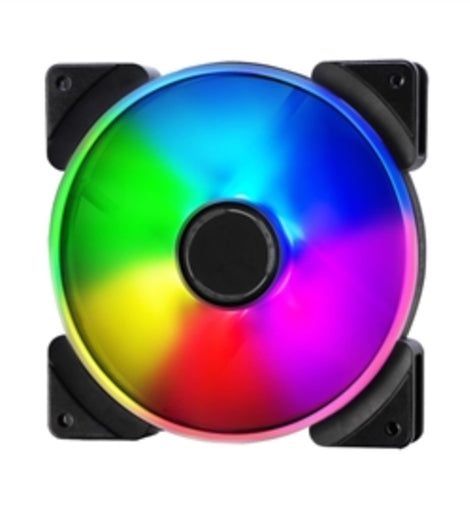

Fractal Design Fan FD-FAN-PRI-AL14-PWM Prisma AL-14 PWM ARGB 1000RPM Retail
Prisma AL-14/PWM
Our AL Series ARGB fans allow your system to truly shine. Six hub-mounted addressable RGB LEDs work in harmony with a white semi-opaque outer ring and fan blades to produce a beautifully uniform glow across the fans entire surface.
Six individually addressable hub-mounted RGB LEDs
Specially designed fan blades and outer ring
Long Life Sleeve-bearings provide silent operation with a long lifespan
Supports ASUS Aura, Gigabyte Fusion, MSI Mystic Light and ASRock Polychrome
Prisma AL-12/14 allows precision software control, enabling Prisma to synergize perfectly with your components. If you prefer physical control, just pair Prisma with the newly released Adjust R1 controller to set colors, brightness, and motion effects with the push of a button.
As with any Fractal Design fan, silence remains a central focus with integrated vibration damping corners, silent LLS bearings, and PWM options for complete control over the speed of your fans, ensuring Prisma is seen, not heard.
Let your system shine
Support for ASUS Aura, Gigabyte Fusion, MSI Mystic Light and ASRock Polychrome allows precision software control, enabling Prisma to synergize perfectly with your components.
Six individually addressable hub-mounted RGB LEDs
Specially designed fan blades and outer ring produce an exceptionally uniform glow
Chainable RGB cables simplify wiring and make the most of available connections
Black sleeved power cables offer an extra touch of style
Adjust R1 RGB controller (sold separately) enables physical control of colors and effects
Specifications
Size
140 x 140 x 25 mm
Screw hole pattern
125 x 125 mm
Connector
4-pin
LED type
Addressable RGB
Bearing
LLS
Number of blades
7
Rotational speed
500 - 1700 RPM
Noise level
34.1 dB(A)
Airflow (CFM)
103.85 CFM
Airflow (m3/h)
176.44 m3/h
Static pressure
2.38 mmH2O
Fan input power
2.16 W
Fan max input current
0.30 A
Fan input voltage
12 V
Fan starting voltage
7 V
LED input power
1.50 W
LED max input current
0.30 ALED input voltage
5 V
Low (0-20%) PWM speed
500 RPM
Low PWM noise level
15.1 dB(A)
Low PWM airflow
31.67 CFM
Low PWM static pressure
0.44 mmH2O
MTBF
100,000 hours
Cable length
500 mm
Cable type
Black sleeved
Other
Package contents
Prisma AL-14 PWM 140 mm fan, 4x fan screws
Item Dimension (L"xW"xH")
2 x 8 x 6
Weight
1 lb
Warranty Information
3 years
Our AL Series ARGB fans allow your system to truly shine. Six hub-mounted addressable RGB LEDs work in harmony with a white semi-opaque outer ring and fan blades to produce a beautifully uniform glow across the fans entire surface.
Six individually addressable hub-mounted RGB LEDs
Specially designed fan blades and outer ring
Long Life Sleeve-bearings provide silent operation with a long lifespan
Supports ASUS Aura, Gigabyte Fusion, MSI Mystic Light and ASRock Polychrome
Prisma AL-12/14 allows precision software control, enabling Prisma to synergize perfectly with your components. If you prefer physical control, just pair Prisma with the newly released Adjust R1 controller to set colors, brightness, and motion effects with the push of a button.
As with any Fractal Design fan, silence remains a central focus with integrated vibration damping corners, silent LLS bearings, and PWM options for complete control over the speed of your fans, ensuring Prisma is seen, not heard.
Let your system shine
Support for ASUS Aura, Gigabyte Fusion, MSI Mystic Light and ASRock Polychrome allows precision software control, enabling Prisma to synergize perfectly with your components.
Six individually addressable hub-mounted RGB LEDs
Specially designed fan blades and outer ring produce an exceptionally uniform glow
Chainable RGB cables simplify wiring and make the most of available connections
Black sleeved power cables offer an extra touch of style
Adjust R1 RGB controller (sold separately) enables physical control of colors and effects
Specifications
Size
140 x 140 x 25 mm
Screw hole pattern
125 x 125 mm
Connector
4-pin
LED type
Addressable RGB
Bearing
LLS
Number of blades
7
Rotational speed
500 - 1700 RPM
Noise level
34.1 dB(A)
Airflow (CFM)
103.85 CFM
Airflow (m3/h)
176.44 m3/h
Static pressure
2.38 mmH2O
Fan input power
2.16 W
Fan max input current
0.30 A
Fan input voltage
12 V
Fan starting voltage
7 V
LED input power
1.50 W
LED max input current
0.30 ALED input voltage
5 V
Low (0-20%) PWM speed
500 RPM
Low PWM noise level
15.1 dB(A)
Low PWM airflow
31.67 CFM
Low PWM static pressure
0.44 mmH2O
MTBF
100,000 hours
Cable length
500 mm
Cable type
Black sleeved
Other
Package contents
Prisma AL-14 PWM 140 mm fan, 4x fan screws
Item Dimension (L"xW"xH")
2 x 8 x 6
Weight
1 lb
Warranty Information
3 years
