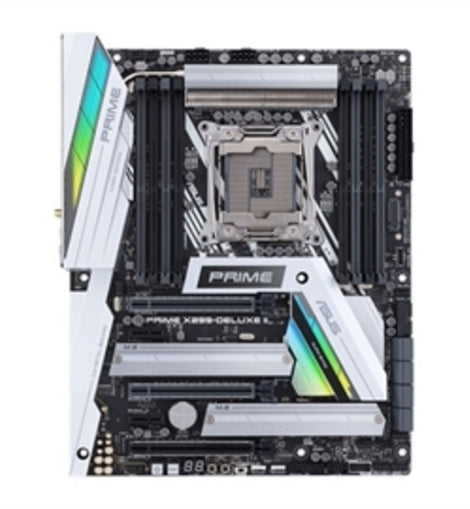

Asus Motherboard Prime X299-Deluxe II Core X-series LGA2066 Intel X299 Max 128GB DDR4 ATX Retail
PRIME
ASUS Prime X299-Deluxe II is the ATX motherboard that's been expertly engineered for professional content creators and power users who work hard by day and play harder by night. This powerful, innovative board puts a friendly face on advanced enthusiast controls, enabling you to maximize performance, cooling and personalization with ease. So, if you live to create, to explore, to enjoy and to push the boundaries, look no further than Prime X299-Deluxe II.
Cool to the core - Power delivery enhancements and dual ProCool connectors
With up to 18 cores, four memory channels, and 44 PCIe lanes, the latest Intel(R) Core(TM) processors demand a lot more juice than typical desktop CPUs. Prime X299-Deluxe II feeds their appetite with 12 power phases hooked up to the socket and two more for the DRAM. It also augments the motherboard's link to the PSU with dual eight-pin connectors that pass 12V power directly to the processor. These jacks are based on our ProCool design, which uses solid pins that can handle more current than conventional connectors with hollow pins.
VRM design
Higher power requirements are balanced by beefier heatsinks that carefully balance mass and surface area to maximize thermal dissipation. With a VRM-heatsink array and heatpipe positioned in the path of maximum airflow within the chassis, Prime X299-Deluxe II ensures optimal cooling and system stability for the latest Intel Core X-series processors.
M.2 Cooling
Keep your SSD chilled
Two M.2 slots sit under passive heatsinks to ward off the throttling that can occur with sustained transfers. A third pokes out from the PCB vertically near the memory slots, where connected drives benefit from ambient airflow around the CPU socket.
Cooler by design
Prime X299-Deluxe II features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS
CPU
Intel Socket 2066 CoreTM X-Series Processors
NOTE: The Intel Turbo Boost Max Technology 3.0 support depends on the CPU types
NOTE: Refer to www.asus.com for CPU support list
Chipset
Intel X299
Memory
- Intel CoreTM X-series Processors (6-core above)
- 8 x DIMM, Max. 128GB, DDR4 4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
- Supports Intel Extreme Memory Profile (XMP)
NOTE: Hyper DIMM support is subject to the physical characteristics of individual CPUs.
NOTE: Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Thunderbolt
- 2 x Intel ThunderboltTM 3 ports(TypeCTM) support DisplayPort and ThunderboltTM video outputs
- Supports DisplayPort 1.4/ with max. resolution 7680/ x 3840/at 60 HzNOTE
(NOTE: VGA resolution support depends on VGA cards resolution.)
- Data transfer rate up to 40 Gbps
- Daisy-chain up to 12 Thunderbolt devices
- Up to 5V/3A, 15W charging support
Multi-GPU Support
- Supports NVIDIA Quad-GPU SLITM Technology
- Supports NVIDIA 3-Way SLITM Technology
- Supports NVIDIA 2-Way SLITM Technology
- Supports AMD Quad-GPU CrossFireXTM Technology
- Supports AMD 3-Way CrossFireXTM Technology
Expansion Slots
44-Lane CPU-
- 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)
- 2 x PCIe 3.0/2.0 x1 Note1
28-Lane CPU-
- 2 x PCIe 3.0/2.0 x16 (x16, x16/x8)
- 1 x PCIe 3.0/2.0 x16 (x2 mode) Note2
- 2 x PCIe 3.0/2.0 x1 Note1
Storage
- Intel X299 Chipset :
1 x M.2 x4 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode and X4 PCIE mode)
1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
8 x SATA 6Gb/s port(s)Note1
Support Raid 0, 1, 5, 10
Intel Rapid Storage Technology supports
- Intel CoreTM X-series Processors (6-core above) :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
Support Raid 0, 1, 5, 10
Intel Rapid Storage Technology Enterprise supports
Intel OptaneTM Memory Ready
LAN
- Aquantia AQC111C 5G LAN
- Intel I219V, 1 x Gigabit LAN
- ASUS Turbo LAN Utility
- ASUS LAN Guard
Wireless Data Network
- Intel Wireless-AC 9260
- Wi-Fi 802.11 a/b/g/n/ac
- Supports dual band frequency 2.4/5 GHz
- Supports MU-MIMO
- Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed
Bluetooth
- Bluetooth 5.0
Audio
Realtek S1220A 8-Channel High Definition Audio CODEC
- Power pre-regulator reduces power input noise to ensure consistent performance
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- DTS Headphone:X
- Optical S/PDIF out port(s) at back panel
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
USB Ports
Intel ThunderboltTM 3 Controller :
- 2 x USB 3.1 Gen 2 port(s) (USB Type-CTM)
ASMedia USB 3.1 Gen 2 controller : Note1
- 1 x USB 3.1 Gen 2 front panel connector port(s)
Intel X299 Chipset :
-5 x USB 3.1 Gen 1 port(s) (1 at back panel, , 4 at mid-board)
Intel X299 Chipset :
- 4 x USB 2.0 port(s) (2 at back panel, , 2 at mid-board)
ASMedia USB 3.1 Gen 1 Hub :
- 3 x USB 3.1 Gen 1 port(s) (3 at back panel, )
Special Features
OC Design - ASUS PRO Clock II Technology
5-Way Optimization by Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability
- ASUS DIGI+ VRM: 12 Phase digital power design
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
2 " LiveDash
AURA :
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
- Aura Addressable Strip Header(s)
ASUS Exclusive Features :
- USB BIOS Flashback
- MemOK II
- AI Suite 3
- Ai Charger
- Onboard Button : Power/Reset
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Turbo LAN
- Pre- mounted I/O shield
- ASUS NODE : hardware control interface
ASUS Quiet Thermal Solution :
- Stylish Design Heat-pipe solution
- Stylish Fanless Design with M.2 Heat-sink solution
ASUS Q-Design :
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
DIY Friendly Design
- Procool
- SafeSlot
Q-Installer
- Auto download driver and software. Friendly for first PC builder.
Back I/O Ports
2 x Thunderbolt 3 ports TypeCTM
2 x DisplayPort IN ports for ThunderboltTM 3
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1
2 x USB 2.0 (one port can be switched to USB BIOS Flashback)
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x ASUS Wi-Fi GO module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0
1 x AQC-111C 5G LAN port
Internal I/O Ports
1 x Aura Addressable Strip Header(s)
1 x AAFP connector
2 x Aura RGB Strip Header
2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA and PCIE 3.0 x 4 mode)
2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
8 x SATA 6Gb/s connector(s)
1 x M.2_FAN connector
1 x VROC_HW_Key
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x W_PUMP+ connector
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
2 x 8-pin EATX 12V Power connectors
1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt)
1 x MemOK II switch(es)
1 x Thermal sensor connector(s)
1 x CPU OV
1 x Power-on button(s)
1 x Reset button(s)
1 x Clear CMOS button(s)
1 x Node Connector(s)
1 x USB BIOS Flashback button(s)
1 x USB 3.1 Gen 2 front panel connector
1 x Q-Code
Accessories
Users manual
1 x Vertical M.2 bracket set
6 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header)
1 x Fan Extension Card II power cable
1 x Fan Extension Card II NODE connector cable
1 x Fan Extension Card II screw package
1 x DisplayPort cable
1 x SLI HB BRIDGE(2-WAY-M)
1 x Q-Connector
1 x Extension cable for Addressable LED
3 x Thermistor cable(s)
1 x CPU Fan Holder
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, F4 AURA ON/OFF and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE
Support Disc
Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)
Operating System
Windows 10 64-bit
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
