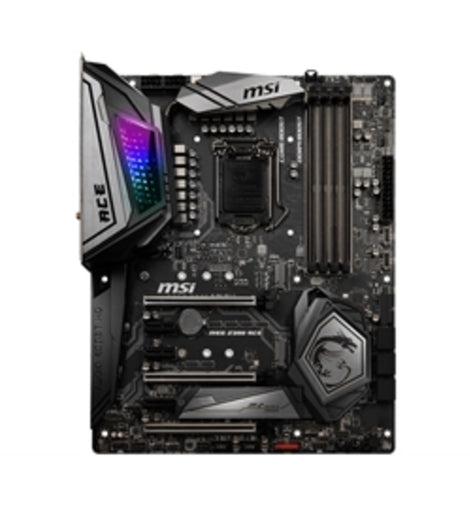

MSI Motherboard Z390ACE MEG Z390 ACE Intel ATX Gaming Core 9000 LGA1151 64GB DDR4 PCI-Express SATA Retail
Supports 9th / 8th Gen Intel(R) Core(TM) / Pentium(R) Gold / Celeron(R) processors for LGA 1151 socket
?Supports DDR4 Memory, up to 4500(OC) MHz
?Mystic Light Infinity: 16.8 million colors / 29 effects controlled in one click. Mystic Light Extension supports both RGB and RAINBOW LED strip
?Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
?Lightning Fast Game Experience: 3x Turbo M.2 with Shield Frozr, Dual Front USB 3.1 Gen2 Type-C
?Audio Boost HD: Isolated audio with a high quality audio processor with ESS DAC and Nahimic for the most immersive gaming experience
?M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster
?Game Boost: One second automated overclocking by controlling up-to-11 gears, your PC gets another adrenalin shot
DIY FRIENDLY
MSI motherboards feature tons of convenient and smart design, such as convenient pin-header keep out zone, friendly SATA and USB location and so on, so DIY users can pick and choose any gaming rig they want.
Cooling
Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsink. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want.
HW
MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard and gaming rig without any issue.
Compatibility
Every MSI motherboards are certified by strict mechanic that feature convenient pin-header keep out zone, friendly SATA and USB location for compatibility with the widest range of components and devices, so DIY user can pick and choose the components they want.
SOCKET
1151
CPU (MAX SUPPORT)
i9
CHIPSET
Intel Z390 Chipset
DDR4 MEMORY
4500(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) /2800(OC)/ 2666/ 2400/ 2133 MHz
MEMORY CHANNEL
Dual
DIMM SLOTS
4
MAX MEMORY (GB)
64
PCI-E X16
3
PCI-E GEN
Gen3
PCI-E X1
3
SATAIII
6
M.2 SLOT
3
RAID
0/1/5/10
LAN
10/100/1000x1
USB 3.1 PORTS (FRONT)
2(Gen2, Type C), 4(Gen1, Type A)
USB 3.1 PORTS (REAR)
1(Gen2, Type C), 5(Gen2, Type A)
USB 2.0 PORTS (FRONT)
4
USB 2.0 PORTS (REAR)
4
AUDIO PORTS (REAR)
Realtek ALC1220 Codec
DIRECTX
12
?Supports DDR4 Memory, up to 4500(OC) MHz
?Mystic Light Infinity: 16.8 million colors / 29 effects controlled in one click. Mystic Light Extension supports both RGB and RAINBOW LED strip
?Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
?Lightning Fast Game Experience: 3x Turbo M.2 with Shield Frozr, Dual Front USB 3.1 Gen2 Type-C
?Audio Boost HD: Isolated audio with a high quality audio processor with ESS DAC and Nahimic for the most immersive gaming experience
?M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster
?Game Boost: One second automated overclocking by controlling up-to-11 gears, your PC gets another adrenalin shot
DIY FRIENDLY
MSI motherboards feature tons of convenient and smart design, such as convenient pin-header keep out zone, friendly SATA and USB location and so on, so DIY users can pick and choose any gaming rig they want.
Cooling
Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsink. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want.
HW
MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard and gaming rig without any issue.
Compatibility
Every MSI motherboards are certified by strict mechanic that feature convenient pin-header keep out zone, friendly SATA and USB location for compatibility with the widest range of components and devices, so DIY user can pick and choose the components they want.
SOCKET
1151
CPU (MAX SUPPORT)
i9
CHIPSET
Intel Z390 Chipset
DDR4 MEMORY
4500(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) /2800(OC)/ 2666/ 2400/ 2133 MHz
MEMORY CHANNEL
Dual
DIMM SLOTS
4
MAX MEMORY (GB)
64
PCI-E X16
3
PCI-E GEN
Gen3
PCI-E X1
3
SATAIII
6
M.2 SLOT
3
RAID
0/1/5/10
LAN
10/100/1000x1
USB 3.1 PORTS (FRONT)
2(Gen2, Type C), 4(Gen1, Type A)
USB 3.1 PORTS (REAR)
1(Gen2, Type C), 5(Gen2, Type A)
USB 2.0 PORTS (FRONT)
4
USB 2.0 PORTS (REAR)
4
AUDIO PORTS (REAR)
Realtek ALC1220 Codec
DIRECTX
12
