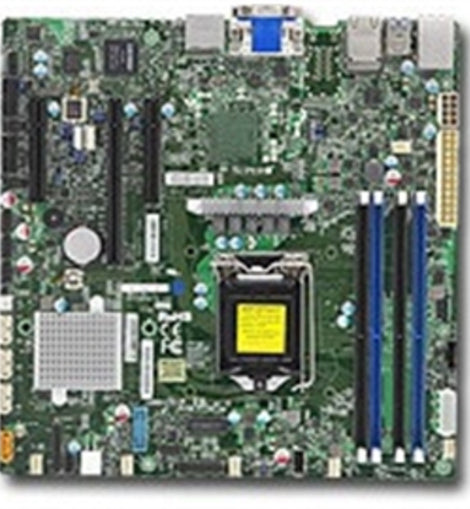

Supermicro Motherboard MBD-X11SSZ-QF-B Core i7/i5/i3 Q170 Socket H4 LGA1151 PCI Express SATA MicroATX Bulk
Key Features:
1. Single socket H4 (LGA 1151) supports: Intel 6th Gen. Core i7/i5/i3 series, Intel Celeron and Intel Pentium processors
2. Intel Q170 Express chipset
3. Up to 64GB DDR4 2133MHz Non-ECC Unbuffered UDIMM 4 DIMM slots
4. 1x PCI-E 3.0 x16 (in x16), 2x PCI-E 3.0 x4 (in x8)
5. 1x GbE LAN w/ Intel i210-AT, 1x GbE LAN w/ Intel PHY i219LM
6. 4x SATA3 (6Gbps) via Q170 RAID 0, 1, 5, 10
7. 2x DP, 1 DVI-I, Intel HD Graphics, with 3x independent displays, VGA for BMC AST2400
8. 1x SATA DOM, 2x COM, TPM header, ALC 888S HD Audio front panel header
9. 4x USB 3.0 (2 rear + 2 via header), 9x USB 2.0 (2 rear + 6 via headers + 1 Type A)
Processor/Cache
CPU:
- Intel 6th Gen Core i7/i5/i3 series, Intel Celeron, Intel Pentium processors CPU TDP support up to 95W TDP
- Single Socket H4 (LGA 1151)
System Memory
Memory Capacity:
- 4x 288-pin DDR4 DIMM slots
- Up to 64GB DDR4 ECC/Non-ECC UDIMM
Memory Type: 2133/1866/1600MHz ECC DDR4 SDRAM 72/64-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes: 16GB, 8GB, 4GB
Memory Voltage: 1.2V
On-Board Devices
Chipset: Intel Q170 Express chipset
SATA:
-SATA3 (6Gbps) via Intel Q170 Express controller
- RAID 0, 1, 5, 10 support
IPMI:
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2400 BMC
Network Controllers:
- Intel PHY i219LM + Intel i210AT Gigabit Ethernet LAN Controllers
- Virtual Machine Device Queues reduce I/O overhead
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio: RealTek ALC 888S High Definition Audio
Graphics: ASPEED AST2400 BMC and Intel HD Graphics 530
Input/Output
SATA: 4x SATA3 (6Gbps) ports
LAN:
- 2x RJ45 Gigabit Ethernet LAN ports
- 1x RJ45 Dedicated IPMI LAN Ports
USB:
- 4x USB 3.0 ports (2 rear + 2 via header)
- 9x USB 2.0 ports (2 rear + 6 via headers + 1 Type A)
Audio: Front Panel Audio Header
Video/Display:
- 2x DP (Display Port), 1x DVI-I from Intel HD Graphics, 1x VGA from AST2400
- 3x Independent Displays from Processor Graphics, VGA is from AST2400 for BMC KVM
Audio: Front Panel Header
Video/Display:
- 2x DP (Display Port), 1x DVI-I from Intel HD Graphics, 1x VGA from AST2400
- 3x Independent Displays from Processor Graphics, VGA is from AST2400 for BMC KVM
Serial Port/Header: 2x COM ports (2 headers)
SuperDOM:
- 1x SuperDOM (Disk on Module) ports with built-in power
TPM: 1x TPM 1.2 20-pin Header
Others: SGPIO, SMbus headers
Expansion Slots
PCI-Express:
- 1 PCI-E 3.0 x16 (in x16) slot
- 2 PCI-E 3.0 x4 (in x8) slots
System BIOs
BIOs Type:
128Mb SPI Flash EEPROM with AMI BIOS
BIOs Features:
- Plug and Play (PnP)
- DMI 2.3
- PCI 3.0
- ACPI 5.0
USB Keyboard support
- Hardware BIOs Virus Protection
- SMBIOS 2.3.1
- UEFI 2.3.1
- RTC (Real Time Clock) Wakeup
Management
Software:
- AMT
- IPMI 2.0 with KVM Support
- NMI
- vPro
- Watch Dog
- Super Doctor 5
Power Configurations:
- ACPI Power Management
- Keyboard Wakeup from Soft-Off
- CPU Fan auto-off in sleep mode
- Power-on mode for AC power recovery
PC Health Monitoring
Voltage: Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages
FAN:
- Total of 6 fan headers supporting up to 6 fans
- 6 fans with tachometer status monitoring
- Status monitor for speed control
- Status monitor for on/off control
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connectors
Temperature:
- Monitoring for CPU and chassis environment
- CPU thermal trip Support
- I2C temperature sensing logic
- Thermal Monitor 2 (TM2) support
- PECI
LED:
- CPU / System Overheat LED
- Suspend Static Indicator LED
- UID/Remote UID
Other Features:
- Chassis Intrusion Detection
- Chassis Intrusion Header
- RoHS
- 8-pin 12V DC power option
Operating Environment
Operating Temperature: 0 C to 60 C (32 F to 140 F)
Form Factor
MicroATX
Item Dimension (L"xW"xH")
10 x 10 x 1
Weight
6.00 lb
