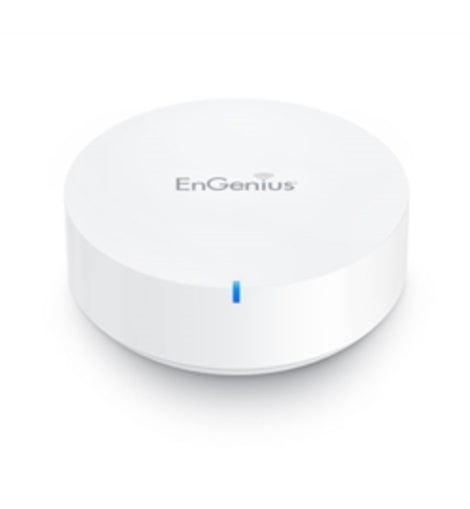

EnGenius Router Wireless ESR530 EnMesh AC1300 Dual-Band Whole-Home Smart Wi-Fi Retail
The Core to Powering Your Smart Home
The EnGenius ESR530 AC1300 Dual-Band Whole-Home Mesh Router Wi-Fi System provides fast, reliable whole home wireless connectivity, eliminating dead spots in a simple sleek solution.
oAchieve Wall-to-Wall Wireless Coverage that Eliminates Dead Spots
oMesh Technology Utilizes Smart Sensors to Automatically Optimize Connections
oThe EnMesh Mobile App guides you step by step through a simple, stress-free set-up
oCustomize parental controls easily via the EnMesh Mobile App
oHigh Performing, AC1300 Speeds Support Buffer-Free Video and Audio in Every Room
oSimplified Mesh Router Wi-Fi: No Wires to Run and No Software to Setup
Standards
IEEE 802.11 b/g/n on 2.4 GHz
IEEE 802.11ac Wave 2/a/n/ on 5 GHz
Processor
Qualcomm 717 MHz Quad-Core CPU
4x ARM Cortex A7
Antenna
Integrated Omni-Directional 5dBi on 2.4 GHz
Integrated Omni-Directional 5dBi on 5 GHz
Physical Interface
2x 10/100/1000 Mbps Ethernet Port
(1 WAN/1 LAN)
1x USB 2.0 Port
1x Reset Button
1x DC Jack
LED indicator
1 LED indicator with different colors and types
-White - Mesh and Internet connection status
-Red - No Internet connection or no Mesh connection
-Orange - Mesh connection signal is weak
Wireless and Radio Specifications
Operating Frequency
Dual-Radio Concurrent 2.4 GHz and 5 GHz
Operation Modes
Mesh Router Mode
Wireless Initial Setup (for Home Use)
EnMesh App Required
Radio Chains/Spatial Stream
2x2:2 MU-MIMO
Transmit Power
Up to 20 dBm on 2.4 GHz
Up to 19 dBm on 5 GHz
Frequency Radio
2.4 GHz: 2400 MHz - 2835
5 GHz: 5150 MHz - 5250 MHz, 5250 MHz - 5350 MHz, 5470 MHz - 5725 MHz, 5725 MHz - 5850 MHz
Supported Data Rates (Mbps):
2.4 GHz: Max 400
5 GHz: Max 867
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 400 Mbps (MCS0 toMCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS is 1 to 2)
Supported Radio Technologies
802.11b: Direct-Sequence Spread Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
Channelization
802.11n Supports High Throughput (HT) HT 20/40 MHz
802.11n Supports Very High Throughput (VHT) Under the 2.4 GHz RadioVHT 40 MHz (256-QAM)
802.11n/ac Packet Aggregation: AMPDU, ASPDU
802.11ac Supports Very High Throughput (VHT)VHT 20/40/80 MHz
Support Modulation
802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Software Features
All setup on EnMesh mobile APP
Mesh easy connection
Internet Speed Test
Mesh connection status overview
Auto Channel Selection
Auto Transmit Power
Guest Network
Encryption: WEP / WPA / WPA2 / TKIP /AES
WAN: PPPoE / Static IP / DHCP
Band steering
Port Forwarding
DHCP Server
URL / IP / Port / ICMP Filtering
UID / DDNS / EnGenius DDNS Service
UPnP Support
Remote Control
Firmware Upgrade
Airprint Server Support
Emergency Recovery Page
Backup / Restore Setting
EnMesh and EnFile Mobile App. (iOS/Android) Supported
Parental Controls
Wi-Fi Access Scheduler
Pause Internet
Guest Network per Band
Website and Keyword Filter - (URL, IP, Port, ICMP)
QoS (Quality of Service)
Network Services
DHCP
Static IP
Environment and Physical
Physical/Environment Condition
Operation Temp.: 0oC - 40oC
Humidity 90% or less (Non-Condensing)
Storage Temp.: -20oC - 60oC
Humidity 95% or less (Non-condensing)
Hardware Specifications
ESR530
Power Adapter: 12V / 1A
Certifications
FCC, CE
Item Dimension (L"xW"xH")
6 x 6 x 5
Weight
2 lbs
Warranty Information
1 Year
