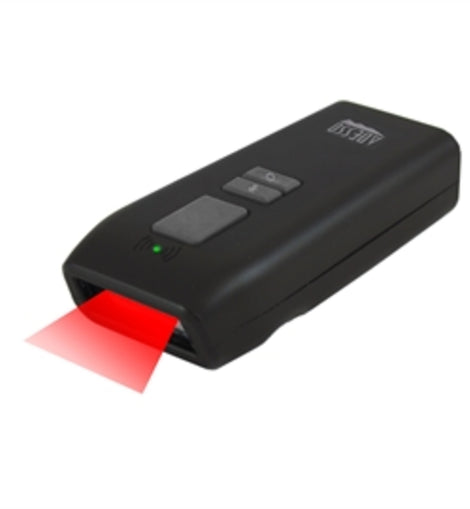

Big things do come in small packages. Meet the Adesso NuScan 3500CB. This pocket sized barcode scanner weighs at just less than 3 ounces and connects to your mobile iOS/Android devices wirelessly through Bluetooth. With its CCD sensor, the NuScan 3500CB is capable of decoding majority of the 1D barcodes that are used in various industries such as UPCs, EANs, Code 39, Code 128, Codabars, and much more. The antimicrobial substances used to manufacture the scanner help to keep away germs and viruses and rated at IP 66, this scanner is also waterproof, oilproof, and dustproof, making it a great scanning choice for industrial environments. Designed with durability in mind, the scanner has a rugged design that can withstand drops up to 10 feet. To increase its longevity, the scanner has a magnetic detachable cable where it snaps onto the scanner with ease to reduce damage to the connector port that are often caused by day-to-day connecting. Last but not least, the scanner is capable of scanning up to 300 scans per second and scanning barcodes up to 20 inches away, offering fast and accurate scanning results.
Bluetooth Wireless Technology
Connect the scanner to your iOS/Android device with ease and enjoy scanning barcodes wirelessly up to 30 feet away.
Portable Pocket Size Design
Weighing at less than 3 ounces, the NuScan 3500CB is extremely light weight and portable, making it easily the perfect scanning solution wherever you go.
Reliable Data Collection
The built-in decoder reads majority of 1D barcodes in existence and its driver-less operation makes it easy to use with Windows, Mac, Android, and iOS operating systems.
Antimicrobial
The Nuscan 3500 is made with antimicrobial material which prevents the growth of harmful bacteria and protects against the buildup germs between washings.


Specifications:
Light Source:
630 +/- 10 nm visible red LED
Microprocessor:
32-bit processor
Depth of Field:
0-20 inches (at 20mil EAN-13, PC 100%)
Scan Rate:
300 scans per second
Scan Angle:
Roll: +/- 50^o, Pitch: +/- 60^o, Yaw: +/- 45^o
Minimum Bar Width:
3 mil/0.075mm at PCS 90%, Code39
Print Contrast:
PCS 30% code 39 at 5mil
Indicators (LED):
Green/Blue/Orange
Alert Operation:
Programmable tone and beep time
Host Interface:
Bluetooth 4.0 Compliance
Scanning Range:
10m / 30 ft.
Working Voltage:
3.3 +/- 5% VDC
150 +/- 5% mA (at maximum)
Battery Capacity:
Lithium Ion Battery Rated at 1200mAH
Cable:
3 feet 4 inches (1 meter)
Shock:
Withstanding 7ft (2m) freefall drops
Supported Symbologies
Addedum 2 or 5
Code 11
Code 39 / Full ASCII
Codabar
Code 93
Code 128
Code 32
Code 2 of 5 (ITF, Industrial, Matrix, Standard IATA)
DataBar 14
EAN 128
EAN 8 and 13
GS1 DataBar Limited (RSS Limited)
GS1 DataBar Omnidirectional (RSS Omnidirectional)
MSI
Plessey
UPC A and E
System Requirements:
Windows 7 and above
Mac OS X iOS and Andriod
Bluetooth 4.0 (USB port required for charging cable)
Includes:
Adesso NuScan 3500CB Barcode Scanner
Magnetic Charging Cable
Wrist Strip
Quick Start Guide
Item Dimension (L"xW"xH")
7 x 5 x 2

Weight
1 lb

Warranty Information
1 Year
