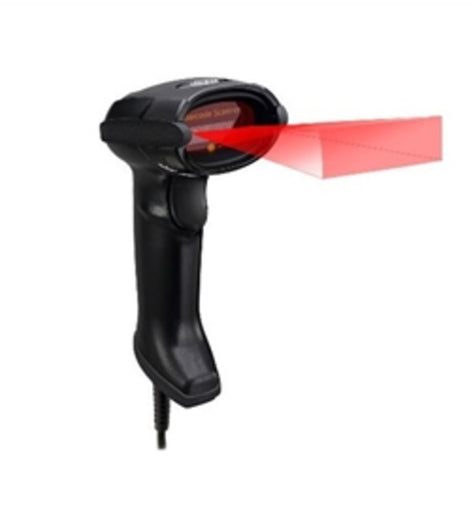

Adesso Scanner NUSCAN 7600TU Nuscan 7600TU 1D/2D USB Barcode Scanner Retail
Antimicrobial
The Nuscan 7600TU is made with antimicrobial material which prevents the growth of harmful bacteria and protects against the buildup germs.
2D and 1D Scanning Engine
Easily and instantly read 2-dimensional barcode symbologies such as the most common PDF 417, QR, Micro QR, and Data Matrix. Wide variety 1D barcode symbologies are supported as well making the Nuscan 7600TU truly reliable.
Drop Protection
With its rugged design and durable silicone plastic material, the Nuscan 7600TU is less likely to become damaged due to accidental drops.
Superior Scanning Performance
The 24 inches per second (IPS) motion tolerance and the innovative high pixels CMOS offer fast and accurate scanning results.
12" Scanning Range
The 2D scanning engine is able to scan barcodes up to 12 inches scan depth.
Imager:
640 x 480 COMS
Light Source:
650 +/- 10 nm visible red LED and White LED
Depth of Field (40 Mils):
0-12 inches (at 20mil EAN-13, PC 100%)
Scan Angle:
Roll: +/-50o, Pitch: +/-45o, Yaw: +/-360o
Motion Tolerance:
24 inches per second (IPS)
Minimum Bar Width (1D):
5 mil/0.127 mm at PCS 90%, Code 39.
Minimum Bar Width (2D):
10 mil/0.254 mm at PCS 80%, Data Matrix.
Print Contrast:
PCS 30% code 39 at 5mil
Indicators:
Blue LED
Alert Operation:
Programmable Beeper Tone
Interface:
USB
Input voltage:
5 VDC +/- 0.5 %
Operating Current:
220 +/- 5% mA
Operating Temperature :
-20oC to 50oC
Storage Temperature:
-40o to 70oC
Humidity Storage
5% to 95% relative humidity
Light Levels:
Max 100,000 lux
Shock
With standing 1.8m freefall drops
Supported Symbologies
Code 128, EAN8/13, ISSN, ISBN, UPC-A/E, Code 25(ITF/Matrix/Industrial/Standard), ITF 6/14, Code 39, Code 39 Full ASCII, Codabar, Code 93, Code 11, Plessy, MSI Plessy, GS1 DataBars (Omnidirectional, Stacked Omnidirectional, Expanded, Expanded Stacked, Stacked, Limited, Truncated)
Supported 2D Symbologies
DataMatrix
QR Code
PDF417
Micro QR Code
