Whole-home Coverage up to 5,500 sq. ft.

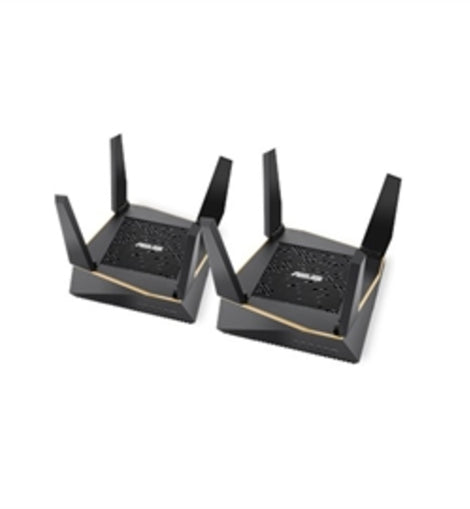

ASUS AiMesh AX6100 WiFi System is the world's first mesh system featuring the next-gen WiFi standard - 802.11ax (or WiFi 6) to deliver extremely stable WiFi to every corner of home. The 2-pack design utilizes 802.11ax WiFi (WiFi 6) as the backbone connection between the two RT-AX92U routers, transferring data on the fastest ever WiFi speeds up to 4804 Mbps*, ensuring every connected device enjoys the best possible speed from you ISP for smooth 4K streaming, online gamine simultaneously.
Next-Gen WiFi Speed
AiMesh AX6100 WiFi System consists two RT-AX92U routers with 4x4 tri-band Wi-Fi that provides 160MHz* bandwidth and 1024-QAM* for dramatically faster wireless connections. With a total networking speed of about 4804Mbps on the 5GHz-2 band, RT-AX92U 2-Pack is 2.7X faster than normal 802.11ac 4x4 routers.
We utilize this 802.11ax speed to transfer data between two RT-AX92U routers, realizing the fastest WiFi speed before the compatible 11ax devices are available on the market. So you can enjoy the technology from the future now and still connect it with the latest 802.11ax devices when they come out in the near future.
Safer Internet for Your Family and Devices
All your family members, young or old, are exposed to the dangers of internet every single moment they're online. AiMesh AX6100 WiFi System includes AiProtection Pro powered by Trend Micro(TM) with automatic, regularly updated security signatures to protect your devices and personal data from internet threats. This strong security offers advanced parental controls, including the ability to block specific websites and mobile app types.
Thanks to AiMesh, this protection applies to all your connected devices, no matter which RT-AX92U router the device is connected to.
Network Standard
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax
Product Segment
AX6100 ultimate AX performance : 400 Mbps+ 867 Mbps+ 4804 Mbps
Coverage
Very large homes
Data Rate
802.11a : 6,9,12,18,24,36,48,54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps
802.11g : 6,9,12,18,24,36,48,54 Mbps
802.11n : up to 300 Mbps
802.11n 256QAM : up to 400 Mbps
802.11ac : up to 867 Mbps
802.11ax (5GHz) : up to 4804 Mbps
Antenna
Internal antenna x 2
External antenna x 4
Transmit/Receive
2.4 GHz 2 x 2
5 GHz-1 2 x 2
5 GHz-2 4 x 4
Memory
256 MB Flash
512 MB RAM
Wi-Fi Technology
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
20/40/80/160 MHz bandwidth
Operating Frequency
2.4G Hz, 5 GHz-1, 5 GHz-2
Encryption
WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support
Management
UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log
VPN Support
IPSec Pass-Through
PPTP Pass-Through
L2TP Pass-Through
PPTP server
OpenVPN server
PPTP client
L2TP client
OpenVPN client
WAN Connection Type
Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
Ports
RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4
USB 2.0 x 1
USB 3.1 Gen 1 x 1
Features
Router app
MU-MIMO
Traffic Analyzer
Adaptive QoS
WTFast Gamers Private Network
AiProtection Pro
Parental Control
Guest Network :
VPN server : IPSec Pass-Through, PPTP Pass-Through, PPTP Server, OpenVPN Server
VPN client : PPTP client, L2TP client, OpenVPN client
Enhanced media server (AiPlayer app compatible)
AiCloud personal cloud service
3G/4G data sharing
Printer Server
- Multifunctional printer support (Windows only)
- LPR protocol support
Download Master
- Support bt, nzb, http, ed2k
- Support encryption, DHT, PEX and magnet link
- Upload and download bandwidth control
- Download scheduling
AiDisk file server
- Samba and FTP server with account management
IPTV support
Roaming Assist
OFDMA
Button
WPS Button, Reset Button, Power Button
LED Indicator
Wi-Fi x 3
Power x 1
LAN x 1
WAN x 1
Power Supply
AC Input : 110V-240V(50-60Hz)
DC Output : 19 V with max. 1.75 A current
OS Support
Windows 10 64-bit
Windows 8.1
Windows 8
Windows 7
Mac OS X 10.6
Mac OS X 10.7
Mac OS X 10.8
Linux
Router Special Features
AiCloud, Printer server, Download Master, AiDisK, Multiple SSIDs, Parental Control
