o Aura Sync RGB LED: Stunning synchronized effects and two Aura 4-pin RGB-strip headers

o SupremeFX: Exclusive new codec plus intuitive Sonic Studio III and Sonic Radar III

o Compatible with both AM3/AM4 coolers

o ROG Water Cooling Zone : Dominate your cooling system

o 5-Way Optimization: One-click system-wide overclocking.

o Best gaming networking: Intel(R) Gigabit Ethernet, 2x2 802.11ac MU-MIMO Wi-Fi, LANGuard and GameFirst technologies

o Best gaming connectivity: M.2, USB 3.1 front-panel connector and both USB 3.1 Type-A/C

o Best gaming durability: Safeslot and premium components for maximum durability

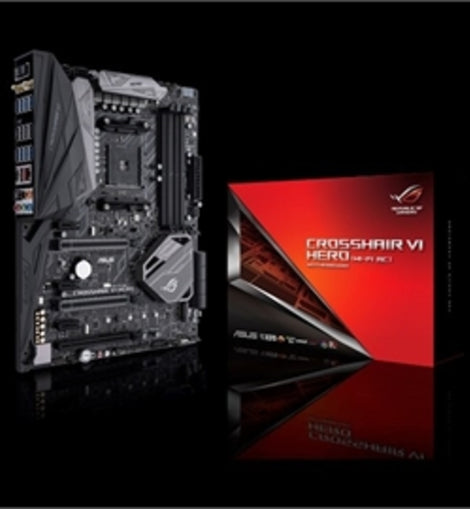

CROSSHAIR VI HERO (WI-FI AC)

HOLLOW HEAT-SINK WITH RED-HOT STYLE

Our new heat-sink is finely engineered with an innovative perforated design for maximum heat dissipation. On its top are expertly angled facets that allow light from the platform controller hub to penetrate through -- so your builds stand out unlike any other!



FULLY DOMINATE YOUR WATER-COOLING SYSTEM

ROG WATER COOLING ZONE

ROG's innovative Water-Cooling Zone lets you monitor your cooling system like never before. ROG Water-Cooling Zone's dual water-temperature headers and flow-rate header feed information straight into ROG's intuitive Fan Xpert 4 utility - so you can stay on top of the heat and stay cool in every game!



EXTENDED COMPATIBILITY

READY FOR ANY AM4 OR AM3 COOLER!


ROG Crosshair VI Hero (WI-FI AC) has special mounting holes that are compatible with any AM4 or AM3 cooler/LN2 pot. Upgrade to a new AM4 cooler, or extend the life of your existing AM3 kit -- the choice is yours!

CPU
AMD AM4 Socket for AMD Ryzen^TM/7th Generation A-series/Athlon^TM Processors
Supports AM4 Socket 14 nm CPU
Supports CPU up to 8 cores
Chipset
AMD X370
Memory
AMD Ryzen^TM Processors :
4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/2666/2400(O.C.)/2133(O.C.) MHz ECC and non-ECC, Un-buffered Memory
AMD 7th Generation A-series/Athlon^TM Processors :
4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Multi-GPU Support
Supports NVIDIA 2-Way SLI^TM Technology
Supports AMD CrossFireX^TM Technology
Expansion Slots
AMD Ryzen^TM Processors :
2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
AMD 7th Generation A-series/Athlon^TM Processors :
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD X370 chipset :
1 x PCIe 2.0 x16 (max at x4 mode)
3 x PCIe 2.0 x1
Storage
AMD Ryzen^TM Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA PCIE 3.0 x 4 mode)
AMD 7th Generation A-series/Athlon^TM Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)
AMD X370 chipset :
8 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
LAN
Intel I211-AT, 1 x Gigabit LAN Controller(s)
Anti-surge LANGuard
ROG GameFirst IV
Wireless Data Network
Wi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO
Bluetooth
Bluetooth V4.1
Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- ESS ES9023P
- Supports up to 32-Bit/192kHz playback
Audio Feature :
- Gold-plated jacks
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III
USB Ports
AMD Ryzen^TM/7th Generation A-series/Athlon^TM Processors :
4 x USB 3.0 port(s) (4 at back panel, blue)
AMD X370 chipset :
1 x USB 3.1 Gen 2 front panel connector port(s)
AMD X370 chipset :
6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board)
AMD X370 chipset :
6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)
ASMedia USB 3.1 controller :
2 x USB 3.1 port(s) (2 at back panel, black+red, Type-A + USB Type-CTM)
ROG Exclusive Features
Clear CMOS button
ROG RAMCache II
ROG CPU-Z
ROG CloneDrive
MemOK Button
Slow Mode
Overwolf
ReTry Button
Safe Boot Button
Start Button
Reset Button
LN2 Mode
GameFirst IV
ROG Aura
- Aura Lighting Control
- Aura RGB Strip Headers
Extreme Engine Digi+ :
- MicroFine Alloy Chokes
- NexFET^TM Power Block MOSFET
- 10K Black Metallic Capacitors
Mem TweakIt
KeyBot II
- One-click Overclocking
- ClrCMOS
- Power On
UEFI BIOS features :
- O.C. Profile
- Tweakers Paradise
- ROG SSD Secure Erase
- Graphic Card Information Preview
ROG RAMDisk
Extreme Tweaker
Loadline Calibration
USB BIOS Flashback
Special Features
ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
TPU
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors
Gamers Guardian:
- SafeSlot
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-DIMM
- ASUS Q-Connector
Back I/O Ports
1 x LAN (RJ45) port(s)
4 x USB 2.0 (one port can be switched to USB BIOS Flashback)
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x Clear CMOS button(s)
1 x USB BIOS Flashback Button(s)
1 x ASUS Wi-Fi GO module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.1)
5 x Gold-plated audio jacks
8 x USB 3.1 Gen 1 (blue)
1 x USB 3.1 Gen 2 (red)Type-A
1 x USB 3.1 (black)USB Type-CTM
Internal I/O Ports
2 x RGB Header(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support
1 x TPM connector(s)
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x W_PUMP+ connector
1 x 8-pin EATX 12 V Power connector
1 x 4-pin EATX 12 V_1 Power connector(s)
1 x 24-pin EATX Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Slow Mode switch(es)
1 x Thermal sensor connector(s)
1 x Reset button(s)
1 x LN2 Mode switch(es)
1 x ROG extension (ROG_EXT) header(s)
1 x Safe Boot button
1 x ReTry button
1 x Slow Mode jumper(s)
1 x System panel connector
2 x 3D Mount screw port(s)
1 x W_IN header
2 x W_OUT header
1 x W_FLOW header
1 x Start button
1 x USB 3.1 Gen 2 front panel connector
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
Accessories
Users manual
ASUS Q-Shield
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n compliant)
1 x SLI HB BRIDGE(2-WAY-M)
1 x ROG big sticker
1 x Q-Connector
1 x 10-in-1 ROG cable label
1 x Extension Cable for RGB strips (80 cm)
1 x 3D printing mount package
1 x ROG coaster(s)
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS,
ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log,
F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability
WfM 2.0, WOL by PME, PXE
Support Disc
Drivers
AURA
ROG GameFirst IVx5
ROG RAMDisk
ROG RAMCache II
ROG CPU-Z
ROG Mem TweakIt
ROG Keybot II
Sonic Studio III
Sonic Radar III
Overwolf
CloneDrive
Kaspersky Anti-Virus
DAEMON Tools Software
Winzip
ASUS Utilities
Operating System
Windows 10 64-bit
