POWER DESIGN THAT BUCKS TRENDS

The monstrous compute power of high core count (HCC) processors necessitates a power circuit that rapidly responds to massive current swings. And those demands increase exponentially when the CPU is overclocked. Featuring an array of 16 strategically paired power stages, the Omega's VRM is geared for any workload and all operating conditions.

POWER ARCHITECTURE

Overclocked multi-core processors place incredible loads on the VRM when transitioning between load states. However, conventional motherboard design practices place primary focus on component specs without implementing circuit topologies that provide optimal transient response. The Omega bucks industry trends by utilising teamed PowIRstages to double the burst current of each phase and rapidly respond to load changes.

COOLING

Effective cooling is extremely important for up to 18-core processing beasts, even at stock speeds. That's why ROG Rampage VI Extreme Omega is fully armed to provide the best foundation for extreme PC systems, enabling higher performance at lower temperatures.


CONNECTIVITY

Every aspect of Omega is designed to enhance your gaming and creative experience. The Intel 10Gbps Ethernet controller opens the door to massive files transfers and ultralow latency, while four M.2 slots offer fast load times and flexible storage expansion. Finally, integrated SupremeFX audio enhances recording quality to ensure superb clarity for streaming, gaming chat and more.


LIVEDASH OLED


CPU
Intel Core^TMX-Series Processors Family on LGA 2066 Socket
Supports Intel Virtual RAID on CPU (VROC)
Supports 14nm CPU
Supports Intel Turbo Boost Max Technology 3.0
The support of these features depends on the CPU types.

Chipset
Intel X299 Chipset

Memory
Intel Core^TM X-Series Processors (6-core above)
8 x DIMM, Max. 128GB, DDR4
4266+(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/ 3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz, Non-ECC, Un-buffered Memory
Quad channel memory architecture
Supports Intel Extreme Memory Profile (XMP)
Hyper DIMM support is subject to the physical characteristics of individual CPUs.

Multi-GPU Support
Supports NVIDIA 3-Way/2-Way SLI^TM Technology
Supports AMD 3-Way/2-Way CrossFireX^TM Technology

Expansion Slots
44-Lane CPU (18-core, 12-core 10-core CPU)
3 x PCIe 3.0 x16 slots (supports x16, x16/x16 or x16/x8/x8 modes)
28-Lane CPU (6-core and 8-core CPU)
3 x PCIe 3.0 x16 slots (supports x16, x16/x8, x8/x8/x8 modes)
Intel X299 Chipset
1 x PCIe 3.0 x 4 slot

Storage
Intel Core^TM X-Series Processors support with Intel Rapid Storage Enterprise Technology
1 x DIMM.2 Module supports
- 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 (supports PCIe 3.0 x 4 mode)
1 x M.2_2 Socket 3 with M Key, type 2242/2260/2280/22110 (supports PCIe 3.0 x 4 mode)
1 x U.2 port, support PCIe 3.0 x4 NVME storage devices
DIMM.2_2 will be disabled when using 28-Lane CPU.
The U.2 port shares bandwidth with onboard M.2_2 slot.
U.2 port and M.2_2 slot will be disabled when using 28-Lane CPU.
Intel X299 Chipset with RAID 0, 1, 5, 10 and Intel Rapid Storage Technology support
1 x M.2_1 Socket 3 with M Key, type 2242/2260/2280 (supports PCIe 3.0 x 4 and SATA modes)
6 x SATA 6Gb/s ports
Intel Optane^TM Memory Ready

LAN
Aquantia AQC-107 10G LAN
Intel I219-V Gigabit LAN
Anti-surge LANGuard
ROG GameFirst Technology

Wireless Data Network
Intel Wireless-AC 9260
2x2 MU-MIMO 802.11 a/b/g/n/ac support dual frequency band 2.4/5 GHz
Up to 1.73Gbps transfer speed
Supports channel bandwidth: HT20/HT40/HT80/HT160

Bluetooth
Bluetooth v5.0

Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
- Supports: Jack-detection, Multi-streaming, and Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- ESS SABRE9018Q2C
- Supports up to 32-Bit/192kHz playback
Audio Features:
- LED-illuminated design
- Optical S/PDIF out port at back Panel
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link
Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

USB
Intel X299 Chipset
- 6 x USB 3.1 Gen 1 ports (at back panel)
- 4 x USB 2.0 ports (at mid-board)
ASMedia USB 3.1 Gen 2 Controller
- 1 x USB 3.1 Gen 2 front panel connector
- 2 x USB 3.1 Gen 2 ports (1 x Type-A red and 1 x Type-C ports at back panel)
ASMedia USB 3.1 Gen 1 Controller
- 8 x USB 3.1 Gen 1 ports (4 at back panel, 4 at mid-board)

ROG Exclusive Features
ROG DIMM.2 module with heatsink
ROG Aluminum heatsink cover
Clear CMOS Button
Extreme Engine Digi+
- MicroFine Alloy Choke
- PowIRstage IR3555 MOSFETs
- 10K Black Metallic Capacitors
ROG Extreme OC kit :
- MemOK II Button
- ReTry button
- Safe Boot button
- Start Button
- Reset Button
- Slow Mode
- LN2 Mode
ProbeIT
ROG Exclusive Software
- Mem Tweakit
- RAMCache III
- ROG RAMDisk
- Overwolf
- CPU-Z
- GameFirst V
- Sonic Studio III + Sonic Studio Link
- Sonic Radar III

Special Features
OC Design- ASUS PRO Clock II Technology
ASUS Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
- Aura Addressable Strip Header(s)
ASUS Exclusive Features
- USB BIOS Flashback
- MemOK II
- AI Suite 3
- Ai Charger
- Armoury Crate
- Pre-mounted I/O Shield
- ASUS NODE: hardware control interface
- OptiMem II
- ASUS C.P.R.(CPU Parameter Recall)
- BUPDATER
- BIOS Flashback Button
- Clear CMOS Button
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design
- Q-LED (CPU (red), DRAM (yellow), VGA (white), Boot Device (green))
- Q-Slot
- Q-DIMM
- Q-Connector
LiveDash

Back I/O Ports
1 x Clear CMOS button
1 x BIOS Flashback button
1 x 2x2 Wi-Fi Module
1 x Aquantia AQC-107 10G LAN port
1 x Anti-surge LAN (RJ45) port
2 x USB 3.1 Gen 2 ports (1 x Type-C (black) and 1 x Type-A (red))
10 x USB 3.1 Gen 1 ports (blue)
1 x Optical S/PDIF out
5 x LED-illuminated audio jacks

Internal I/O connectors
1 x W_PUMP+ 1
1 x W_PUMP+ 2
1 x WB_SENSOR
1 x AURA addressable header
1 x U.2 port
2 x Aura RGB strip headers
2 x USB 3.1 Gen 1 connectors support additional 4 USB 3.1 gen1 ports
2 x USB 2.0 connectors support additional 4 USB 2.0 ports
1 x M.2_1 Socket 3 with M Key, type 2242/2260/2280 (supports PCIe3.0 x 4 and SATA modes)
1 x M.2_2 Socket 3 with M Key, type 2242/2260/2280/22110 (supports PCIe3.0 x 4 mode)
6 x SATA 6Gb/s connectors
1 x VROC_HW_Key
1 x 4-Pin HS fan connector
1 x 4-Pin CPU fan connector
1 x 4-Pin CPU_OPT fan connector
3 x 4-Pin Chassis fan connectors
1 x 4-Pin H_AMP fan connector
2 x 8-pin EATX 12V power connector
1 x 24-pin EATX power connector
1 x 4-pin EZ_PLUG Power connector(s)
1 x Front panel audio connector (AAFP)
1 x Slow mode switch
1 x MemOK II switch
10 x ProbeIt Measurement Points
1 x Reset button
1 x BIOS Switch button
1 x LN2 mode jumper
1 x NODE connector
1 x Safe Boot button
1 x ReTry button
1 x System panel connector
2 x T_Sensor Connector
1 x 2-pin Water in connector
1 x 2-pin Water out connector
1 x 3-pin Water flow connector
1 x Start button
1 x USB 3.1 Gen 2 front panel connector
1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110)
1 x Pause switch
2 x RSVD switch
1 x speaker header

Accessories

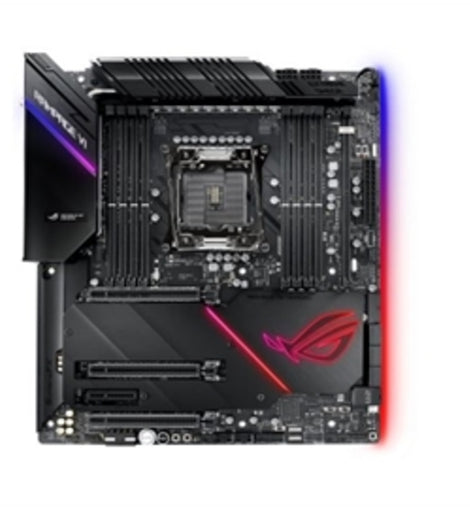

ROG RAMPAGE VI EXTREME OMEGA
1 x Users manual
1 x ROG logo plate sticker
2 x 2-in-1 SATA 6Gb/s cables
1 x ASUS 2x2 dual band Wi-Fi antennas
1 x SLI HB BRIDGE(2-WAY-M)
1 x Q-Connector
1 x Extension cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x USB drive with utilities and drivers
1 x 3-in-1 Thermistor cables
1 x ROG coaster
1 x 2-in-1 ROG weave SATA 6G cable
1 x 2-in-1 M.2 screws kit
1 x ROG Thank you card
1 x Dual function screwdriver
ROG DIMM.2 with heatsink:
1 x ROG DIMM.2 with heatsink
2 x M.2 screws kits
1 x 2-in-1 Rubber pad
Fan Extension Card II:
1 x FAN Extension Card II user manual
1 x Fan Extension Card II
1 x Fan Extension Card II power cable
1 x Fan Extension Card II NODE connector cable
1 x Fan Extension Card II screw package

BIOS
2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0

Manageability
WfM 2.0, WOL by PME, PXE

Support USB contents
Overwolf
Daemon Tools Software
WinRAR
Anti-virus software (1-year full subscription)

Operating System
Windows 10 - 64 bit
