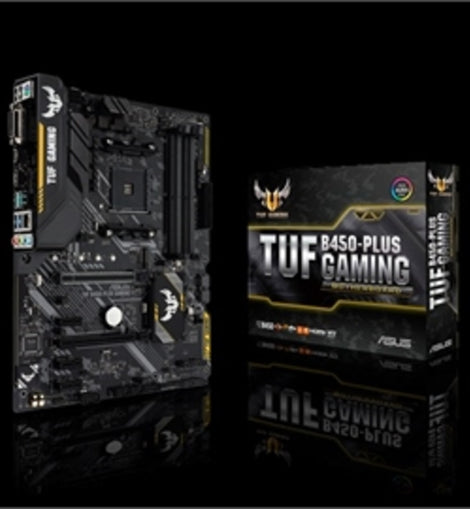

ASUS Motherboard TUF B450-PLUS GAMING AMD AM4 B450 Maximum 64GB DDR4 PCIE Windows 10 ATX Retail
ASUS TUF B450-Plus Gaming AMD Ryzen 2 AM4 DDR4 HDMI DVI M.2 ATX Motherboard
2nd generation AMD Ryzen AM4 processors maximize connectivity and speed with NVMe M.2, USB 3.1 Gen2 and gigabit LAN
Military-grade TUF components like TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs maximize durability
TUF Protection with SafeSlot and Overvoltage protection ensures component stability and dependability
Unmatched personalization with ASUS exclusive Aura Sync RGB lighting and additional RGB header
3-Year Warranty for guaranteed reliability built on military-grade engineering
CPU
AMD AM4 Socket AMD Ryzen 2nd Generation/Ryzen with Radeon Vega Graphics/Ryzen 1st Generation Processors
Supports CPU up to 8 cores
Refer to www.asus.com for CPU support list
Chipset
AMD B450
Memory
AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors
4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic
Integrated in the AMD Ryzen with Radeon Vega Graphics Processors
Multi-VGA output support : HDMI/DVI-D ports
- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 at 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 at 60 Hz
Multi-GPU Support
Supports AMD CrossFireX Technology
Expansion Slots
AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD Ryzen with Radeon Vega Graphics Processor
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD B450 chipset
1 x PCIe 2.0 x16 (max at x4 mode)
3 x PCIe 2.0 x1
Storage
AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA and PCIE 3.0 x 4 mode)
2 x SATA 6Gb/s port(s)
AMD B450 chipset :
4 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10
LAN
Realtek RTL8111H
TUF LANGuard
Audio
Realtek ALC887-VD2 8-Channel High Definition Audio CODEC
Audio Feature :
- Exclusive DTS Custom for GAMING Headsets.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.
USB Ports
AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation :
2 x USB 3.1 Gen 1 port(s) (2 at back panel, Type-A)
AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation :
1 x USB 3.1 Gen 1 port(s) (1 at back panel, USB Type-CTM)
AMD B450 chipset :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A)
AMD B450 chipset :
2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
AMD B450 chipset :
6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
Special Features
ASUS TUF PROTECTION
- ASUS SafeSlot: Protect your graphics card Investment
- ASUS ESD Guard: Enhanced ESD protection
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability
- ASUS DIGI+ VRM: 6 Phase digital power design
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- PC Cleaner
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution and MOS Heatsink
- ASUS Fan Xpert 4 Core
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Slot
- ASUS Q-DIMM
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
1 x 5Gb/s port(s) USB Type-CTM
2 x USB 3.1 Gen 2 (teal blue)Type-A,
2 x USB 3.1 Gen 1 (blue) Type-A,
2 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports
1 x Aura RGB Strip Header
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA and PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x AIO_PUMP connector (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
Accessories
Users manual
ASUS Q-Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x TUF GAMING Sticker
1 x TUF Certification card(s)
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability
WOL by PME, PXE
Operating System
Windows 10 64-bit
Form Factor
ATX Form Factor
12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Item Dimension (L"xW"xH")
11 x 13 x 3
Weight
4 lbs
Warranty Information
3 Years
2nd generation AMD Ryzen AM4 processors maximize connectivity and speed with NVMe M.2, USB 3.1 Gen2 and gigabit LAN
Military-grade TUF components like TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs maximize durability
TUF Protection with SafeSlot and Overvoltage protection ensures component stability and dependability
Unmatched personalization with ASUS exclusive Aura Sync RGB lighting and additional RGB header
3-Year Warranty for guaranteed reliability built on military-grade engineering
CPU
AMD AM4 Socket AMD Ryzen 2nd Generation/Ryzen with Radeon Vega Graphics/Ryzen 1st Generation Processors
Supports CPU up to 8 cores
Refer to www.asus.com for CPU support list
Chipset
AMD B450
Memory
AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors
4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic
Integrated in the AMD Ryzen with Radeon Vega Graphics Processors
Multi-VGA output support : HDMI/DVI-D ports
- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 at 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 at 60 Hz
Multi-GPU Support
Supports AMD CrossFireX Technology
Expansion Slots
AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD Ryzen with Radeon Vega Graphics Processor
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD B450 chipset
1 x PCIe 2.0 x16 (max at x4 mode)
3 x PCIe 2.0 x1
Storage
AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA and PCIE 3.0 x 4 mode)
2 x SATA 6Gb/s port(s)
AMD B450 chipset :
4 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10
LAN
Realtek RTL8111H
TUF LANGuard
Audio
Realtek ALC887-VD2 8-Channel High Definition Audio CODEC
Audio Feature :
- Exclusive DTS Custom for GAMING Headsets.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.
USB Ports
AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation :
2 x USB 3.1 Gen 1 port(s) (2 at back panel, Type-A)
AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation :
1 x USB 3.1 Gen 1 port(s) (1 at back panel, USB Type-CTM)
AMD B450 chipset :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A)
AMD B450 chipset :
2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
AMD B450 chipset :
6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
Special Features
ASUS TUF PROTECTION
- ASUS SafeSlot: Protect your graphics card Investment
- ASUS ESD Guard: Enhanced ESD protection
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability
- ASUS DIGI+ VRM: 6 Phase digital power design
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- PC Cleaner
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution and MOS Heatsink
- ASUS Fan Xpert 4 Core
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Slot
- ASUS Q-DIMM
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
1 x 5Gb/s port(s) USB Type-CTM
2 x USB 3.1 Gen 2 (teal blue)Type-A,
2 x USB 3.1 Gen 1 (blue) Type-A,
2 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports
1 x Aura RGB Strip Header
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA and PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x AIO_PUMP connector (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
Accessories
Users manual
ASUS Q-Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x TUF GAMING Sticker
1 x TUF Certification card(s)
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability
WOL by PME, PXE
Operating System
Windows 10 64-bit
Form Factor
ATX Form Factor
12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Item Dimension (L"xW"xH")
11 x 13 x 3
Weight
4 lbs
Warranty Information
3 Years
