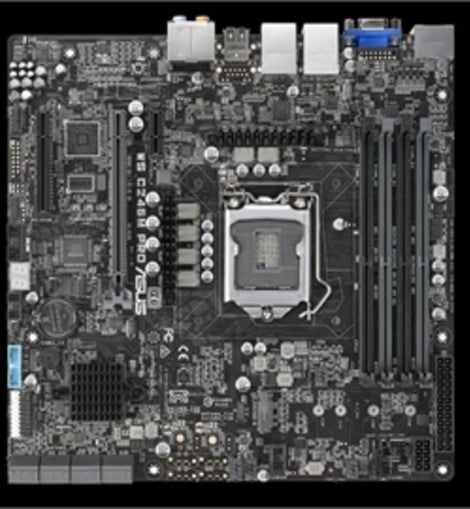

Asus Motherboard WS C246M PRO LGA1151 C246 Max 64GB DDR4 PCI Express USB3.1 micro-ATX Retail
Rack-optimized design for better cooling efficiency and stability
?Supports up to three independent displays simultaneously via HDMI, DisplayPort and VGA
?Accelerated data-transfer speeds of up to 32Gbps with M.2
?Onboard USB 3.1 for fast transfer speeds of up to 10Gbps
?Dual Intel(R) Gigabit LAN with teaming support
?ASUS Control Center -- A software utility that provides convenient, secure and cost-saving centralized IT management for small and medium businesses
Rack-optimized design for better cooling efficiency
WS C246M PRO is the perfect workstation motherboard for media server, cloud gaming and video streaming applications. Its rack-optimized layout maximizes cooling efficiency for the best performance and stability, ensuring it's ready to meet the demands of enterprise or academia use.
Supports up to three independent displays simultaneously
WS C246M PRO is equipped for total display flexibility with onboard HDMI, DisplayPort and VGA connectivity. With a compatible latest-generation Intel(R) processor, you can connect up to three independent displays simultaneously for better multitasking and enhanced productivity.
Accelerated data-transfer speeds of up to 32Gbps with M.2
With PCIe 3.0 x4 bandwidth, one M.2 supports up to 32Gbps data-transfer speeds with native NVMe -- that's up to 5.3X faster than traditional SSDs. WS C246M PRO also supports the very latest 2.5-inch NVMe SSDs for quick and easy setup.
Onboard USB 3.1 for fast transfer speeds of up to 10Gbps
WS C246M PRO has two onboard USB 3.1 Gen2 connectors that provide data-transfer speeds of up to 10Gbps, twice as fast USB3.1 Gen1.
Processor / System Bus
1 x Socket LGA1151
Intel Xeon processor E-2100 family
Intel PentiumTM processors
Intel CeleronTM processors
Intel CoreTM i7/i5/i3 processors
Core Logic
Intel C246 Chipset
Memory
-Total Slots : 4 (2-channel)
-Capacity : Maximum up to 64GB UDIMM
-Memory Type :
Dual Channel DDR4 2666/2400 /2133
-Memory Size :
16GB, 8GB UDIMM
Expansion Slots
Total Slot : 3
Slot Location 1 : PCI-E x1 (Gen2 X1 Link)
Slot Location 2 : PCI-E x16 (Gen3 X16 Link)
Slot Location 3 : PCI-E x8 (Gen3 X4 Link)
Form Factor
U ATX (9.6"x9.6", 244mm x 244mm)
Storage
-SATA Controller :
Intel C246 Chipset
8 x SATA3 6Gb/s ports
Intel Rapid Storage Technology(RST) (For Linux/Windows)
(Support Software RAID )
-SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional)
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional)
Networking
1 x Intel I210AT
1 x i219-LM
On Board I/O
2 x USB 2.0 pin header
1 x USB 3.0 pin header
1 x M.2 Connector , NGFF Type : 2280/2260/2242
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
1 x COM port
1 x TPM header
1 x S/PDIF Out (Optical)
Back I/O Ports
2 x USB 3.1 ports (Type A)
2 x USB 3.0 ports
2 x USB 2.0 ports
1 x HDMI
1 x DisplayPort
1 x VGA
2 x RJ-45 ports
8-channel Audio I/O ports (5+1 Audio jacks)
Management Solution
WfM 2.0, DMI 3.0, WOL by PME, WOR by PME, PXE
Accessories
Gift Box (1-in-1)
1 x Support CD
1 x I/O shield
8 x SATA 6G cables
1 x Com port cable
1 x User manual
1 x Quick start guide
1 x M.2 screw
Bulk Pack (10-in-1)
1 x Support CD
10 x I/O shield
80 x SATA 6G cables
10 x Com port cable
1 x User manual
1 x Quick start guide
10 x M.2 screw
Monitoring
CPU Temperature
Fan RPM
Weight
17.20lb
Warranty Information
3 Years w/ 1st year ARS
?Supports up to three independent displays simultaneously via HDMI, DisplayPort and VGA
?Accelerated data-transfer speeds of up to 32Gbps with M.2
?Onboard USB 3.1 for fast transfer speeds of up to 10Gbps
?Dual Intel(R) Gigabit LAN with teaming support
?ASUS Control Center -- A software utility that provides convenient, secure and cost-saving centralized IT management for small and medium businesses
Rack-optimized design for better cooling efficiency
WS C246M PRO is the perfect workstation motherboard for media server, cloud gaming and video streaming applications. Its rack-optimized layout maximizes cooling efficiency for the best performance and stability, ensuring it's ready to meet the demands of enterprise or academia use.
Supports up to three independent displays simultaneously
WS C246M PRO is equipped for total display flexibility with onboard HDMI, DisplayPort and VGA connectivity. With a compatible latest-generation Intel(R) processor, you can connect up to three independent displays simultaneously for better multitasking and enhanced productivity.
Accelerated data-transfer speeds of up to 32Gbps with M.2
With PCIe 3.0 x4 bandwidth, one M.2 supports up to 32Gbps data-transfer speeds with native NVMe -- that's up to 5.3X faster than traditional SSDs. WS C246M PRO also supports the very latest 2.5-inch NVMe SSDs for quick and easy setup.
Onboard USB 3.1 for fast transfer speeds of up to 10Gbps
WS C246M PRO has two onboard USB 3.1 Gen2 connectors that provide data-transfer speeds of up to 10Gbps, twice as fast USB3.1 Gen1.
Processor / System Bus
1 x Socket LGA1151
Intel Xeon processor E-2100 family
Intel PentiumTM processors
Intel CeleronTM processors
Intel CoreTM i7/i5/i3 processors
Core Logic
Intel C246 Chipset
Memory
-Total Slots : 4 (2-channel)
-Capacity : Maximum up to 64GB UDIMM
-Memory Type :
Dual Channel DDR4 2666/2400 /2133
-Memory Size :
16GB, 8GB UDIMM
Expansion Slots
Total Slot : 3
Slot Location 1 : PCI-E x1 (Gen2 X1 Link)
Slot Location 2 : PCI-E x16 (Gen3 X16 Link)
Slot Location 3 : PCI-E x8 (Gen3 X4 Link)
Form Factor
U ATX (9.6"x9.6", 244mm x 244mm)
Storage
-SATA Controller :
Intel C246 Chipset
8 x SATA3 6Gb/s ports
Intel Rapid Storage Technology(RST) (For Linux/Windows)
(Support Software RAID )
-SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional)
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional)
Networking
1 x Intel I210AT
1 x i219-LM
On Board I/O
2 x USB 2.0 pin header
1 x USB 3.0 pin header
1 x M.2 Connector , NGFF Type : 2280/2260/2242
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
1 x COM port
1 x TPM header
1 x S/PDIF Out (Optical)
Back I/O Ports
2 x USB 3.1 ports (Type A)
2 x USB 3.0 ports
2 x USB 2.0 ports
1 x HDMI
1 x DisplayPort
1 x VGA
2 x RJ-45 ports
8-channel Audio I/O ports (5+1 Audio jacks)
Management Solution
WfM 2.0, DMI 3.0, WOL by PME, WOR by PME, PXE
Accessories
Gift Box (1-in-1)
1 x Support CD
1 x I/O shield
8 x SATA 6G cables
1 x Com port cable
1 x User manual
1 x Quick start guide
1 x M.2 screw
Bulk Pack (10-in-1)
1 x Support CD
10 x I/O shield
80 x SATA 6G cables
10 x Com port cable
1 x User manual
1 x Quick start guide
10 x M.2 screw
Monitoring
CPU Temperature
Fan RPM
Weight
17.20lb
Warranty Information
3 Years w/ 1st year ARS
