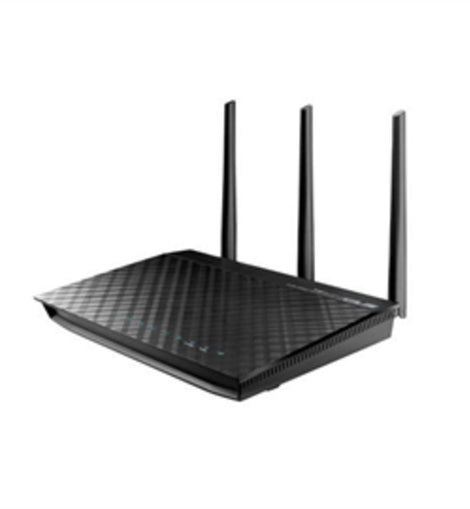

Dual-Band Wireless-N900 Gigabit Router
o and nbsp 2.4 GHz and 5 GHz Concurrent Dual-Band Transmissions for Strong Signal Strength and Ultra-Fast Connection Rates up to 900Mbps
o and nbsp Gigabit Ethernet Ports for the Fastest, Most Reliable Internet Performance
o and nbsp Download Master for Wireless Data Storage and Access to Router-Connected USB Storage Devices
o and nbsp Expanded Wireless Coverage with Detachable High-Powered Antennas
o and nbsp File Sharing, Printer Sharing, and 3G Sharing via Two Multi-Functional Built-in USB Ports
o and nbsp ASUSWRT Dashboard UI for Easy Setup, Signal Monitoring, and Network Application Control
Network Standard
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IPv4, IPv6
Data Rate
802.11a : 6,9,12,18,24,36,48,54Mbps
802.11b : 1, 2, 5.5, 11Mbps
802.11g : 6,9,12,18,24,36,48,54Mbps
802.11n : up to 450Mbps
Antenna
Detachable dBi antenna x 3
Operating Frequency
2.4GHz/5GHz
Encryption
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, WPS support
Firewall Access Control
Firewall: SPI intrusion detection, DoS protection
Access control: Parental control, Network Service filter, URL filter, Port filter
Management
UPnP, DLNA, DNS Proxy, DHCP, NTP Client, DDNS, Port Triger, Virtual Server, DMZ
VPN Support
IPSec Pass-Throuth
PPTP Pass-Through
L2TP Pass-Through
PPTP server
WAN Connection Type
Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
Multicast Proxy support
Utilities
Download master
- support BT, NZB, HTTP, ED2K
- support encryption, DHT, PEX and magnet link
- upload and download bandwidth control
- download scheduling
Media server:
Image: JPEG
Audio: mp3, wma, wav, pcm, mp4, lpcm, ogg
Video: asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
QoS:
WMM
User definable rules for IP/MAC/Port. Upload and Download bandwidth management.
ACK/SYN/FIN/RST/ICMP with Highest priority
Guest Network
2.4GHz guest network x 3, 5GHz guest network x 3
Printer Server: multifunctional printer support(Windows nly), LPR protocol support
File server: Samba and FTP server with account management
PPTP VPN server
Network map
Traffic monitor
Ports
4 x RJ45 for 10/100/1000/Gigabits BaseT for LAN
USB 2.0 x 2
Button
WPS Button, Reset Button, Power Button
LED Indicator
LAN x 4
WAN x 1
AIR x 2
USB x 1
Power Supply
AC Input : 110V to 240V(50 to 60Hz)
DC Output : 19 V with max. 1.58 A current
OS Support
Windows 8 , 32bit/64bit
Windows 7 , 32bit/64bit
Windows Vista , 32bit/64bit
Windows XP , 32bit/64bit
Mac OS X
Linux
Package Content
RT-N66R Wireless router
Stand
RJ-45 Cable
Power Adapter
Warranty Card
Quick Start Guide
Router Special Features
3G/4G data sharing Printer server Download Master AiDisK Multiple SSIDs Parental Control
Item Dimension (L inchxW inchxH inch)
13 x 11 x 4
Weight
4.00 lb
Warranty Information
2 years
