Essential AC upgrade with uninterrupted Wi-Fi coverage

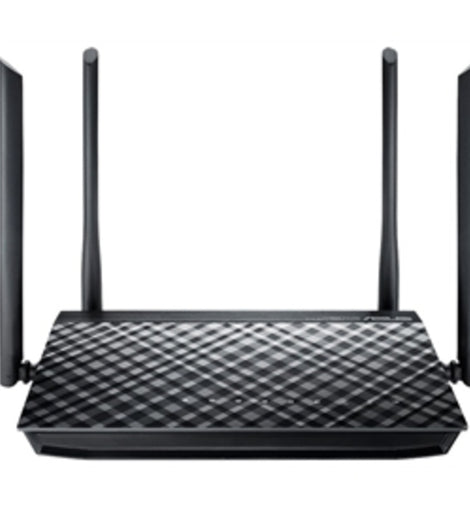

ASUS RT-AC1200G Dual-band Wireless-AC1200 gigabit router with four high-gain antennas and high power technology delivers extremely long operating range. Its 802.11ac high-speed performance is perfect for streaming up to 4K UHD videos, online gaming with support for latest gen consoles such as Xbox One and PlayStation(R) 4 and performing other bandwidth-intensive tasks. Multi-purpose USB 2.0 port allow printer, hard drive and 3G/4G sharing while ASUS AiCloud support allows you to access, share, and stream files from your home PC to internet-connected devices.
Experience super-fast wireless speeds
Powered by the new Broadcom chipset, RT-AC1200G delivers superfast gigabit wireless-AC speeds up to 867 Mbps on the 5 GHz band that's 3 times faster than standard wireless-N. This high performance wireless lets you enjoy ultra-smooth online gaming, snappier web surfing and other bandwidth-demanding tasks without a wired connection.
Extremely long operating range with high power technology
Longer operating range and stronger transmissions are perfect for larger homes and offices, delivered by two detachable high-gain antennas and an enhanced power amplifier. Alongside greater coverage, users benefit from fast 802.11ac wireless for every need.
AiRadar improves Wi-Fi performance
ASUS AiRadar intelligently strengthens wireless connectivity using 802.11ac technology, high power amplification, and exclusive ASUS RF fine-tuning. This ensures extended coverage, increases dynamic data speed, and enhances stability.
Network Standard
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac,
IPv4, IPv6
Product Segment
AC1200 enhanced AC performance : 300+867 Mbps
Coverage
Medium homes
Data Rate
802.11n : up to 300 Mbps
802.11ac : up to 867 Mbps
Antenna
External 5 dBi antenna x 4
Transmit/Receive
MIMO technology
2.4 GHz 2 x 2
5 GHz 2 x 2
Processor
BCM 47189 + BCM 43217
Memory
16 MB Flash
128 MB RAM
Operating Frequency
2.4 GHz / 5 GHz
Encryption
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support
Firewall and Access Control
URL Blocking
MAC Filter
URL Filter
Enable LAN to WAN Filter
Parental Control Web filter
Management
UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log
WAN Connection Type
Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
WAN Bridge support
Multicast Proxy support
Multicast Rate Setting support
Ports
RJ45 for 10/100/1000 BaseT for WAN x 1, RJ45 for 10/100/1000 BaseT for LAN x 4
USB 2.0 x 1
Button
WPS Button, Reset Button, Power Button
Features
SmartQoS
- WMM
- User definable rules for IP/MAC/Port
- Upload and download bandwidth management
- ACK/SYN/FIN/RST/ICMP with highest priority
Parental Control
Guest Network : 2.4 GHz x 3, 5 GHz x 3
VPN server : IPSec Pass-Through, PPTP Pass-Through, L2TP Pass-Through
AiDisk file server
- Samba and FTP server with account management
LED Indicator
Power x 1
LAN x 4
Wi-Fi x 2
WAN x 1
USB x 1
Power Supply
AC Input : 110V to 240V(50 to 60Hz)
DC Output : 12 V with max. 2 A current
OS Support
Windows 10
Windows 8.1
Windows 8
Windows 7
Windows Vista
Windows 2000
Windows ME
Windows XP
Windows Server 2003
Windows Server 2008
Mac OS X 10.1
Mac OS X 10.4
Mac OS X 10.4
Mac OS X 10.5
Mac OS X 10.6
Mac OS X 10.7
Mac OS X 10.8
Linux Kernel (Support Ubuntu only)
Package Content
RT-AC1200G Gigabit Router
RJ-45 Cable
Power adaptor
Quick Start Guide
Warranty Card
