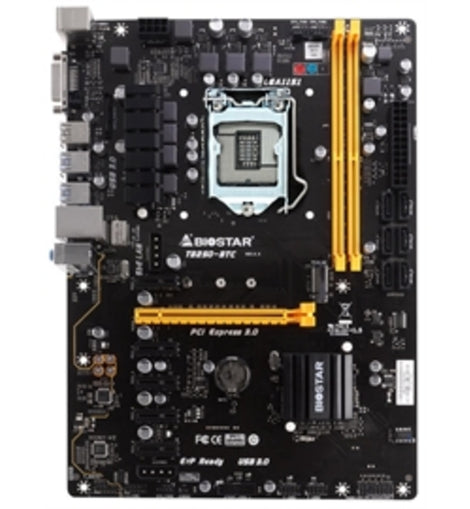

Biostar Motherboard TB250-BTC Core i7/i5/i3 LGA1151 B250 DDR4 SATA PCI Express USB ATX Retail
o Supports 7th Generation Intel(R) Core(TM) Processor
o Intel B250 single chip architecture
o Support 2-DIMM DDR4-2400/ 2133/ 1866 up to 32G maximum capacity
o Support DVI-D
o Support USB 3.0
Chipset
Intel B250
CPU SUPPORT
Intel Core i7 LGA 1151 Processor
Intel Core i5 LGA 1151 Processor
Intel Core i3 LGA 1151 Processor
Intel Pentium LGA 1151 Processor
Intel Celeron LGA 1151 Processor
Maximum CPU TDP (Thermal Design Power) : 95Watt
MEMORY
Support Dual Channel DDR4 2400/ 2133/ 1866 MHz
2 x DDR4 DIMM Memory Slot
Max. Supports up to 32GB Memory
(DDR4 2400 for 7th Generation Intel Core Processor Family)
EXPANSION SLOT
1 x PCI-E x16 3.0 Slot
5 x PCI-E x1 3.0 Slot(using for bitcoin mining, it is suggested to change to PCI-E 1.0 via BIOS)
STORAGE
6 x SATA3 Connector
1 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6Gb/s and PCIe Storage
USB
4 x USB 3.0 Port
1 x USB 3.0 Header
2 x USB 2.0 Port
2 x USB 2.0 Port(only 5V power, up to 1.5A)
2 x USB 2.0 Header
LAN
Realtek RTL8111H - 10/100/1000 Controller
Support Super LAN Surge Protection
INTEGRATED VIDEO
By CPU model
Supports DX12
Supports HDCP
CODEC
Realtek ALC887 8-Channel HD Audio
Support HD Audio
REAR I/O
1 x PS/2 Mouse
1 x PS/2 Keyboard
4 x USB 3.0 Port
2 x USB 2.0 Port
2 x USB 2.0 Port(only 5V power, up to 1.5A)
1 x DVI-D Connector, resolution up to 1920 x 1200 60Hz
1 x RJ-45 Port
3 x Audio Connector
INTERNAL I/O
1 x USB 3.0 Header
2 x USB 2.0 Header
6 x SATA3 6Gb/s Connector
1 x SATA Power Connector(for rear USB power enhancement)
1 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6Gb/s PCIe Storage
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Header
2 x System Fan Header
1 x Serial Header
2 x PCI-E 12V 4Pin Connector(Must be installed when using for bitcoin mining.)
H/W MONITORING
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
OS SUPPORT
Support Windows 10(x64) for Intel 7th Generation Processor
(Support Windows 7 / 8.1(x64) / 10(x64) for Intel 6th Generation Processor)
BUNDLE SOFTWARE
BullGuard
Smart Speed LAN(Windows 7/ 8.1 only)
Intel Rapid Storage Technology
ACCESSORIES
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x User Manual
FEATURES
Supports 100% Solid capacitor
Supports Charger Booster
Supports BIOS Online Update
Item Dimension (L inchxW inchxH inch)
13 x 11 x 3
Weight
3.00 lb
Warranty Information
3 Years
o Intel B250 single chip architecture
o Support 2-DIMM DDR4-2400/ 2133/ 1866 up to 32G maximum capacity
o Support DVI-D
o Support USB 3.0
Chipset
Intel B250
CPU SUPPORT
Intel Core i7 LGA 1151 Processor
Intel Core i5 LGA 1151 Processor
Intel Core i3 LGA 1151 Processor
Intel Pentium LGA 1151 Processor
Intel Celeron LGA 1151 Processor
Maximum CPU TDP (Thermal Design Power) : 95Watt
MEMORY
Support Dual Channel DDR4 2400/ 2133/ 1866 MHz
2 x DDR4 DIMM Memory Slot
Max. Supports up to 32GB Memory
(DDR4 2400 for 7th Generation Intel Core Processor Family)
EXPANSION SLOT
1 x PCI-E x16 3.0 Slot
5 x PCI-E x1 3.0 Slot(using for bitcoin mining, it is suggested to change to PCI-E 1.0 via BIOS)
STORAGE
6 x SATA3 Connector
1 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6Gb/s and PCIe Storage
USB
4 x USB 3.0 Port
1 x USB 3.0 Header
2 x USB 2.0 Port
2 x USB 2.0 Port(only 5V power, up to 1.5A)
2 x USB 2.0 Header
LAN
Realtek RTL8111H - 10/100/1000 Controller
Support Super LAN Surge Protection
INTEGRATED VIDEO
By CPU model
Supports DX12
Supports HDCP
CODEC
Realtek ALC887 8-Channel HD Audio
Support HD Audio
REAR I/O
1 x PS/2 Mouse
1 x PS/2 Keyboard
4 x USB 3.0 Port
2 x USB 2.0 Port
2 x USB 2.0 Port(only 5V power, up to 1.5A)
1 x DVI-D Connector, resolution up to 1920 x 1200 60Hz
1 x RJ-45 Port
3 x Audio Connector
INTERNAL I/O
1 x USB 3.0 Header
2 x USB 2.0 Header
6 x SATA3 6Gb/s Connector
1 x SATA Power Connector(for rear USB power enhancement)
1 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6Gb/s PCIe Storage
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Header
2 x System Fan Header
1 x Serial Header
2 x PCI-E 12V 4Pin Connector(Must be installed when using for bitcoin mining.)
H/W MONITORING
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
OS SUPPORT
Support Windows 10(x64) for Intel 7th Generation Processor
(Support Windows 7 / 8.1(x64) / 10(x64) for Intel 6th Generation Processor)
BUNDLE SOFTWARE
BullGuard
Smart Speed LAN(Windows 7/ 8.1 only)
Intel Rapid Storage Technology
ACCESSORIES
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x User Manual
FEATURES
Supports 100% Solid capacitor
Supports Charger Booster
Supports BIOS Online Update
Item Dimension (L inchxW inchxH inch)
13 x 11 x 3
Weight
3.00 lb
Warranty Information
3 Years
