Be in the Moment

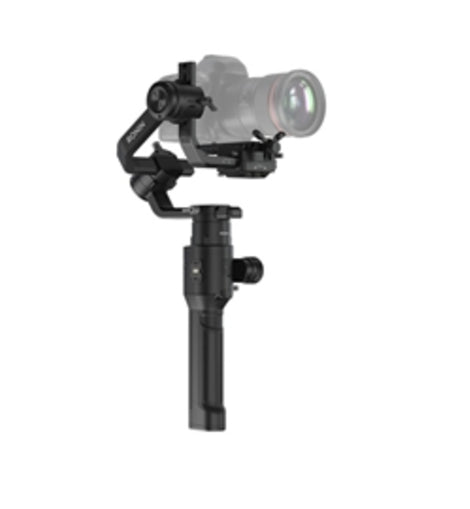

Designed in a single-handed form factor for DSLR and mirrorless cameras, the Ronin-S empowers creators to shoot with the freedom of stabilized shots on the move.

Imagine. Shoot. Create.
The Ronin-S gives independent filmmakers the power to capture spontaneous moments with clarity, smoothness, and a refreshing perspective.
SmoothTrack applies to all three axes. Hold down the front trigger to transition from Upright to Underslung Mode in one seamless movement with no gimbal framework obstruction. New Sport Mode allows you to capture fast-moving scenes instantly.

Professional Stability for Every Destination
The detachable, modular design of the Ronin-S makes it easy to fit inside a backpack on your travels. Thanks to the industry standard quick-release plate design, you can easily mount the camera onto the gimbal for tracking shots or on a tripod for stills.

Effortlessly Smooth
Operating the Ronin-S is easy and intuitive to setup with Auto Tune directly on the gimbal for optimal torque control. Powerful, high torque motors actively stabilize your shot when mounted to moving platforms at speeds of up to 75 kph.

Camera Compatibility
The Ronin-S supports almost any DSLR or mirrorless camera setup on the market, offering direct camera control.

Stay Focused
Focus better on your subject with the easy-to-control Focus Wheel. When a compatible camera system connects to the Ronin-S, you can pull focus via the included cable. An optional external motor can also be added, bringing broader compatibility to all lens types while enhancing precision control.



Peripheral
Camera Tray Dimensions:
Maximum depth from the center of gravity on the camera base plate: 98 mm
Maximum height measured from top of the camera base plate: 150 mm
Maximum width: 205 mm
Accessory Port:
Mechanical: 1/4-20, 3/8-16 Mounting Hole, M4 Mounting Hole
Electrical: 12V/2A Power Accessory Port, Camera Control Port, 8-pin Port
Input Power:
Model: RB1-2400mAh-14.4V
Type: 18650 LiPo
Capacity: 2400 mAh
Energy: 34.56 Wh
Connections:
Bluetooth 4.0
USB-C
DJI Assistant 2 Requirements:
Windows 7 or above
Mac OS X 10.11 or above
Ronin App Requirements:
iOS 9.0 or above
Android 4.4 or above
Working Performance
Load Weight (Reference Value): 3.6 kg (Handheld)
Angular Vibration Range: +/-0.02^o
Maximum Controlled Rotation Speed:
Pan axis: 360^o/s
Tilt axis: 360^o/s
Roll axis: 360^o/s
Mechanical Endpoint Range:
Pan axis: 360^o continuous rotation
Tilt axis: +185^o to -95^o
Roll axis: 360^o continuous rotation
Controlled Rotation Range:
Pan axis: 360^o continuous rotation
Tilt axis: +135^o to -90^o (Upright Mode, +90^o to -135^o (Underslung and Flashlight Mode)
Roll axis: +/-30^o, 360^o continuous rotation (Roll 360 mode)
Mechanical and Electrical Characteristics
Working Current: Static current: 0.16 A
Bluetooth Operating Frequency: 2.4 to 2.48 GHz
Bluetooth Transmitter Power: 0 dBm
Operating Temperature: -4^o to 113^o F (-20^o to 45^o)
Item Dimension (L"xW"xH")
18 x 7 x 14

Weight
13 lbs

Warranty Information
1 Year
