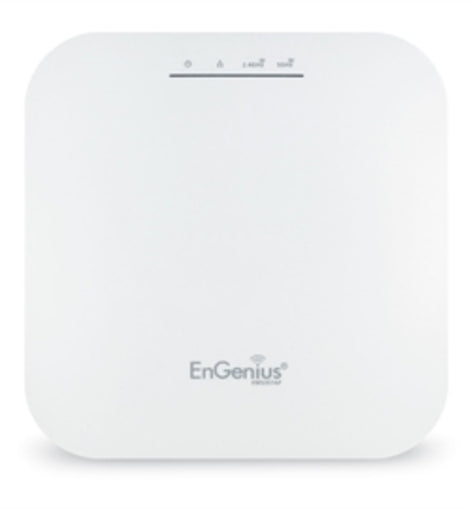

EnGenius Access Point EWS357AP Neutron Wi-Fi6 802.11ax 2x2 Managed Indoor Wireless Access Point Retail
Product Highlights
EnGenius Neutron EWS357AP 802.11ax WiFi 6 2x2 Managed Indoor Wireless Access Point features 802.11ax technology, which deepens and expands the capabilities of Wi-Fi and utilizes EnGenius enterprise-level management and AP features. The sleek, low-profile 11ax AP is loaded with new hardware components to run more efficiently and consume less power for maximum theoretical speeds of 574 Mbps (2.4 GHz frequency) and 1,200 Mbps (5 GHz frequency). To give your network elevated security, WPA3 and WPA2-AES make connecting client and IoT devices more secure and easier.
oDual concurrent 802.11ax WiFi 6 architecture and backward-compatible with 11ac/a/b/g/n client devices
oWPA3 and WPA2-AES authentication support
o3 dBi integrated 2x2 antenna
oSupports up to 1,200 Mbps in 5-GHz frequency band and 574 Mbps in 2.4-GHz frequency band
oLocal and remote management over EWS management switches and ezMaster without fees
o1 GB 802.3af PoE port for easy placement up to 328 feet from a power source
Technical Specifications
Standards
IEEE 802.11ax on 2.4 GHz
IEEE 802.11ax on 5 GHz
Backward compatible with 802.11b/g/n/ac
Processor
Qualcomm Quad-Core CPU ARM Cortex A53s at 1.0GHz
Antenna
4 x 2.4 GHz: 3 dBi
4 x 5 GHz: 3 dBi
Integrated Omni-Directional Antenna
Physical Interface
1 x 10/100/1000 BASE-T, RJ-45 Gigabit Ethernet Port
1x DC Jack
1 x Reset Button
LED Indicators
1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz
Power Source
Power-over-Ethernet: 802.3af Input
12VDC /1.25A Power Adapter
Maximum Power Consumption
12.5W
Wireless and Radio Specifications
Operating Frequency
Dual-Radio Concurrent 2.4 GHz and 5 GHz
Operation Modes
Managed mode: AP, Mesh
Stand alone: AP, Mesh,
Frequency Radio
2.4 GHz: 2400 MHz - 2835 MHz
5 GHz: 5150 MHz - 5250 MHz, 5250 MHz - 5350 MHz, 5470 MHz - 5725 MHz, 5725 MHz - 5850 MHz
Transmit Power
Up to 20 dBm on 2.4 GHz
Up to 20 dBm on 5 GHz
Tx Beamforming (TxBF)
Radio Chains/Spatial Stream
2x2
SU-MIMO
Two (2) spatial streams SU-MIMO for 2.4GHz and two (2) spatial streams SU-MIMO for 5GHz up to 1,774Mbps wireless data rate to a single 11AX wireless client device under the both 2.4G Hz and 5GHz radio.
MU-MIMO
Two (2) spatial streams Multiple (MU)-MIMO for up to 1200 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11AX capable wireless client devices under 5GHz simultaneously.
Two (2) Multiple (MU)-MIMO for up to 574 Mbps wireless data rate to transmit to one(1) two streams MU-MIMO 11AX
capable wireless client devices under 2.4GHz simultaneously.
Supported Data Rates (Mbps):
802.11ax:
2.4 GHz: 9 to 287 (MCS0 to MCS11, NSS is 1 to 2)
5 GHz: 18 to 1200 (MCS0 to MSC11, NSS is 1 to 2)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS is 1 to 2)
Supported Radio Technologies
802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA)
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
Channelization
802.11ax supports very high throughput (VHT) - VHT 20/40/80 MHz
802.11ac supports very high throughput (VHT) - VHT 20/40/80 MHz
802.11n supports high throughput (HT) - HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio - VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
Supported Modulation
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
Management
Multiple BSSID
8 SSIDs for both 2.4GHz and 5GHz radios.
VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
Spanning Tree
Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
Complaint With IEEE 802.11e Standard
WMM
SNMP
v1, v2c, v3
MIB
I/II, Private MIB
Management Features
Deployment Options
Stand-Alone (Individually Managed)
Managed Mode (with Neutron Series Switch/ezMaster)
Stand-Alone Management Features
Auto Channel Selection
Auto Transmit Power
Wireless STA (Client) Connected List
Guest Network
Fast Roaming (802.11k and 802.11r)
Pre-Authentication (802.11i, 802.11x)
PMK Caching (802.11i)
Band Steering per SSID
Traffic Shaping per SSID/per user
VLAN Per SSID
Backup/Restore Settings
Auto Reboot
E-Mail Alert
Site Survey
Save Configuration as Users Default
Wireless Management Features (With ezMaster and Neutron Switch)
AP Auto Discovery and Provisioning
AP Auto IP Assignment
AP Group Management
Auto AP Rebooting
AP Device Name Editing
AP Radio Settings
Band Steering Per SSID
Traffic Shaping Per SSID/User
Fast Roaming (802.11k 802.11r)
Pre-Authentication (802.11i, 802.11x)
PMK Caching (802.11i)
AP Client Limiting
Client Fingerprinting
AP VLAN Management
VLAN Per SSID
Captive Portal Per SSID
Multi-Tenant Account
AP Traffic Log
Access Point Status Monitoring
Wireless Client Monitoring
Email Alert
Wireless Traffic and Usage Statistics
Real-Time Throughput Monitoring
Visual Topology View
Floor Plan View
Map View
Wireless Coverage Display
Secure Control Messaging (SSL Certificate)
Local MAC Address Database
Remote MAC Address Database (RADIUS)
Unified Configuration Import/Export
Bulk Firmware Upgrade Capability
One-Click Update
Intelligent Diagnostics
Kick/Ban Clients
Wi-Fi Scheduler
Schedule reboot
Control Features
Managed Mode (w/Neutron Switch/ezMaster)
Distance Control (ACK Timeout)
Multicast Supported
Wi-Fi Scheduler
Client Traffic Status
RADIUS Accounting (802.1x)
Power Save Mode (U-APSD Support)
CLI Support
HTTPS
Wireless Security
WPA3
WPA2 Enterprise (AES)
Hide SSID in Beacons
MAC Address Filtering, Up to 32 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation
Environmental and Physical
Temperature Range
Operating: 32oF-104oF (0 oC-40 oC)
Storage: -22 oF-176 oF (-30 oC-80 oC)
Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less
Package Contents
1 - EWS357AP Dual-Band AX1800 Indoor Access Point
1 Ceiling Mount Base (9/16 Trail)
1 Ceiling Mount Base (15/16 Trail)
1 - Ceiling and Wall Mount Screw Kits
1 - Quick Installation Guide
Certifications
FCC
CE
Item Dimension (L"xW"xH")
9 x 9 x 4
Weight
3 lbs
Warranty Information
1 Year
