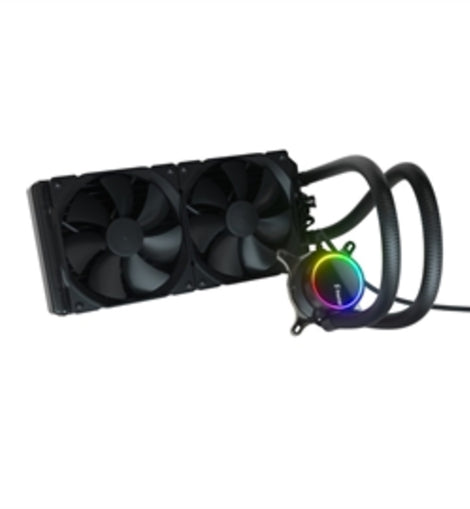

Fractal Design Accessory FD-W-2-S2801 Celsius+ S28 Dynamic Retail
Celsius+ S28 Dynamic
Celsius+ takes AIO water cooling to a new level with an ARGB-accented pump face, a fully redesigned block and an upgraded on-radiator PWM fan hub with ARGB support.
o Tinted glass pump face with backlit logo and ARGB LED effects
o Articulating elbow fittings make tubes easier to route and reduces tension on the pump
o Backed by a 5-year warranty for extended peace of mind
Cool, quiet and colorful
Stylish glass pump face with backlit logo and ARGB LED effects
Outstanding airflow
High-performance Dynamic PWM fans for excellent airflow and minimal noise
Optimized fan geometry balances airflow with extra emphasis on static pressure
Strategic blade notches diffuse noise from blade/stator interaction
TripWire technology reduces blade turbulence
LLS (Long Life Sleeve) fan bearings provide silent operation with a long lifespan
Get the balance right
Our intelligent auto mode dynamically adjusts the fan and pump speeds for optimized silent performance - and a simple twist of the pump face changes to PWM mode for full user control
General specifications
Sockets supported (Intel)
1150, 1151, 1155, 1156, 1366, 2011, 2011-3, 2066
Sockets supported (AMD)
AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+, TR4 (via included bracket in AMD Threadripper box)
Coldplate material
Copper
Thermal paste
Pre-applied
Tube length
400 mm
Tube material
Low-permeability rubber with braided nylon sleeve
Fittings, block side
Articulating 90-degree elbow
Fittings, radiator side
Straight rotary
Fan control
Dual mode (Auto/PWM)
Fan specifications
Fan type
Dynamic X2 GP-14 PWM
Rotational speed
500 - 1700 RPM
Bearing
LLS
PWM control
Yes
Acoustical noise (full speed)
32.7 dBA
Maximum air flow
85.71 CFM
Maximum static pressure
2.78 mm H2O
Input voltage
12V DC
Maximum input current
0.18A
MTBF
100,000 hours
Pump specifications
Rotational speed
800-2800 RPM in normal use, 3500 RPM during thermal protection mode that activates if liquid temperature is over 60oC
Bearing type
Ceramic bearing and shaft
PWM control
Yes
Acoustical noise (full speed)
20 dBA
Maximum pressure, 50oC
1.46 mm H2O
Input voltage
12V DC
Input current (without fans)
0.36A
MTTF
50,000 hours
Block height
45 mm
Block measurements (with fittings)
86 x 75 mm
Block diameter (main block body)
62 mm
Radiator specifications
Dimensions
143 x 30 x 324 mm
Housing material
Aluminum
Fin material
Aluminum
Fan screw threads
6-32
Other
Package contents
Celsius+ S28 unit, 2 x 140 mm fans, User manual, Mounting hardware for all listed sockets, Fan and radiator mounting screws
Item Dimension (L"xW"xH")
17 x 8 x 6
Weight
6 lbs
Warranty Information
5 Years
