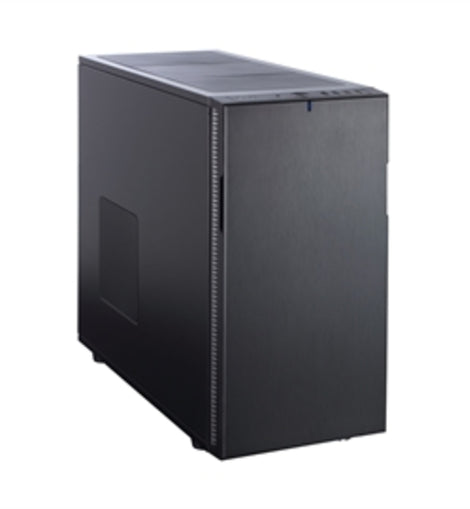

Fractal Design Case FD-CA-DEF-R5-BK Define R5 Black Retail
The Fractal Design Define R5
The Define R5 case reaches the highest level of silent computing through strategically placed dense sound-dampening material, ModuVent fan vent covers and finely tuned Dynamic Series fans. Packed with intelligently designed enthusiast-oriented features delivering a silent case with powerful and expansive air and liquid cooling support.
The Define R5 was designed with configurability in mind, accommodating up to 8 hard drives and all modern graphics cards. Should you wish to expand your system with water cooling components or more fans, the layout can easily be configured to meet your demand.
Key features
Optimally designed for silent computing with high density sound-dampening material throughout the case, while not compromising on airflow and cooling capabilities
Extensive water cooling support for its size housing radiators up to 420 mm in the top and 360 mm in the front
Equipped with new tool-less ModuVent fan slot covers allowing the user to install more fans if desired or keep fan slots covered to maximize sound absorption
Including two Fractal Design Dynamic GP-14 140 mm fans developed for superlative airflow while still maintaining low noise levels
Three-speed fan controller is strategically integrated in the front panel and supports up to three fans
Specifications
3.5" HDD/2.5" SSD positions
8
2.5" dedicated SSD unit positions
2 (fits SSDs up to 12 mm thick)
5.25" bays
2 (removable)
Expansion slots
7
Front ports
2x USB 3.0, 2x USB 2.0, Audio in/out, Power button with LED (blue), HDD activity LED (blue), Reset button
Total fan mounts
9
Front fan
2x 120/140 mm (included 1x Fractal Design Dynamic GP-14 fan at 1000 RPM)
Top fan
3x 120/140 mm
Rear fan
1x 120/140 mm (included 1x Fractal Design Dynamic GP-14 fan at 1000 RPM)
Bottom fan
2x 120/140 mm
Side fan
1x 120/140 mm
Dust filters
Front fans, Bottom fans (ejects from the front of the case)
Cable routing grommets
Yes
Fixed velcro straps
Yes
Captive thumbscrews
Right side panel
Left side panel
Industrial sound-dampened steel
Right side panel
Industrial sound-dampened steel
Compatibility
Power supply type
ATX
Motherboard compatibility
ATX, Micro ATX, Mini ITX
Front radiator
360, 280, 240, 140 or 120 mm (without drive bays)
Top radiator
420, 360, 280, 240, 140 or 120 mm (a thickness limitation of 55 mm for both radiator + fan applies on 420, 280 and 140 mm radiators 420 and 360 mm radiators require removal of the ODD bay)
Rear radiator
120 or 140mm
Bottom radiator
120 or 240 mm (Use of radiators in the bottom position limits the PSU length to 165 mm)
PSU max length
190/170 mm with a bottom 120/140 mm fan installed or 300 mm when not using any bottom fan location
GPU max length
310 mm with the top HDD cage installed or 440 mm with the top cage removed
CPU cooler max height
180 mm
Cable routing space
20-35 mm
Other
Package contents
Define R5 computer case, User manual, Accessory box
Item Dimension (L"xW"xH")
22 x 13 x 25
Weight
52 lbs
Warranty Information
NA
