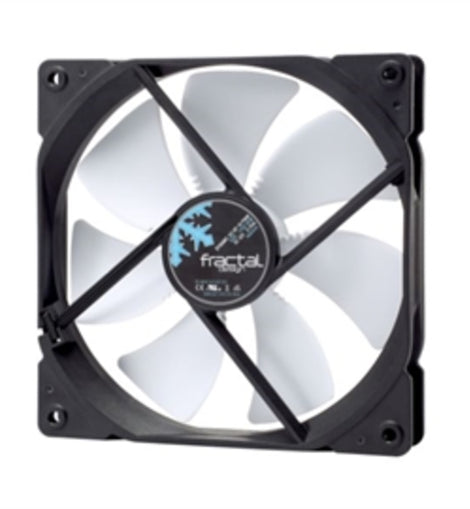

Fractal Design Fan FD-FAN-DYN-X2-GP14-PWM-WT Dynamic X2 GP-14 PWM White 1700RPM Retail
A true all-purpose fan, offering excellent airflow and outstanding 100,000-hour life expectancy thanks to its LLS (Long Life Sleeve) bearing
o High-grade LLS bearing with 100,000-hour MTBF delivers long-lasting dependability
o PWM support offers a wide 500 to 1700 RPM speed adjustment range for silent operation under lighter loads and maximum airflow during more demanding activity
A beautiful fan to help your system stay cool, yet quiet
Added PWM support offers precise fan control via a wide speed adjustment range of 500 to 1700 RPM allowing users to select their ideal mix of silent operation and maximum airflow. Designed alongside our high-end Venturi Series, the Dynamic X2 incorporates aerodynamic elements of airplane wing designs for significant noise reduction.
PWM means maximum airflow and minimal noise
PWM support offers a wide 500 to 1700 RPM speed adjustment range for silent operation under lighter loads and maximum airflow during more demanding activity.
o High-grade LLS bearing with 100,000-hour MTBF delivers long-lasting dependability
o PWM support offers a wide 500 to 1700 RPM speed adjustment range for silent operation under lighter loads and maximum airflow during more demanding activity
o Optimized fan geometry balances airflow with extra emphasis on static pressure for great performance in any usage scenario
o Stator struts sit on a wide angle to the trailing edge of the blades, resulting in a lower noise level and smoother noise profile
o Strategically placed notches near the fan hub on the trailing edge of the blades help to eliminate the humming noise produced when the blades pass stator struts
Trip Wire
Trip wire technology introduces a micro-turbulent layer that helps to combat elements that negatively affect performance, providing an overall more efficient and quiet fan environment
Specifications
Size
140 x 140 x 25 mm
Screw hole pattern
125 x 125 mm
Connector
4-pin
Bearing
LLS
Number of blades
7
Rotational speed
1700 RPM
Noise level
33.7 dB (A)
Airflow
105.9 CFM
Static pressure
1.95 mm H2O
Fan input power
1.7 W
Fan max input current
0.25 A
Fan input voltage
12 V
Fan starting voltage
6 V
Low (0-20%) PWM speed
500 RPM
Low PWM noise level
<10 dB (A)
Low PWM airflow
47.9 CFM
Low PWM static pressure
0.5 mm H2O
MTBF
100,000 hours
Cable length
500 mm
Cable type
Black ribbon cable
Other
Package contents
Dynamic X2 Series fan, Screw pack with 4 metal fan screws
Item Dimension (L"xW"xH")
2 x 8 x 6
Weight
1.00 LB
Warranty Information
2 years
