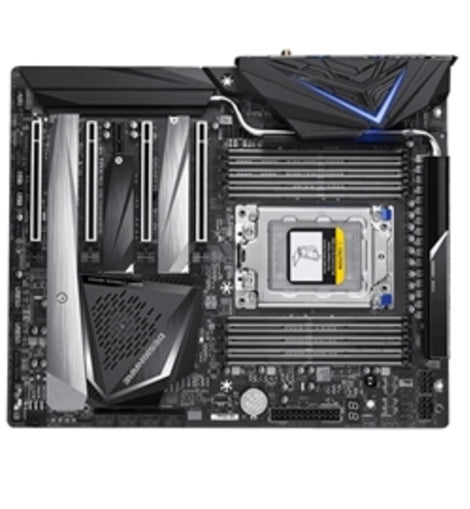

GIB Motherboard TRX40 DESIGNARE AMD Ryzen Threadripper sTRX4 TRX40 XL-ATX Retail
o Supports 3rd Gen AMD Ryzen(TM) Threadripper(TM) Processors
o Quad Channel ECC/ Non-ECC Unbuffered DDR4, 8 DIMMs
o 16+3 Phases Infineon Digital VRM Solution with 70A Power Stage
o Triple Thermal Protection with Fin-Arrays and 8mm Maga-Heatpipe
o Dual Intel(R) Gigabit LAN with cFosSpeed to shorten response time
o 4 Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Enlarged Thermal Guards
o Onboard Intel(R) WiFi 6 802.11ax 2T2R and BT 5 with Antenna
o 120dB SNR AMP-UP Audio with ALC1220-VB and WIMA Audio Capacitors
o Bundled 40Gb/s GC-Titan Ridge Add-In Card
o Exclusive AORUS Gen4 AIC Adaptor for Extra 4 NVMe PCIe 4.0/3.0 x4 M.2
o USB TurboCharger for Mobile Device Fast Charge Support
o RGB FUSION with Multi-Zone Addressable LED Light Show Design, Support Addressable LED and RGB LED Strips
o Smart Fan 5 features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
o Front and Rear USB 3.2 Gen 2 Type-C(TM) Header
o Q-Flash Plus Update BIOS Without Installing CPU, Memory and Graphics Card
Bundled 40Gb/s GC-Titan Ridge Add-In Card
The fastest 40Gb/s single-wire connection With bundled GC- Titan Ridge AIC, It delivers speeds of up to 40Gb/s transfer speed that's 2 times faster than previous generation. It provides the fastest connection to any dock, display and device. A single port can daisy-chain up to 3 Thunderbolt devices without an additional hub or switch. In addition, it supports quick charging with the latest technology PD3.0
Smart Fan 5
With Smart Fan 5 users can ensure that their PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
CPU
1.AMD Socket sTRX4:
Support 3rd Generation AMD RyzenTM ThreadripperTM processors
Chipset
1.AMD TRX40
Memory
1.8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory
2.Quad Channel memory architecture
3.Support for DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
4.Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
5.Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6.Support for Extreme Memory Profile (XMP) memory modules
Audio
1.Realtek ALC4050H codec+ Realtek ALC1220-VB codec
2.Support for DTS:X Ultra
3.High Definition Audio
4.2/4/5.1/7.1-channel
5.Support for S/PDIF Out
LAN
1.2 x Intel GbE LAN chip (10/100/1000 Mbit)
LAN
1.2 x Intel GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1.2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2.2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
3.1 x PCI Express x1 slot
(All of the PCI Express slots conform to PCI Express 4.0 standard.)
Multi-Graphics Technology
1.Support for AMD Quad-GPU CrossFireTM and 4-Way/3-Way/2-Way AMD CrossFireTM technologies
2.Support for NVIDIA Quad-GPU SLITM and 4-Way/3-Way/2-Way NVIDIA SLITM technologies
Storage Interface
CPU:
1.1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M)
2.1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2Q)
Chipset:
1.1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2P)
2.1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2C)
3.8 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
USB
CPU:
1.4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset:
1.1 x USB Type-CTM port on the back panel, with USB 3.2 Gen 2 support
2.1 x USB Type-CTM port with USB 3.2 Gen 2 support, available through the internal USB header
3.1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
4.4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+2 USB 2.0 Hubs:
1.6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1.1 x 24-pin ATX main power connector
2.2 x 8-pin ATX 12V power connectors
3.1 x OC_PEG power connector
4.1 x CPU fan header
5.1 x water cooling CPU fan header
6.2 x system fan headers
7.4 x system fan/water cooling pump headers
8.2 x addressable LED strip headers
9.2 x RGB LED strip headers
10.4 x M.2 Socket 3 connectors
11.8 x SATA 6Gb/s connectors
12.1 x front panel header
13.1 x front panel audio header
14.1 x USB Type-CTM header, with USB 3.2 Gen 2 support
15.2 x USB 3.2 Gen 1 headers
16.2 x USB 2.0/1.1 headers
17.1 x GIGABYTE GC-TITAN RIDGE Add-in Card Connector
18.1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
19.1 x power button
20.1 x reset button
21.2 x temperature sensor headers
22.1 x Clear CMOS jumper
Back Panel Connectors
1.1 x Q-Flash Plus button
2.1 x Clear CMOS button
3.1 x USB Type-CTM port, with USB 3.2 Gen 2 support
4.5 x USB 3.2 Gen 2 Type-A ports (red)
5.2 x USB 2.0/1.1 ports
6.2 x RJ-45 ports
7.2 x SMA antenna connectors (2T2R)
8.1 x optical S/PDIF Out connector
9.5 x audio jacks
I/O Controller
1.iTE I/O Controller Chip
H/W Monitoring
1.Voltage detection
2.Temperature detection
3.Fan speed detection
4.Water cooling flow rate detection
5.Overheating warning
6.Fan fail warning
7.Fan speed control
Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1.2 x 128 Mbit flash
2.Use of licensed AMI UEFI BIOS
3.Support for DualBIOSTM
4.PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1.Support for APP Center
Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
At BIOS
AutoGreen
Cloud Station
EasyTune
Fast Boot
Game Boost
RGB Fusion
Smart Backup
Smart Keyboard
Smart Survey
System Information Viewer
USB Blocker
USB TurboCharger
2.Support for Q-Flash Plus
3.Support for Q-Flash
4.Support for Xpress Install
Bundled Software
1.Norton Internet Security (OEM version)
2.cFosSpeed
3.XSplit Gamecaster + Broadcaster (12 months license)
Operating System
1.Support for Windows 10 64-bit
Form Factor
1.XL-ATX Form Factor 32.5cm x 26.9cm
Item Dimension (L"xW"xH")
15 x 13 x 6
Weight
9.00 LB
Warranty Information
3 Years
