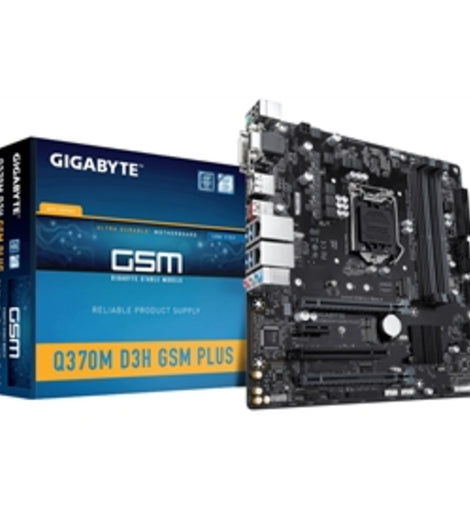

Gigabyte Motherboard Q370M D3H GSM PLUS Intel Q370 USB3.1 Gen2 Dual M.2 WIFI Retail
Intel Q370 Ultra Durable motherboard with Intel(R) CNVi 802.11ac Wave2 2T2R WIFI upgradable, Dual Intel GbE LAN with cFosSpeed, PCIe Gen3 x4 M.2, Native Intel USB 3.1 Gen2 Type-A and Type-C(TM), Intel(R) vPro(TM) Technology, CEC 2019 ready
Supports 8th Gen Intel(R) Core(TM) Processors
Dual Channel Non-ECC Unbuffered DDR4
New Hybrid Digital PWM Design
Intel(R) CNVi 802.11ac Wave2 2T2R WIFI Upgradable
Ultra-Fast M.2 with PCIe Gen3 X4 and SATA interface
Intel(R) USB 3.1 Gen2 USB Type-C(TM) and Type-A
Dual Intel(R) GbE LAN with cFosSpeed Internet Accelerator Software
CEC 2019 Ready, Save the Power as Easy as One Click
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers
HDMI 1.4, Display Port, DVI-D, D-sub Ports for Multiple Display
Anti-Sulfur Resistors Design
Ultra Durable(TM) 15KV Surge LAN Protection
Intel(R) Optane(TM) Memory Ready
Support Intel(R) vPro(TM) Technology
CPU
1. Support for 8th Generation Intel CoreTM i7 processors/Intel CoreTM i5 processors/Intel CoreTM i3 processors/Intel Pentium processors/ Intel Celeron processors in the LGA1151 package
2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
Intel Q370 Express Chipset
Memory
1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
2. Dual channel memory architecture
3. Support for DDR4 2666/2400/2133 MHz memory modules
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
To support 2666 MHz or XMP memory, you must install an 8th Generation Intel Core i7/i5 processor.
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200 at 60 Hz
2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200 at 60 Hz
The DVI-D port does not support D-Sub connection by adapter.
3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304 at 60 Hz
Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.
4. 1 x HDMI port, supporting a maximum resolution of 4096x2160 at 30 Hz
Support for HDMI 1.4 version and HDCP 2.2.
Support for up to 3 displays at the same time
Maximum shared memory of 1 GB
Audio
1. Realtek ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
1. 2 x Intel GbE LAN chip (10/100/1000 Mbit)
TPM
1. Infineon chip, supporting TPM 2.0
Expansion Slots
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
The PCIEX4 slot shares bandwidth with the PCIEX1 slot. When the PCIEX1 slot is populated, the PCIEX4 slot operates at up to x2 mode.
3. 1 x PCI Express x1 slot
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
4. 1 x PCI slot
5. 1 x M.2 Socket 1 connector for an Intel CNVi or a PCIe wireless module (CNVI)
Storage Interface
Chipset:
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
2. 6 x SATA 6Gb/s connectors
3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel OptaneTM Memory Ready
Multi-Graphics Technology
1. Support for AMD Quad-GPU CrossFireXTM and 2-Way AMD CrossFireTM technologies
USB
Chipset:
1. 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
2. 1 x USB Type-CTM port on the back panel, with USB 3.1 Gen 2 support
3. 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
4. 2 x USB 3.1 Gen 1 ports on the back panel
Chipset+USB 2.0 Hub:
1. 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 1 x M.2 Socket 3 connector
4. 6 x SATA 6Gb/s connectors
5. 1 x CPU fan header
6. 1 x system fan header
7. 1 x front panel header
8. 1 x front panel audio header
9. 1 x USB 3.1 Gen 1 header
10. 2 x USB 2.0/1.1 headers
11. 2 x serial port headers
12. 1 x parallel port header
13. 1 x Clear CMOS jumper
Back Panel Connectors
1. 1 x PS/2 keyboard/mouse port
2. 1 x D-Sub port
3. 1 x DVI-D port
4. 1 x HDMI port
5. 1 x DisplayPort
6. 1 x USB 3.1 Gen 2 Type-A port (red)
7. 1 x USB Type-CTM port, with USB 3.1 Gen 2 support
8. 4 x USB 3.1 Gen 1 ports
9. 2 x USB 2.0/1.1 ports
10. 2 x RJ-45 ports
11. 3 x audio jacks
I/O Controller
1. iTE I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1. 1 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
at BIOS
AutoGreen
Cloud Station
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
USB Blocker
V-Tuner
2. Support for Q-Flash
3. Support for Xpress Install
Bundle Software
1. Norton Internet Security (OEM version)
Operating System
1. Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor 24.4cm x 24.4cm
