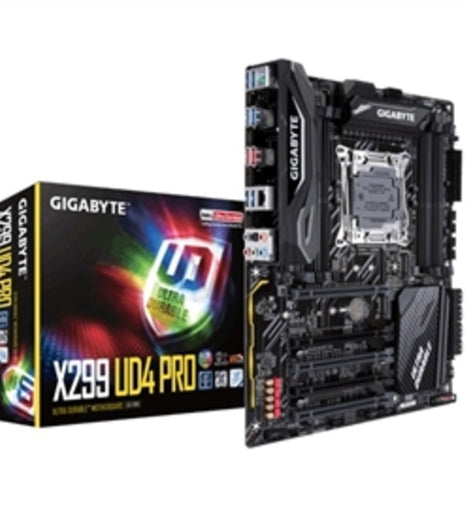

Gigabyte Motherboard X299 UD4 Pro X series Socket 2066 X299 ATX Retail
Supports Intel(R) CoreTM X-Series Processor Family
Quad Channel Non-ECC Unbuffered DDR4, 8 DIMMs
Intel(R) OptaneTM Memory Ready
Intel(R) VROC ready
ASMedia 3142 USB 3.1 Gen 2 with USB Type-A
3-Way Graphics Support
Server-Class Digital Power Design
ALC1220 120dB SNR HD Audio with Smart Headphone AMP and WIMA audio capacitor
RGB FUSION support Digital LED and RGBW Light Strips
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
Dual Ultra-Fast M.2 with PCIe Gen3 x4 interface
NVMe PCIe Gen3 x4 U.2 support by optional adaptor
Intel GbE LAN Gaming Network with cFosSpeed Internet Accelerator Software
Anti-Sulfur Resistor Design
Ultra DurableTM 25KV ESD and 15KV Surge LAN Protection
Lightning-Fast Intel(R) ThunderboltTM 3 AIC Support
GIGABYTE UEFI DualBIOSTM
APP Center Including EasyTuneTM and Cloud StationTM Utilities
CPU
1.Support for Intel Core TM X series processors in the LGA2066 package
2.L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
1.Intel X299 Express Chipset
Memory
1.8 x DDR4 DIMM sockets supporting up to 128 GB of system memory.
Support for up to 512 GB of system memory when using Registered DIMMs.
Supported when using a 44-lane or 28-lane CPU (6-core or above).
2.4 x DDR4 DIMM sockets supporting up to 64 GB of system memory.
Supported when using a 16-lane CPU (4-core).
3.4 channel memory architecture.
Supported when using a 44-lane or 28-lane CPU (6-core or above).
4.Dual channel memory architecture.
Supported when using a 16-lane CPU (4-core).
5.Support for DDR4 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400 / 2133 MHz memory modules
6.Support for non-ECC Un-buffered DIMM memory modules
7.Support for Registered DIMM 1Rx8/2Rx8/1Rx4/2Rx4 memory modules (operate in non-ECC mode)
R-DIMM is only supported by BIOS version F3 and earlier versio
ns.8.Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Audio
1.Realtek ALC1220 codec
2.High Definition Audio
3.2/4/5.1/7.1-channel
4.Support for S/PDIF Out
LAN
1.Intel GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1.2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2.1 x PCI Express x16 slot, running at x8 (PCIEX8)
3.2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Refer to "1-6 Setting up AMD CrossFire/NVIDIA SLI Configuration," for the installation notices for the PCI Express x16 slots.
Storage Interface
Chipset:
4.1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2Q_32G)
5.1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_32G)
6.8 x SATA 6Gb/s connectors
7.Support for RAID 0, RAID 1, RAID 5, and RAID 10
Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel Optane TM Memory Ready
Intel VROC Ready
Multi-Graphics Technology
1.Support for NVIDIA Quad-GPU SLI TM and 3-Way (with 44-lane CPU) / 2-Way (with 44 and 28-lane CPU) NVIDIA SLI TM technologies
2.Support for AMD Quad-GPU CrossFire TM and 3-Way (with 44-lane CPU) / 2-Way AMD CrossFire TM technologies
USB
Chipset+ASMedia USB 3.1 Gen 2 Controller:
1.2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
Chipset:
2.10 x USB 3.1 Gen 1 ports (6 ports on the back panel, 4 ports available through the internal USB headers)
3.4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1.1 x 24-pin ATX main power connector
2.1 x 8-pin ATX 12V power connector
3.1 x CPU fan header
4.1 x water cooling CPU fan header
5.2 x system fan headers
6.1 x 3 Amp fan/water cooling pump header
7.1 x digital LED strip header
8.1 x digital LED strip power select jumper
9.2 x RGB (RGBW) LED strip extension cable headers
10.2 x M.2 Socket 3 connectors
11.8 x SATA 6Gb/s connectors
12.1 x Intel VROC Upgrade Key header
13.1 x front panel header
14.1 x front panel audio header
15.1 x S/PDIF Out header
16.2 x USB 3.1 Gen 1 headers
17.2 x USB 2.0/1.1 headers
18.1 x ThunderboltTM add-in card connector
19.1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
20.1 x temperature sensor header
21.1 x Clear CMOS jumper
Back Panel Connectors
1.1 x PS/2 keyboard/mouse port
2.2 x USB 3.1 Gen 2 Type-A ports (red)
3.6 x USB 3.1 Gen 1 ports
4.1 x RJ-45 port
5.6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
I/O Controller
1.iTE I/O Controller Chip
H/W Monitoring
1.Voltage detection
2.Temperature detection
3.Fan speed detection
4.Water cooling flow rate detection
5.Overheating warning
6.Fan fail warning
7.Fan speed control
Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install
BIOS
1.2 x 128 Mbit flash
2.Use of licensed AMI UEFI BIOS
3.Support for DualBIOSTM
4.PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1.Support for APP Center
Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
at BIOS
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
USB Blocker
V-Tuner
2.Support for Q-Flash
3.Support for Xpress Install
Bundle Software
1.Norton Internet Security (OEM version)
2.cFosSpeed
Operating System
1.Support for Windows 10 64-bit
Form Factor
1.ATX Form Factor 30.5cm x 24.4cm
Remark
1.Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors website or 3rd party website.
2.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
Item Dimension (L inchxW inchxH inch)
14 x 11 x 4
