Supports 9th and 8th Gen Intel(R) Core(TM) Processors

Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs

Intel(R) Optane(TM) Memory Ready

12+1 Phases Digital VRM Solution with DrMOS

Advanced Thermal Design with Multi-cuts Heatsinks and Heatpipe

ALC1220-VB Enhance 114dB(Rear) / 110dB(Front) SNR in Microphone with WIMA Audio Capacitors

Intel(R) Gigabit LAN with cFosSpeed

RGB FUSION with Multi-Zone LED Light Show Design, Supports Addressable LED and RGB LED Strips

Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

Front USB 3.1 Gen 1 Type-C(TM) Header

Dual Ultra-Fast NVMe PCIe Gen3 x4 M.2 with Thermal Guards

Multi-Way Graphics Support with Dual Armor and Ultra Durable(TM) Design

CEC 2019 Ready, Save Power With a Simple Click

The AORUS Core is inspired by the falcon's aggressive nature and hunting prowess. The falcon uses its razor sharp talons to swiftly strike down its prey with exceptional efficiency and precision, qualities that are exemplified in the fine details of AORUS design.

12*+1 Phases Digital Power Design

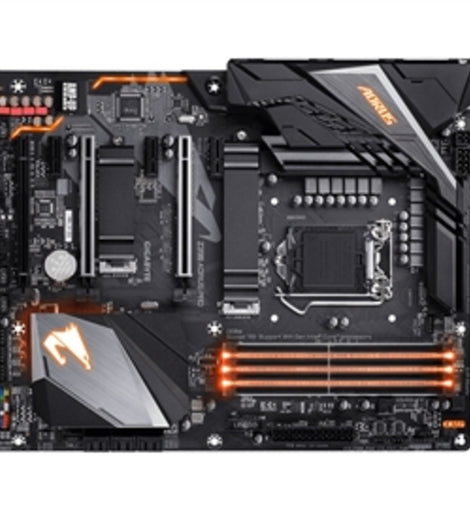

Z390 AORUS PRO motherboard uses an 12+1 phases digital CPU power design which includes both digital PWM Controller and DrMOS. These 100% digital controller and additional 8+4 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new 8-core 9th Gen Intel(R) Core(TM) processors.

Advanced Thermal Design

Z390 AORUS PRO uses very high performance thermal design by combining 2 heatsinks with Heatpipe, thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers.

CPU
Support for 9th and 8th Generation Intel Core^TM i9 processors/ Intel Core^TM i7 processors/ Intel Core^TM i5 processors/ Intel Core^TM i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1151 package
L3 cache varies with CPU

Chipset
Intel Z390 Express Chipset

Memory
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160 at 30 Hz
Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1 GB

Audio
Realtek ALC1220-VB codec
The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

LAN
Intel GbE LAN chip (10/100/1000 Mbit)

Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x8 (PCIEX8)
The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
3 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)

Storage Interface
Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support, prepared for Intel Hybrid SSD) (M2M)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel Optane^TM Memory Ready

Multi-Graphics Technology
Support for NVIDIA Quad-GPU SLI^TM and 2-Way NVIDIA SLI^TM technologies
Support for AMD Quad-GPU CrossFire^TM and 3-Way/2-Way AMD CrossFire^TM technologies

USB
Chipset:
1 x USB Type-C^TM port with USB 3.1 Gen 2 support on the back panel
1 x USB Type-C^TM port with USB 3.1 Gen 1 support, available through the internal USB header
2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
5 x USB 3.1 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 2.0 Hub:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x digital LED strip headers
2 x digital LED strip power select jumpers
2 x RGB LED strip headers
6 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C^TM port, with USB 3.1 Gen 1 support
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Thunderbolt^TM add-in card connector
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
2 x temperature sensor headers

Back Panel Connectors
4 x USB 2.0/1.1 ports
1 x HDMI port
1 x USB Type-C^TM port, with USB 3.1 Gen 2 support
2 x USB 3.1 Gen 2 Type-A ports (red)
3 x USB 3.1 Gen 1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks

I/O Controller
iTE I/O Controller Chip

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS^TM
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for APP Center
Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
At BIOS
AutoGreen
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
Smart Survey
USB Blocker
Support for Q-Flash
Support for Xpress Install

Bundle Software
Norton Internet Security (OEM version)
cFosSpeed

Operating System
Support for Windows 10 64-bit

Form Factor
ATX Form Factor
30.5cm x 24.4cm

Remark
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors website or 3rd party website.
Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
