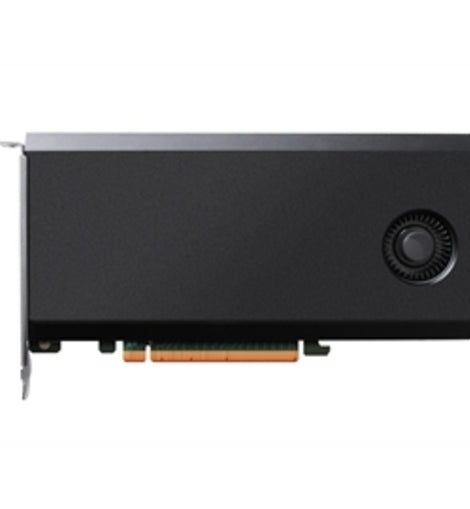

HighPoint Controller Card SSD7101A-1 4x dedicated 32Gbps M.2 to PCIe 3.0x16 RAID Controller Retail
Dedicated PCIe 3.0 x16 bus bandwidth
Dedicated PCIe 3.0 x4 bandwidth for each NVMe M.2 SSD
Over 8X faster than NVMe storage locked behind Intel DMI 3.0
Independent, Stand-Alone NVMe SSD Solution
Scale Performance across Multiple SSD7101A-1 NVMe RAID Controllers
Supports Windows and Linux Systems
Product Information
Bus Interface
PCI-Express 3.0 x16
Number of Channel / Port
4x 2280 M.2 NVMe Ports (Dedicated PCIe 3.0 x4 per M.2 Port)
Data Transfer Rates
8GT/ 8Gbps per lane
Number of Devices
Up to 4x M.2 NVMe SSDs (Qualified: Samsung 960 EVO Pro SSD)
Form Factor
Full-Height
Operating System Support
Windows 10 64-bit
Linux Kernel 3.3 or later
Cooling Fan
Aluminum casing with single 50 x 50mm cooling fan
Storage Mode
Data Storage only (non-bootable)
NVMe Configurations
RAID Mode Support
0, 1, 5, 10 JBOD
NVMe RAID Management
RAID Management Suites
Browser-Based management tool
CLI (Command Line Interface- scriptable configuration tool)
API package
SMTP Email Alert Notification
Yes
Alarm Buzzer
Yes
Storage Health Inspector
Yes
NVMe SMART status
Yes
Redundant RAID Configurations
Yes
Single-RAID and Multi-RAID Arrays per Controller
Yes
Cross-Sync RAID Solution over multi-SSD7101A-1 Controllers
Yes
Operating Environment
Work Temp
5o to 55oC
Storage Temp
-20o to 80oC
Relative Humidity
5% - 60% non condensing
Operating Voltage
PCI-e: 12V, 3.3V
Power
Typical: 8W
MTBF (Mean Time Before Failure)
920,585 Hours
Certification / Approval
FCC, CE, ROHS REACH
Kit Contents
1x SSD7101A-1 RAID Controller
1x Quick Installation Guide
Item Dimension (L inchxW inchxH inch)
14 x 8 x 3
Weight
3.00lb
Warranty Information
1 Year
Dedicated PCIe 3.0 x4 bandwidth for each NVMe M.2 SSD
Over 8X faster than NVMe storage locked behind Intel DMI 3.0
Independent, Stand-Alone NVMe SSD Solution
Scale Performance across Multiple SSD7101A-1 NVMe RAID Controllers
Supports Windows and Linux Systems
Product Information
Bus Interface
PCI-Express 3.0 x16
Number of Channel / Port
4x 2280 M.2 NVMe Ports (Dedicated PCIe 3.0 x4 per M.2 Port)
Data Transfer Rates
8GT/ 8Gbps per lane
Number of Devices
Up to 4x M.2 NVMe SSDs (Qualified: Samsung 960 EVO Pro SSD)
Form Factor
Full-Height
Operating System Support
Windows 10 64-bit
Linux Kernel 3.3 or later
Cooling Fan
Aluminum casing with single 50 x 50mm cooling fan
Storage Mode
Data Storage only (non-bootable)
NVMe Configurations
RAID Mode Support
0, 1, 5, 10 JBOD
NVMe RAID Management
RAID Management Suites
Browser-Based management tool
CLI (Command Line Interface- scriptable configuration tool)
API package
SMTP Email Alert Notification
Yes
Alarm Buzzer
Yes
Storage Health Inspector
Yes
NVMe SMART status
Yes
Redundant RAID Configurations
Yes
Single-RAID and Multi-RAID Arrays per Controller
Yes
Cross-Sync RAID Solution over multi-SSD7101A-1 Controllers
Yes
Operating Environment
Work Temp
5o to 55oC
Storage Temp
-20o to 80oC
Relative Humidity
5% - 60% non condensing
Operating Voltage
PCI-e: 12V, 3.3V
Power
Typical: 8W
MTBF (Mean Time Before Failure)
920,585 Hours
Certification / Approval
FCC, CE, ROHS REACH
Kit Contents
1x SSD7101A-1 RAID Controller
1x Quick Installation Guide
Item Dimension (L inchxW inchxH inch)
14 x 8 x 3
Weight
3.00lb
Warranty Information
1 Year
