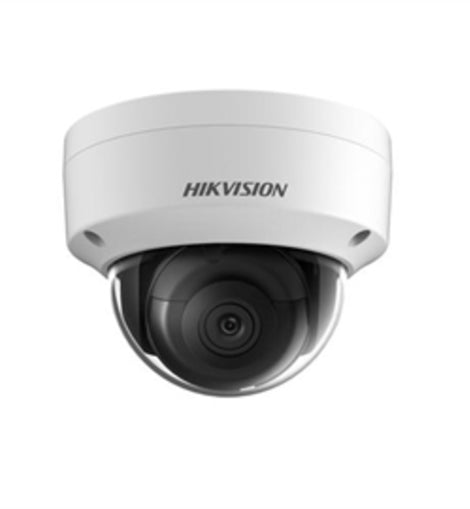

Hikvision Camera DS-2CD2145FWD-I 4MM DM IP67 4MP 4WDR IR POE/12 Retail
o 1/2.5" Progressive Scan CMOS
o 2688 x 1520 @30fps
o 4 mm fixed lens
o H.265, H.265+, H.264+, H.264
o 4 Behavior analyses
o 120dB WDR
o Powered by Darkfighter
o BLC/3D DNR/ROI/HLC
o IR range: up to 30 m
o Bulit-in microSD/SDHC/SDXC card slot, up to 128 GB
o IP67
Camera
- Image Sensor:
1/2.5" Progressive Scan CMOS
- Signal System:
PAL/NTSC
- Min. Illumination:
Color: 0.008 lux at (F1.2, AGC ON), 0 lux with IR
Color: 0.014 lux at (F1.6, AGC ON), 0 lux with IR
- Shutter time:
1/3 s to 1/100,000 s
- Slow shutter:
Support
- Lens:
4 mm, horizontal FOV: 88o, vertical FOV: 46o, diagonal FOV: 105o
- Lens Mount:
M12
- Adjustment Range:
Pan: 0o to 355o, tilt: 0o to 75o, rotate: 0o to 355o
- Day and Night:
IR Cut Filter
- Wide Dynamic Range:
120 dB
- Digital noise reduction:
3D DNR
- Focus:
Fixed
Compression Standard
- Video Compression:
H.265+/H.265/H.264+/H.264/MJPEG
- H.264 code profile:
Main Profile/High Profile
- Video bit rate:
32Kbps-16Mbps
- Triple Streams:
Yes
- Max. Image Resolution:
2688 x 1520
- Frame Rate:
50Hz: 25 fps (2688 x 1520, 2304 x 1296, 1920 x 1080)
60Hz: 30 fps (2688 x 1520, 2304 x 1296, 1920 x 1080)
- Sub Stream:
50Hz: 25 fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30 fps (640 x 480, 640 x 360, 320 x 240)
- Third Stream:
50Hz: 25 fps (1280 x 720, 640 x 360, 352 x 288)
60Hz: 30 fps (1280 x 720, 640 x 360, 352 x 240)
- Image Enhancement:
BLC/3D DNR/HLC
- Image Settings:
Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
- ROI:
Support 1 fixed region for main stream and sub stream separately
Network
- Network Storage:
microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
- Alarm Trigger:
Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
- Protocols:
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
- General Function:
One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
- System Compatibility:
ONVIF (Profile S, Profile G), ISAPI
Interface
- Communication Interface:
1 RJ45 10M / 100M Ethernet interface
- Alarm:
1 input, 1 output (max. 12 VDC, 30 mA), terminal block
- On-board storage:
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
- Reset Button:
Yes
Audio
- Audio I/O:
support
- Audio Sampling Rate:
8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Smart Feature-set
- Behavior Analysis:
Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
- Line Crossing Detection:
Cross a pre-defined virtual line
- Intrusion Detection:
Enter and loiter in a pre-defined virtual region
- Unattended Baggage:
Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
- Object Removal:
Objects removed from the pre-defined region, such as the exhibits on display.
- Exception Detections:
Scene change detection
- Recognition:
Face Detection
General
- Operating Conditions:
-30oC to 60oC (-22oF to 140oF)
Humidity 95% or less (non-condensing)
- Power Supply:
12 VDC +/- 25%, PoE (802.3af Class3)
- Power Consumption:
12 VDC, 0.5 A, max. 5.5 W
PoE (802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7 W
- Impact Protection:
IK10
- Weather Proof:
IP67
- IR Range:
Up to 30m
Item Dimension (L inchxW inchxH inch)
5 x 6 x 6
Weight
2.00lb
Warranty Information
3 Years
