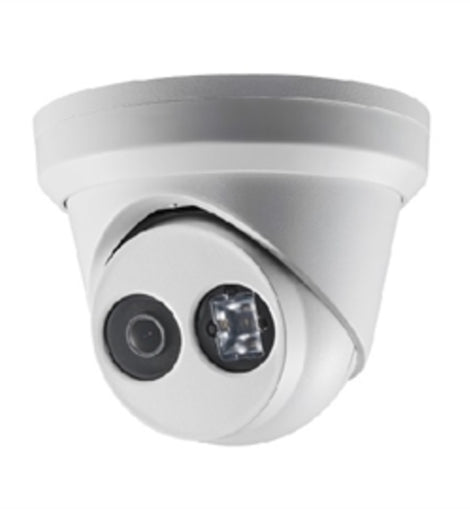

Hikvision Camera DS-2CD2343G0-I 2.8mm Turret IP67 4MP 2.8MM WDR POE/12 Retail
4 MP IR Fixed Turret Network Camera
o 1/3" Progressive Scan CMOS
o 2688 x1520@30fps
o 2.8mm fixed lens
o Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
o H.265+, H.265, H.264+, H.264
o Three streams
o 120dB WDR
o 2 Behavior analyses, and face detection
o BLC/3D DNR/ROI
o IP67
o Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
o 3-Axis adjustment
Camera
- Image Sensor:
1/3" Progressive Scan CMOS
- Signal System:
PAL/NTSC
- Min. Illumination:
Color: 0.01 Lux at (F1.2, AGC ON), 0.018 Lux at (F1.6, AGC ON), 0 Lux with IR
- Shutter time:
1/3 s to 1/100,000 s
- Slow shutter:
Support
- Lens:
2.8 mm at F1.6: horizontal FOV: 103o, vertical FOV: 58o, diagonal FOV: 123o
- Lens Mount:
M12
- Adjustment Range:
Pan: 0o to 360o, tilt: 0o to 75o, rotate: 0o to 360o
- Day and Night:
IR cut filter with auto switch
- Wide Dynamic Range:
120 dB
- Digital noise reduction:
3D DNR
- Focus:
Fixed
Compression Standard
- Video Compression:
H.265+/H.265/H.264+/H.264/MJPEG
- Video bit rate:
256Kbps - 16Mbps
- Triple Streams:
Yes
- Max. Image Resolution:
2688 x 1520
- Frame Rate:
50Hz:25fps (2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080)
60Hz: 30fps (2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080)
- Sub Stream:
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
- Third Stream:
50Hz: 25fps (1280 x 720, 640 x 360, 352 x 288)
60Hz: 30fps (1280 x 720, 640 x 360, 352 x 240)
- Image Enhancement:
BLC/3D DNR/BLC
- Image Settings:
Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
- Target Cropping:
No
- ROI:
1 fixed region for main stream and sub-stream
- Day/Night Switch:
Day/Night/Auto/Schedule
Network
- Network Storage:
microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
- Alarm Trigger:
Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
- Protocols:
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
- General Function:
One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
- System Compatibility:
ONVIF (Profile S, Profile G),ISAPI
Interface
- Communication Interface:
1 RJ45 10M / 100M Ethernet interface
- On-board storage:
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
- Reset Button:
Yes
Smart Feature-set
- Behavior Analysis:
Line crossing detection, intrusion detection
- Line Crossing Detection:
Cross a pre-defined virtual line
- Intrusion Detection:
Enter and loiter in a pre-defined virtual region
- Recognition:
Face Detection
General
- Operating Conditions:
-30 oC - 60 oC (-22 oF - 140 oF)
Humidity 95% or less (non-condensing)
- Power Supply:
12 VDC +/- 25%, PoE (802.3af Class3)
- Power Consumption:
12 VDC, 0.5 A, max. 6W
PoE: (802.3af, 37V to 57V), 0.2 A to 0.1 A, max. 7.5W
- Weather Proof:
IP67
- IR Range:
Up to 30m
Item Dimension(L inchxW inchxH inch)
6 x 6 x 6
Weight
2.00lb
Warranty Information
NA
o 1/3" Progressive Scan CMOS
o 2688 x1520@30fps
o 2.8mm fixed lens
o Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
o H.265+, H.265, H.264+, H.264
o Three streams
o 120dB WDR
o 2 Behavior analyses, and face detection
o BLC/3D DNR/ROI
o IP67
o Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
o 3-Axis adjustment
Camera
- Image Sensor:
1/3" Progressive Scan CMOS
- Signal System:
PAL/NTSC
- Min. Illumination:
Color: 0.01 Lux at (F1.2, AGC ON), 0.018 Lux at (F1.6, AGC ON), 0 Lux with IR
- Shutter time:
1/3 s to 1/100,000 s
- Slow shutter:
Support
- Lens:
2.8 mm at F1.6: horizontal FOV: 103o, vertical FOV: 58o, diagonal FOV: 123o
- Lens Mount:
M12
- Adjustment Range:
Pan: 0o to 360o, tilt: 0o to 75o, rotate: 0o to 360o
- Day and Night:
IR cut filter with auto switch
- Wide Dynamic Range:
120 dB
- Digital noise reduction:
3D DNR
- Focus:
Fixed
Compression Standard
- Video Compression:
H.265+/H.265/H.264+/H.264/MJPEG
- Video bit rate:
256Kbps - 16Mbps
- Triple Streams:
Yes
- Max. Image Resolution:
2688 x 1520
- Frame Rate:
50Hz:25fps (2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080)
60Hz: 30fps (2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080)
- Sub Stream:
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
- Third Stream:
50Hz: 25fps (1280 x 720, 640 x 360, 352 x 288)
60Hz: 30fps (1280 x 720, 640 x 360, 352 x 240)
- Image Enhancement:
BLC/3D DNR/BLC
- Image Settings:
Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
- Target Cropping:
No
- ROI:
1 fixed region for main stream and sub-stream
- Day/Night Switch:
Day/Night/Auto/Schedule
Network
- Network Storage:
microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
- Alarm Trigger:
Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
- Protocols:
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
- General Function:
One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
- System Compatibility:
ONVIF (Profile S, Profile G),ISAPI
Interface
- Communication Interface:
1 RJ45 10M / 100M Ethernet interface
- On-board storage:
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
- Reset Button:
Yes
Smart Feature-set
- Behavior Analysis:
Line crossing detection, intrusion detection
- Line Crossing Detection:
Cross a pre-defined virtual line
- Intrusion Detection:
Enter and loiter in a pre-defined virtual region
- Recognition:
Face Detection
General
- Operating Conditions:
-30 oC - 60 oC (-22 oF - 140 oF)
Humidity 95% or less (non-condensing)
- Power Supply:
12 VDC +/- 25%, PoE (802.3af Class3)
- Power Consumption:
12 VDC, 0.5 A, max. 6W
PoE: (802.3af, 37V to 57V), 0.2 A to 0.1 A, max. 7.5W
- Weather Proof:
IP67
- IR Range:
Up to 30m
Item Dimension(L inchxW inchxH inch)
6 x 6 x 6
Weight
2.00lb
Warranty Information
NA
